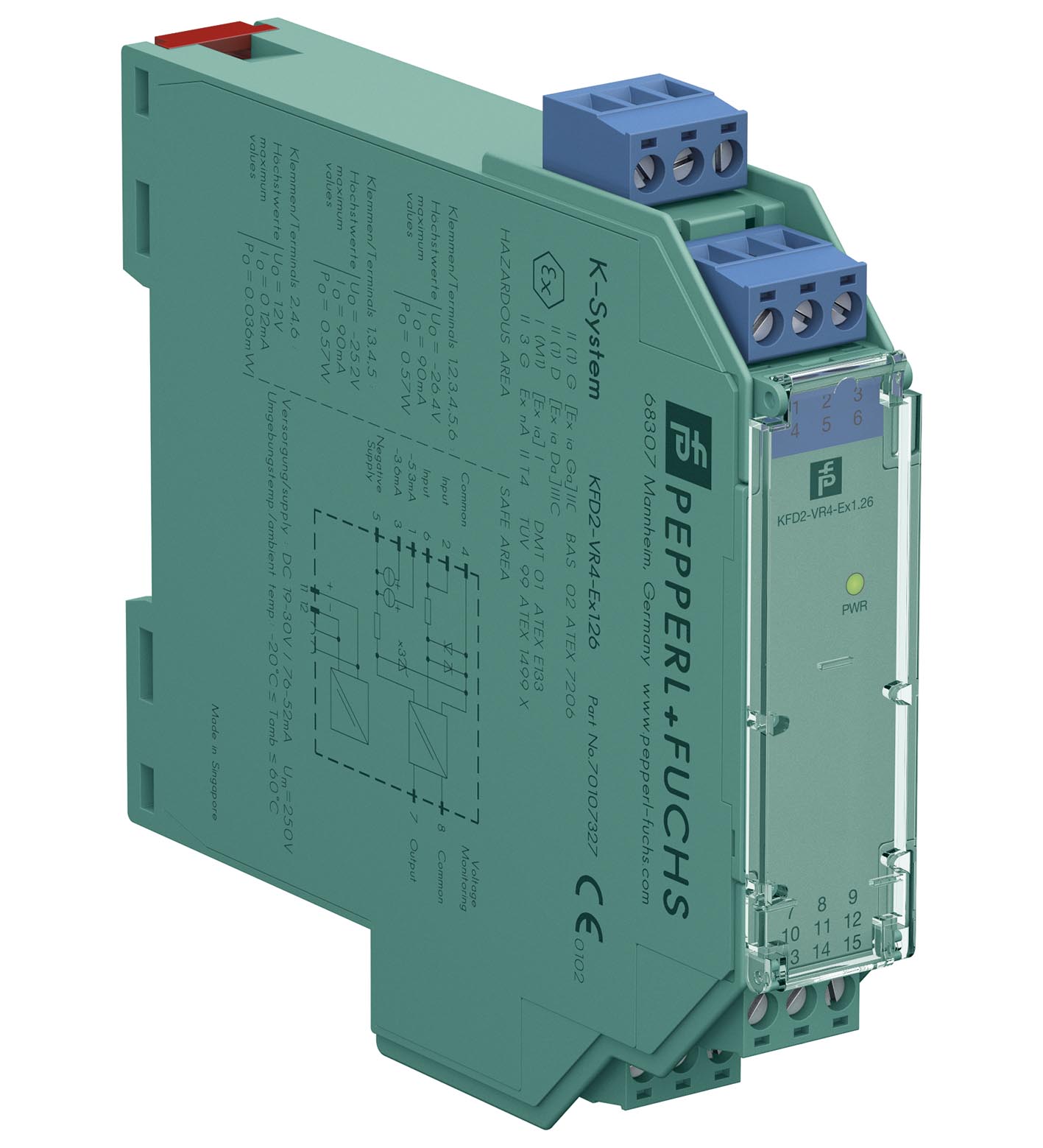

TECHNICAL DATA
规格参数
General specifications
| Signal type | Analog input |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |
| Connection | Power Rail or terminals 11+, 12- |
| Rated voltage | 19 ... 30 V DC |
| Ripple | within the supply tolerance |
| Power dissipation | ≤ 1.2 W |
| Power consumption | ≤ 1.6 W |
| Connection side | field side |

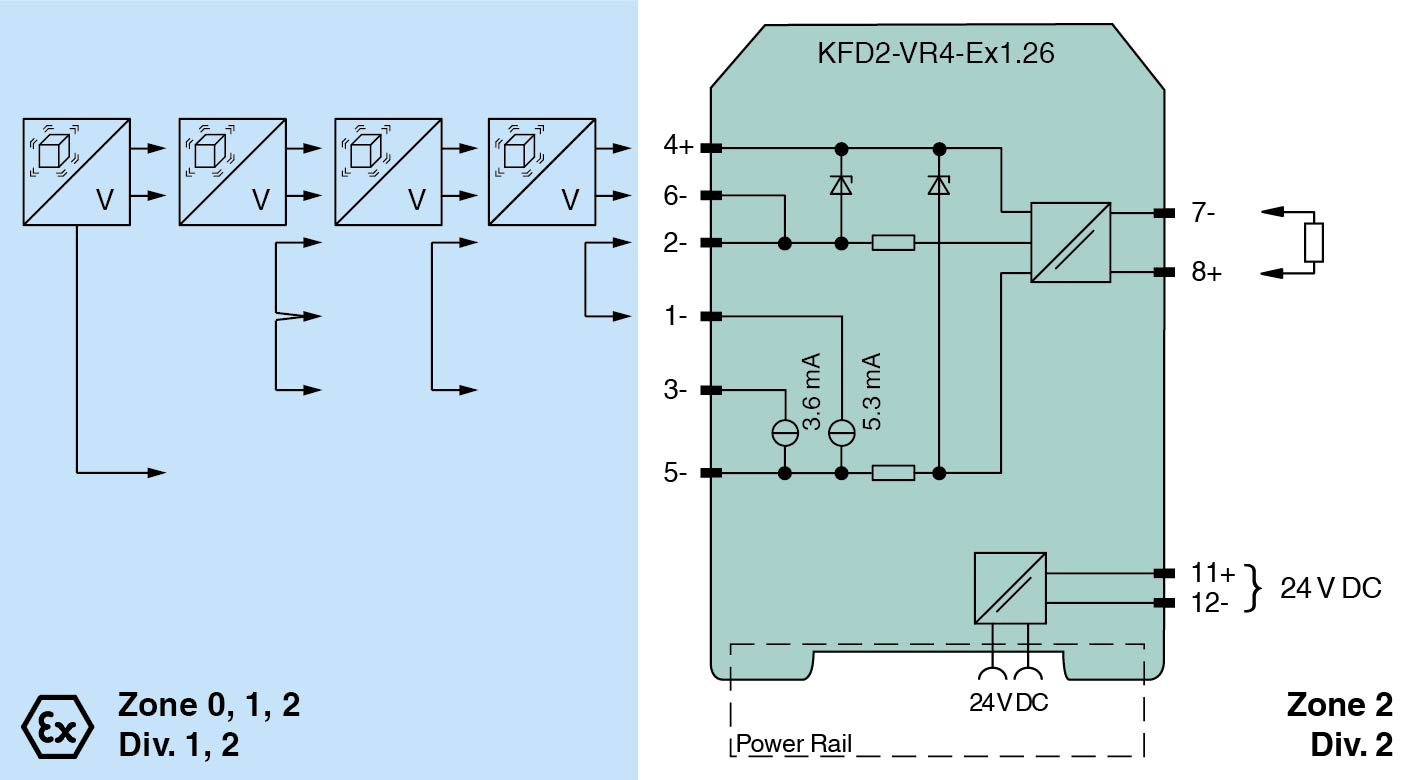

| Connection | terminals 4 (common), 1, 3 and 5 (supply -), 2 and 6 (signal -) |
| Input resistance | 10 kΩ terminals 4 (common), 6-/2- |
| Output current | terminals 4 (common), 5-: > 10 mA at -21 V or > 20 mA at -18 Vterminals 4 (common), 1-: 5.3 mA ±0.4 mA at -10 Vterminals 4 (common), 3-: 3.6 mA ±0.7 mA at -10 V, 20 °C (68 °F) |
| Transmission range | -20 ... 0 V |
| Connection side | control side |
| Connection | terminals 7-, 8+ |
| Voltage | -20 ... 0 V |
| Load | ≥ 9 kΩ (3-wire sensor), ≥ 2 kΩ (2-wire sensor) |
| Output resistance | 24 Ω typ., 27 Ω maximum Since this is much less than the end-to-end resistance of a zener barrier, it may be necessary to specify a monitor intended for use without a barrier. Please follow the advice of the monitor manufacturer. |
| Cut-off frequency | 10 kHz (-0,1 dB) 20 kHz (-1 dB) |
| Deviation | DC transfer error (with 10 kΩ load) < 10mV |
| After calibrationadditional error with AC superimposed is ±5 mV at 20 °C (68 °F) at any point within the span, provided that the alternating component of the input voltage is not excessive, e. g.- square waves (0 ... 20 kHz): 5 Vpp- sine waves (0 ... 20 kHz): the full span of 20 Vpp (= 100 g peak acceleration at 100 mV/g) is acceptable.Influence of ambient temperature(< 100 ppm of span)/K at any point within the span | After calibrationadditional error with AC superimposed is ±5 mV at 20 °C (68 °F) at any point within the span, provided that the alternating component of the input voltage is not excessive, e. g.- square waves (0 ... 20 kHz): 5 Vpp- sine waves (0 ... 20 kHz): the full span of 20 Vpp (= 100 g peak acceleration at 100 mV/g) is acceptable.Influence of ambient temperature(< 100 ppm of span)/K at any point within the span |
| Time delay relative to input | 7.1 ±0.3 µs |
| Ripple | in 200 kHz bandwidth < 20 mVrmsin 20 kHz bandwidth < 3 mVrms |
| After calibration | additional error with AC superimposed is ±5 mV at 20 °C (68 °F) at any point within the span, provided that the alternating component of the input voltage is not excessive, e. g.- square waves (0 ... 20 kHz): 5 Vpp- sine waves (0 ... 20 kHz): the full span of 20 Vpp (= 100 g peak acceleration at 100 mV/g) is acceptable. |
| Influence of ambient temperature | (< 100 ppm of span)/K at any point within the span |
| Output/power supply | functional insulation, rated insulation voltage 50 V AC |
| Display elements | LED |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2017 EN IEC 61326-3-2:2018 |
| Degree of protection | IEC 60529 |
| Protection against electrical shock | UL 61010-1 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 125 g |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| EU-type examination certificate | BAS 02 ATEX 7206 |
| Marking II (1)G [Ex ia Ga] IIC , [exsign] II (1)D [Ex ia Da] IIICInputEx ia Ga, Ex ia DaVoltageUo-26.4 VCurrentIo90 mAPowerPo570 mW | Marking II (1)G [Ex ia Ga] IIC , [exsign] II (1)D [Ex ia Da] IIICInputEx ia Ga, Ex ia DaVoltageUo-26.4 VCurrentIo90 mAPowerPo570 mW |
| Supply | Supply |
| Maximum safe voltageUm253 V (Attention! The rated voltage can be lower.) | Maximum safe voltageUm253 V (Attention! The rated voltage can be lower.) |
| Output | Output |
| Maximum safe voltageUm253 V (Attention! The rated voltage is lower.) | Maximum safe voltageUm253 V (Attention! The rated voltage is lower.) |
| EU-type examination certificate | DMT 01 ATEX E 133 |
| Marking I (M1) [Ex ia] I | Marking I (M1) [Ex ia] I |
| Certificate | TÜV 99 ATEX 1499 X |
| Marking II 3G Ex nA II T4 | Marking II 3G Ex nA II T4 |
| Galvanic isolation | Galvanic isolation |
| Input/Outputsafe galvanic isolation acc. to IEC 60079-11, voltage peak value 375 VInput/power supplysafe galvanic isolation acc. to IEC 60079-11, voltage peak value 375 V | Input/Outputsafe galvanic isolation acc. to IEC 60079-11, voltage peak value 375 VInput/power supplysafe galvanic isolation acc. to IEC 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010 , EN 50303:2000 | Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010 , EN 50303:2000 |
| Marking | II (1)G [Ex ia Ga] IIC , [exsign] II (1)D [Ex ia Da] IIIC |
| Input | Ex ia Ga, Ex ia Da |
| Voltage | -26.4 V |
| Current | 90 mA |
| Power | 570 mW |
| Maximum safe voltage | 253 V (Attention! The rated voltage can be lower.) |
| Maximum safe voltage | 253 V (Attention! The rated voltage is lower.) |
| Marking | I (M1) [Ex ia] I |
| Marking | II 3G Ex nA II T4 |
| Input/Output | safe galvanic isolation acc. to IEC 60079-11, voltage peak value 375 V |
| Input/power supply | safe galvanic isolation acc. to IEC 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010 , EN 50303:2000 |
| UL approval | UL approval |
| Control drawing116-0316 (cULus) | Control drawing116-0316 (cULus) |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx BAS 05.0078 IECEx BAS 10.0085XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] IEx nA II T4 Gc | IECEx certificateIECEx BAS 05.0078 IECEx BAS 10.0085XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] IEx nA II T4 Gc |
| Control drawing | 116-0316 (cULus) |
| IECEx certificate | IECEx BAS 05.0078 IECEx BAS 10.0085X |
| IECEx marking | [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] IEx nA II T4 Gc |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
