KFU8-CRG2-1.D

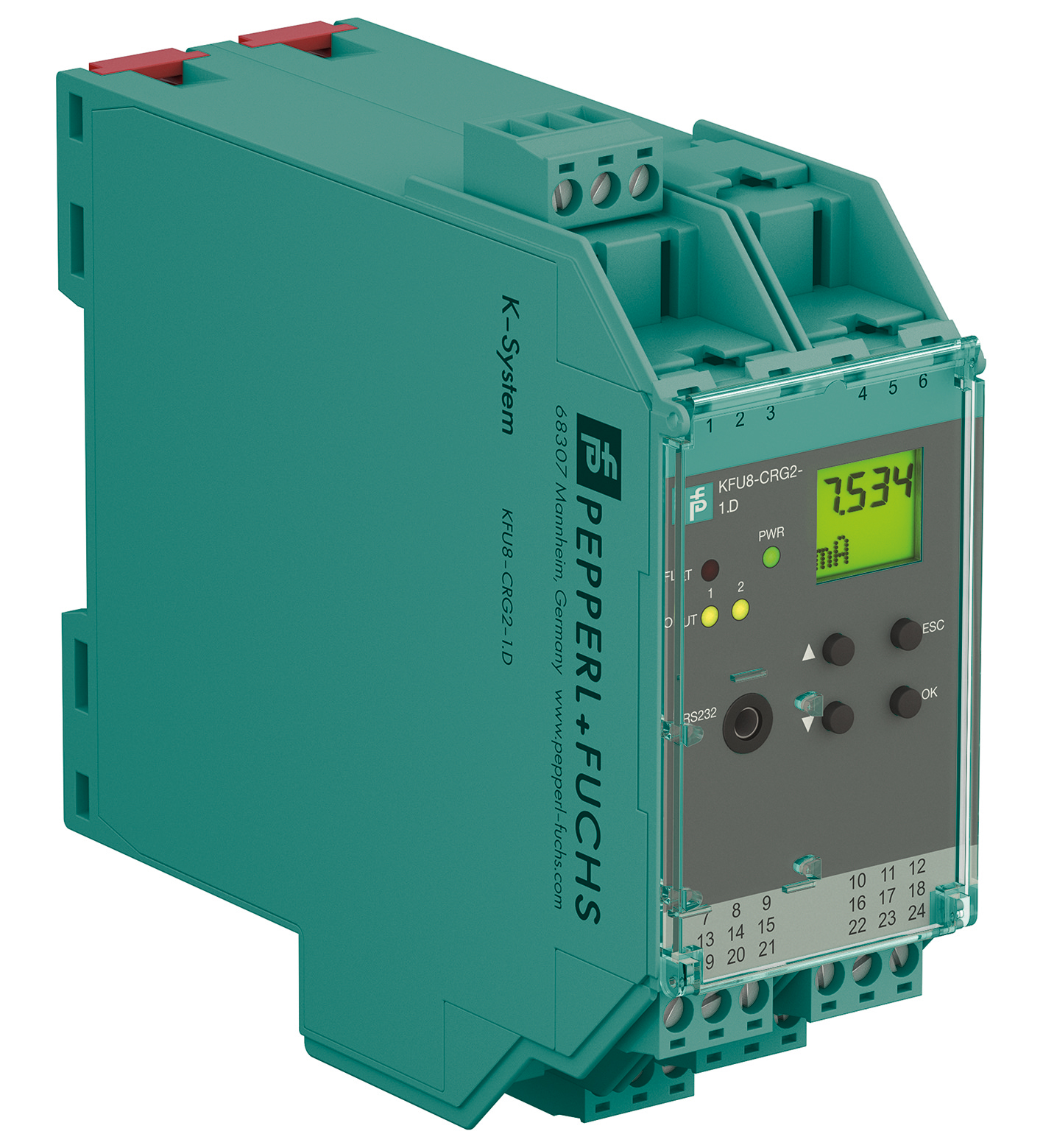

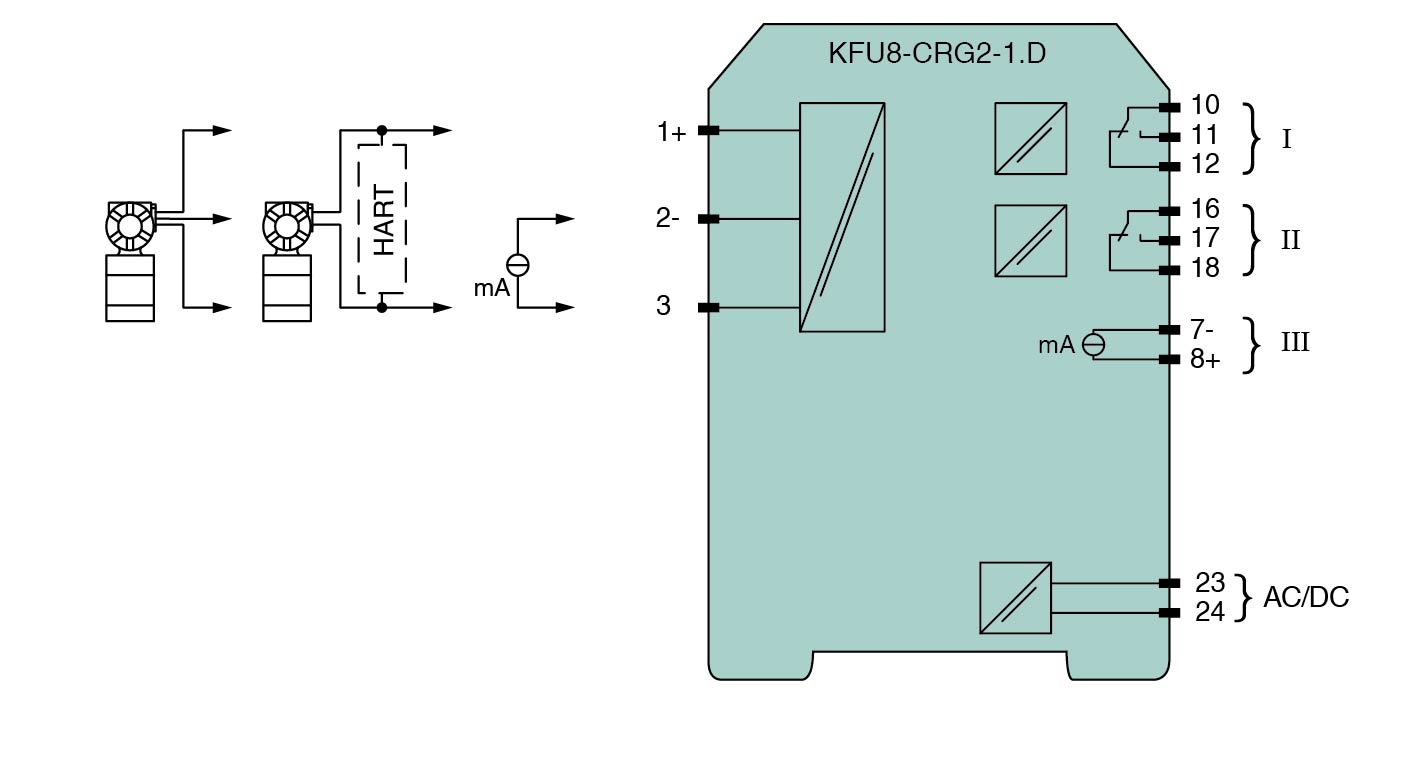

KFU8-CRG2-1.D Transmitter Power Supply

订货号: 255623
产品分类: K 系统（DIN 导轨安装，功能强大）

Transmitter Power Supply

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Safety Integrity Level (SIL)	SIL 2
Connection	terminals 23, 24
Rated voltage	20 ... 90 V DC or 48 ... 253 V AC
Power dissipation	2 W / 3 VA
Power consumption	2.2 W / 4 VA
Programming interface	programming socket
Connection side	field side
Connection	terminals 1, 2, 3
Input I	Input I
Input signal0/4 ... 20 mAAvailable voltage> 15 V at 20 mAOpen circuit voltage/short-circuit current24 V / 33 mAInput resistance45 Ω (terminals 2, 3)Line fault detectionbreakage I < 0.2 mA; short-circuit I > 22 mA	Input signal0/4 ... 20 mAAvailable voltage> 15 V at 20 mAOpen circuit voltage/short-circuit current24 V / 33 mAInput resistance45 Ω (terminals 2, 3)Line fault detectionbreakage I < 0.2 mA; short-circuit I > 22 mA
Input signal	0/4 ... 20 mA
Available voltage	> 15 V at 20 mA
Open circuit voltage/short-circuit current	24 V / 33 mA
Input resistance	45 Ω (terminals 2, 3)
Line fault detection	breakage I < 0.2 mA; short-circuit I > 22 mA
Connection side	control side
Connection	output I: terminals 10, 11, 12 output II: terminals 16, 17, 18 Output: analog terminals 8+, 7-
Output signal	0 ... 20 mA or 4 ... 20 mA
Output I, II	signal, relay
Contact loading250 V AC / 2 A / cos φ ≥ 0.7 ; 40 V DC / 2 AMechanical life5 x 107 switching cycles	Contact loading250 V AC / 2 A / cos φ ≥ 0.7 ; 40 V DC / 2 AMechanical life5 x 107 switching cycles
Output III	Signal, analog
Current range0 ... 20 mA or 4 ... 20 mAOpen loop voltagemax. 24 V DCLoadmax. 650 ΩFault signaldownscale I ≤ 3.6 mA, upscale I ≥ 21.5 mA (acc. NAMUR NE43)	Current range0 ... 20 mA or 4 ... 20 mAOpen loop voltagemax. 24 V DCLoadmax. 650 ΩFault signaldownscale I ≤ 3.6 mA, upscale I ≥ 21.5 mA (acc. NAMUR NE43)
Energized/De-energized delay	0 ... 250 s , adjustable
Contact loading	250 V AC / 2 A / cos φ ≥ 0.7 ; 40 V DC / 2 A
Mechanical life	5 x 107 switching cycles
Current range	0 ... 20 mA or 4 ... 20 mA
Open loop voltage	max. 24 V DC
Load	max. 650 Ω
Fault signal	downscale I ≤ 3.6 mA, upscale I ≥ 21.5 mA (acc. NAMUR NE43)
Input I	Input I
Accuracy< 30 µAInfluence of ambient temperature0.003 %/K (30 ppm)	Accuracy< 30 µAInfluence of ambient temperature0.003 %/K (30 ppm)
Output I, II	Output I, II
Response delay≤ 200 ms at bounce from 0 ... 20 mA	Response delay≤ 200 ms at bounce from 0 ... 20 mA
Output III	Output III
Resolution≤ 10 µAAccuracy< 20 µAInfluence of ambient temperature0.005 %/K (50 ppm)Reaction time< 650 ms at bounce from 0 ... 20 mA at the input, 90 % of output full-scale value	Resolution≤ 10 µAAccuracy< 20 µAInfluence of ambient temperature0.005 %/K (50 ppm)Reaction time< 650 ms at bounce from 0 ... 20 mA at the input, 90 % of output full-scale value
Accuracy	< 30 µA
Influence of ambient temperature	0.003 %/K (30 ppm)
Response delay	≤ 200 ms at bounce from 0 ... 20 mA
Resolution	≤ 10 µA
Accuracy	< 20 µA
Influence of ambient temperature	0.005 %/K (50 ppm)
Reaction time	< 650 ms at bounce from 0 ... 20 mA at the input, 90 % of output full-scale value
Input/Other circuits	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output I, II/other circuits	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Mutual output I, II, III	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output III/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Interface/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	LEDs , display
Control elements	Control panel
Configuration	via operating buttons via PACTware
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010	Directive 2014/35/EUEN 61010-1:2010
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010
Electromagnetic compatibility	NE 21:2006
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	300 g
Dimensions	40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch) (W x H x D) , housing type C2
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
