KFU8-SR-1.3L.V

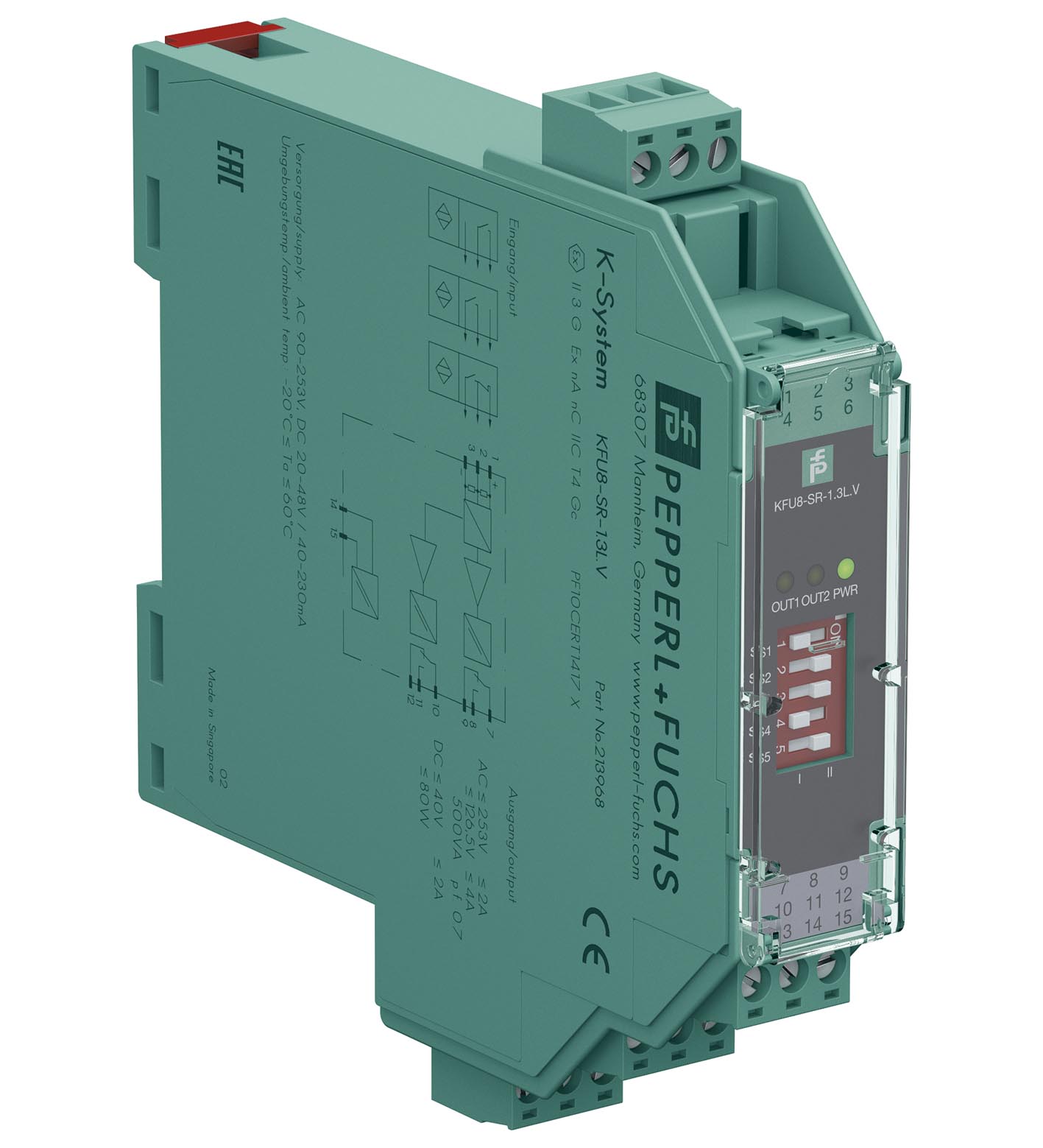

KFU8-SR-1.3L.V Switch Amplifier, Timer Relay

订货号: 213968
产品分类: K 系统（DIN 导轨安装，功能强大）

Switch Amplifier, Timer Relay

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Input
Safety Integrity Level (SIL)	SIL 2
Systematic capability (SC)	SC 3
Connection	terminals 14, 15
Rated voltage	20 ... 48 V DC or 90 ... 253 V AC , 45 ... 65 Hz
Rated current	≤ 230 mA
Power dissipation	2.3 W
Power consumption	max. 4.5 W
Connection side	field side
Connection	terminals 1+, 2, 3-
Rated values	22 ... 24 V DC / 100 mA , see additional information
Short-circuit current	max. 125 mA
Switching point	PNP:0-signal: < 12.5 V1-signal: > 13.5 VNPN and push-pull output: 0-signal: < 4.5 V1-signal: > 5.5 V
Connection side	control side

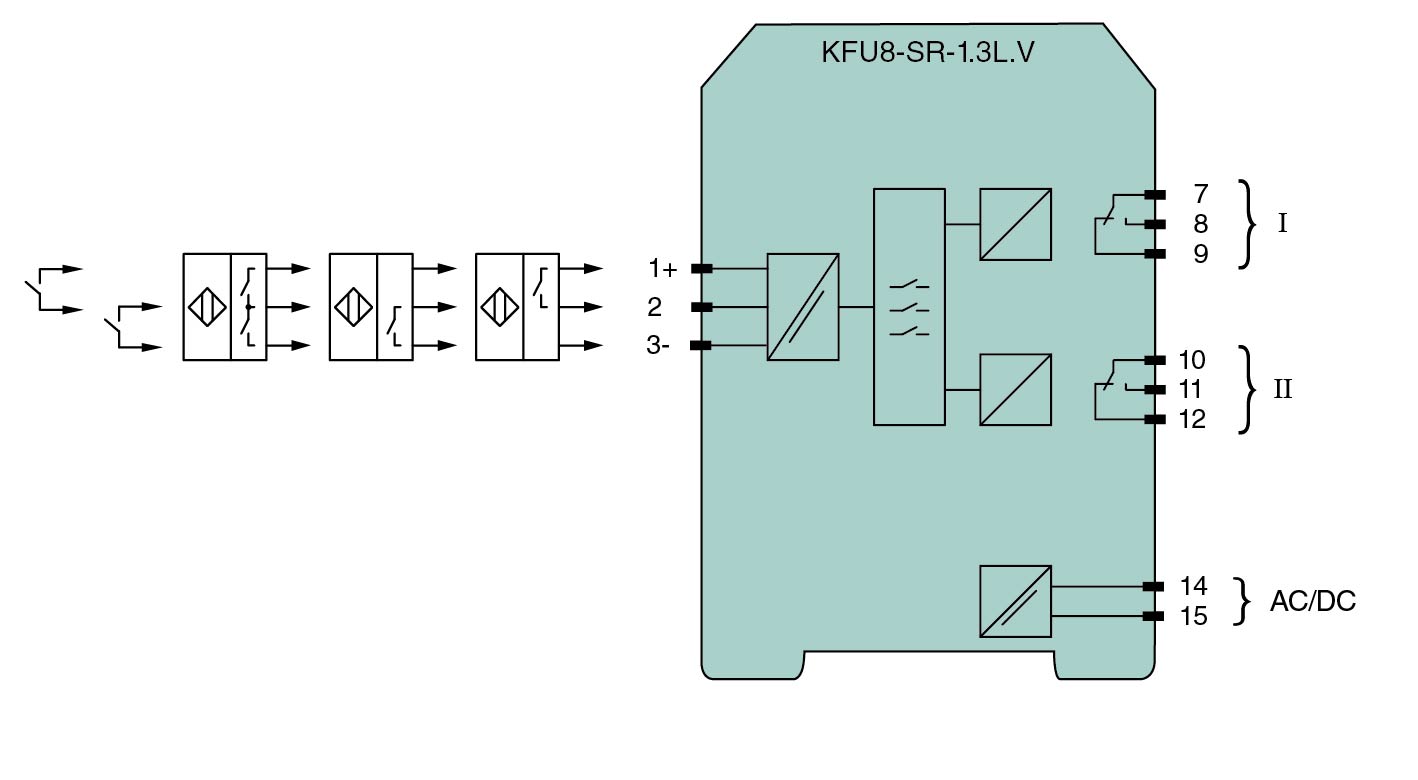

Connection	output I: terminals 7, 8, 9 output II: terminals 10, 11, 12
Output I, II	signal, relay
Contact loading250 V AC / 2 A / cos φ ≥ 0.7 ; 125 V AC/4 A/ cos φ > 0.7 ; 40 V DC / 2 AMechanical life20 x 106 switching cyclesElectrical life0.2 x 106 switching cycles (40 V DC, 2 A, ohmic)0.4 x 106 switching cycles (253 V AC, 2 A, cos φ = 1)0.25 x 106 switching cycles (253 V AC, 2 A, cos φ = 0.7)Minimum load50 mW, 5 V DCEnergized/De-energized delay≤ 90 ms / ≤ 90 ms	Contact loading250 V AC / 2 A / cos φ ≥ 0.7 ; 125 V AC/4 A/ cos φ > 0.7 ; 40 V DC / 2 AMechanical life20 x 106 switching cyclesElectrical life0.2 x 106 switching cycles (40 V DC, 2 A, ohmic)0.4 x 106 switching cycles (253 V AC, 2 A, cos φ = 1)0.25 x 106 switching cycles (253 V AC, 2 A, cos φ = 0.7)Minimum load50 mW, 5 V DCEnergized/De-energized delay≤ 90 ms / ≤ 90 ms
Contact loading	250 V AC / 2 A / cos φ ≥ 0.7 ; 125 V AC/4 A/ cos φ > 0.7 ; 40 V DC / 2 A
Mechanical life	20 x 106 switching cycles
Electrical life	0.2 x 106 switching cycles (40 V DC, 2 A, ohmic)0.4 x 106 switching cycles (253 V AC, 2 A, cos φ = 1)0.25 x 106 switching cycles (253 V AC, 2 A, cos φ = 0.7)
Minimum load	50 mW, 5 V DC
Energized/De-energized delay	≤ 90 ms / ≤ 90 ms
Switching frequency	≤ 5 Hz for delay 0 s adjustable energized/de-energized delay: 0 ... 79 s
Input/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	LEDs
Control elements	DIP switch
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010	Directive 2014/35/EUEN 61010-1:2010
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010
Electromagnetic compatibility	NE 21:2012
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 166 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Height119 mmWidth20 mmDepth115 mm	Height119 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	20 mm
Depth	115 mm
Supply	48 V DC
Certificate	PF 10 CERT 1417 X
Marking II 3G Ex nA nC IIC T4 Gc	Marking II 3G Ex nA nC IIC T4 Gc
Output I, II	Output I, II
Contact loading50 V AC/2 A/cos φ > 0.7; 40 V DC/1 A resistive load	Contact loading50 V AC/2 A/cos φ > 0.7; 40 V DC/1 A resistive load
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010
Marking	II 3G Ex nA nC IIC T4 Gc
Contact loading	50 V AC/2 A/cos φ > 0.7; 40 V DC/1 A resistive load
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-15:2010
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
