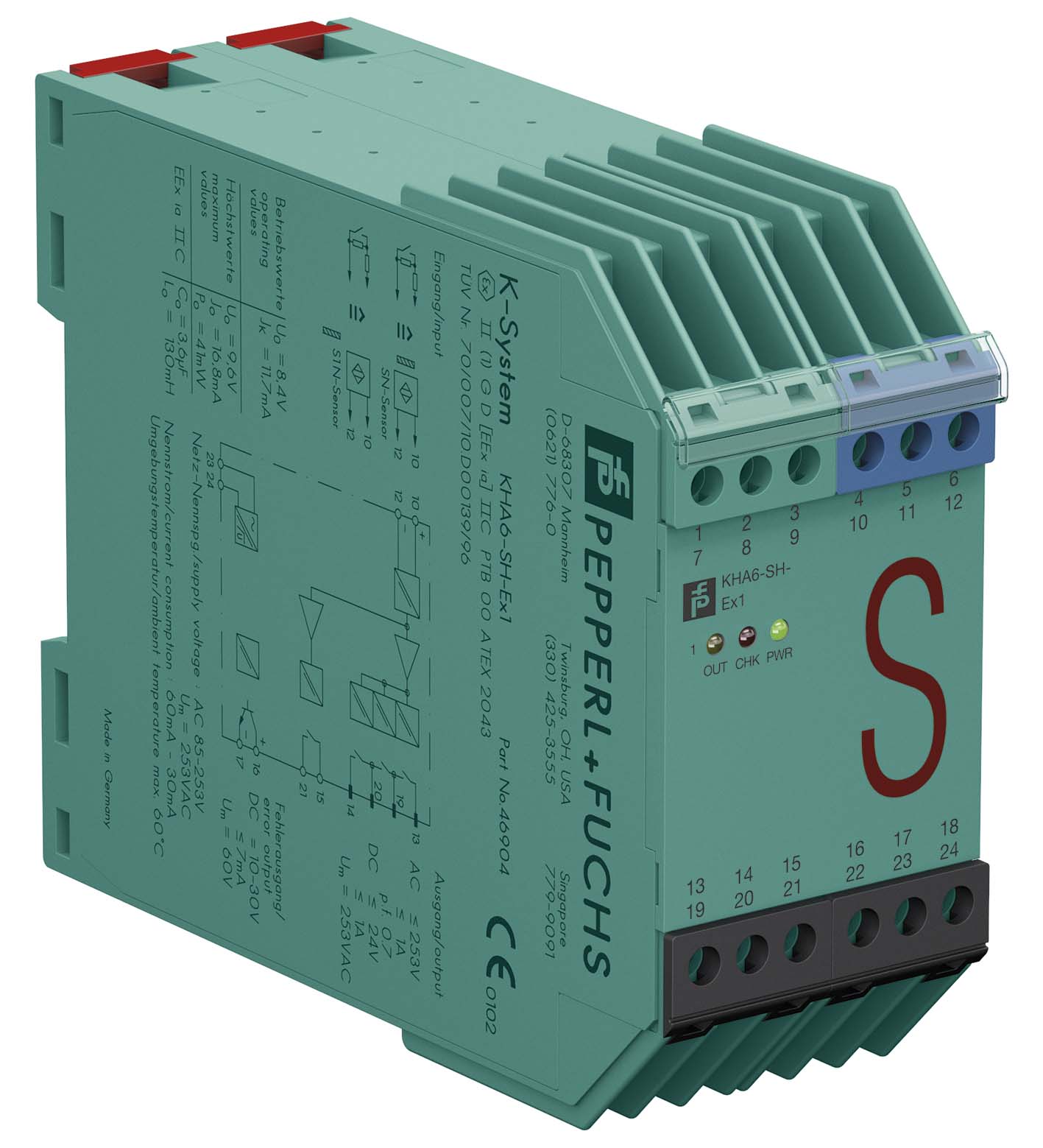

TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Input |
|---|---|
| Safety Integrity Level (SIL) | SIL 3 |
| Systematic capability (SC) | SC 3 |
| Performance level (PL) | PL d |

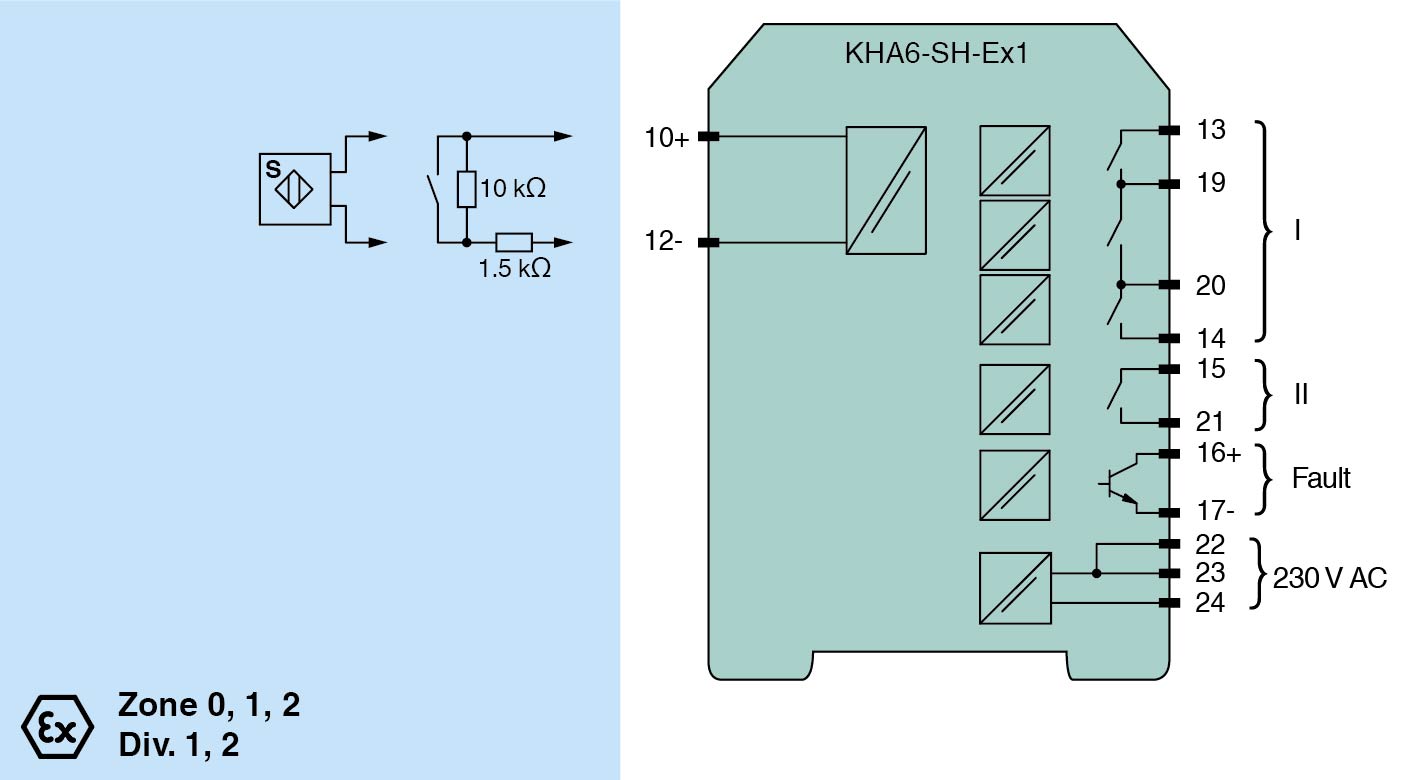

| Connection | terminals 22, 23, 24 |
| Rated voltage | 85 ... 253 V AC , 45 ... 65 Hz |
| Rated current | 30 mA ± 5 mA |
| Power dissipation | 2.2 W |
| Power consumption | max. 2.3 W |
| Connection side | field side |
| Connection | terminals 10+, 12- |
| Open circuit voltage/short-circuit current | approx. 8.4 V DC / approx. 11.7 mA |
| Lead resistance | ≤ 50 Ω, in hazardous area cable capacitances and inductivities are to be taken into account |
| Switching point | Switching point |
| Relay de-energizedI < 2.1 mA and I > 5.9 mARelay energized2.8 mA < I < 5.3 mA | Relay de-energizedI < 2.1 mA and I > 5.9 mARelay energized2.8 mA < I < 5.3 mA |
| Response delay | ≤ 1 ms |
| Relay de-energized | I < 2.1 mA and I > 5.9 mA |
| Relay energized | 2.8 mA < I < 5.3 mA |
| Connection side | control side |
| Connection | output I: terminals 13, 14 ; output II: terminals 15, 21 ; output III: terminals 16+, 17- |
| Output I | relay , signal |
| Contact loading253 V AC/1 A/cos φ ≥ 0.7; 24 V DC/1 A resistive loadMechanical life50 x 106 switching cycles | Contact loading253 V AC/1 A/cos φ ≥ 0.7; 24 V DC/1 A resistive loadMechanical life50 x 106 switching cycles |
| Output II | relay , signal |
| Contact loading253 V AC/1 A/cos φ ≥ 0.7; 24 V DC/1 A resistive loadMechanical life50 x 106 switching cycles | Contact loading253 V AC/1 A/cos φ ≥ 0.7; 24 V DC/1 A resistive loadMechanical life50 x 106 switching cycles |
| Output III | electronic output, passive , fault signal |
| Rated voltage10 ... 30 V DCSignal level1-signal: (L+) -2.5 V (7 mA, short-circuit proof) / 0-signal: blocked output (Leakage current ≤ 10 µA) | Rated voltage10 ... 30 V DCSignal level1-signal: (L+) -2.5 V (7 mA, short-circuit proof) / 0-signal: blocked output (Leakage current ≤ 10 µA) |
| Contact loading | 253 V AC/1 A/cos φ ≥ 0.7; 24 V DC/1 A resistive load |
| Mechanical life | 50 x 106 switching cycles |
| Contact loading | 253 V AC/1 A/cos φ ≥ 0.7; 24 V DC/1 A resistive load |
| Mechanical life | 50 x 106 switching cycles |
| Rated voltage | 10 ... 30 V DC |
| Signal level | 1-signal: (L+) -2.5 V (7 mA, short-circuit proof) / 0-signal: blocked output (Leakage current ≤ 10 µA) |
| Switching frequency | 5 Hz |
| Display elements | LEDs |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1:2010+A1:2019+A1:2019/AC:2019 | Directive 2014/35/EUEN 61010-1:2010+A1:2019+A1:2019/AC:2019 |
| Machinery Directive | Machinery Directive |
| Directive 2006/42/ECEN/ISO 13849-1:2015 | Directive 2006/42/ECEN/ISO 13849-1:2015 |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Directive 2014/35/EU | EN 61010-1:2010+A1:2019+A1:2019/AC:2019 |
| Directive 2006/42/EC | EN/ISO 13849-1:2015 |
| Electromagnetic compatibility | NE 21:2017 , EN 61326-3-1:2017 |
| Degree of protection | IEC 60529:2001 |
| Safety | IEC/EN 61508:2010 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 280 g |
| Dimensions | 40 x 93 x 115 mm (1.6 x 3.7 x 4.5 inch) (W x H x D) , housing type E |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| EU-type examination certificate | PTB 00 ATEX 2043 |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx iaVoltageUo9.56 VCurrentIo16.8 mAPowerPo41 mW (linear characteristic) | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx iaVoltageUo9.56 VCurrentIo16.8 mAPowerPo41 mW (linear characteristic) |
| Supply | Supply |
| Maximum safe voltageUm253 V AC/DC (Attention! The rated voltage can be lower.) | Maximum safe voltageUm253 V AC/DC (Attention! The rated voltage can be lower.) |
| Output | Output |
| Contact loading253 V AC/1 A/cos φ ≥ 0.7; 24 V DC/1 A resistive loadMaximum safe voltageUmoutput I/output II: 253 V AC/DC (Attention! Um is no rated voltage.) | Contact loading253 V AC/1 A/cos φ ≥ 0.7; 24 V DC/1 A resistive loadMaximum safe voltageUmoutput I/output II: 253 V AC/DC (Attention! Um is no rated voltage.) |
| Galvanic isolation | Galvanic isolation |
| Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Input | Ex ia |
| Voltage | 9.56 V |
| Current | 16.8 mA |
| Power | 41 mW (linear characteristic) |
| Maximum safe voltage | 253 V AC/DC (Attention! The rated voltage can be lower.) |
| Contact loading | 253 V AC/1 A/cos φ ≥ 0.7; 24 V DC/1 A resistive load |
| Maximum safe voltage | output I/output II: 253 V AC/DC (Attention! Um is no rated voltage.) |
| Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Input/power supply | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
