KLD0-SAA

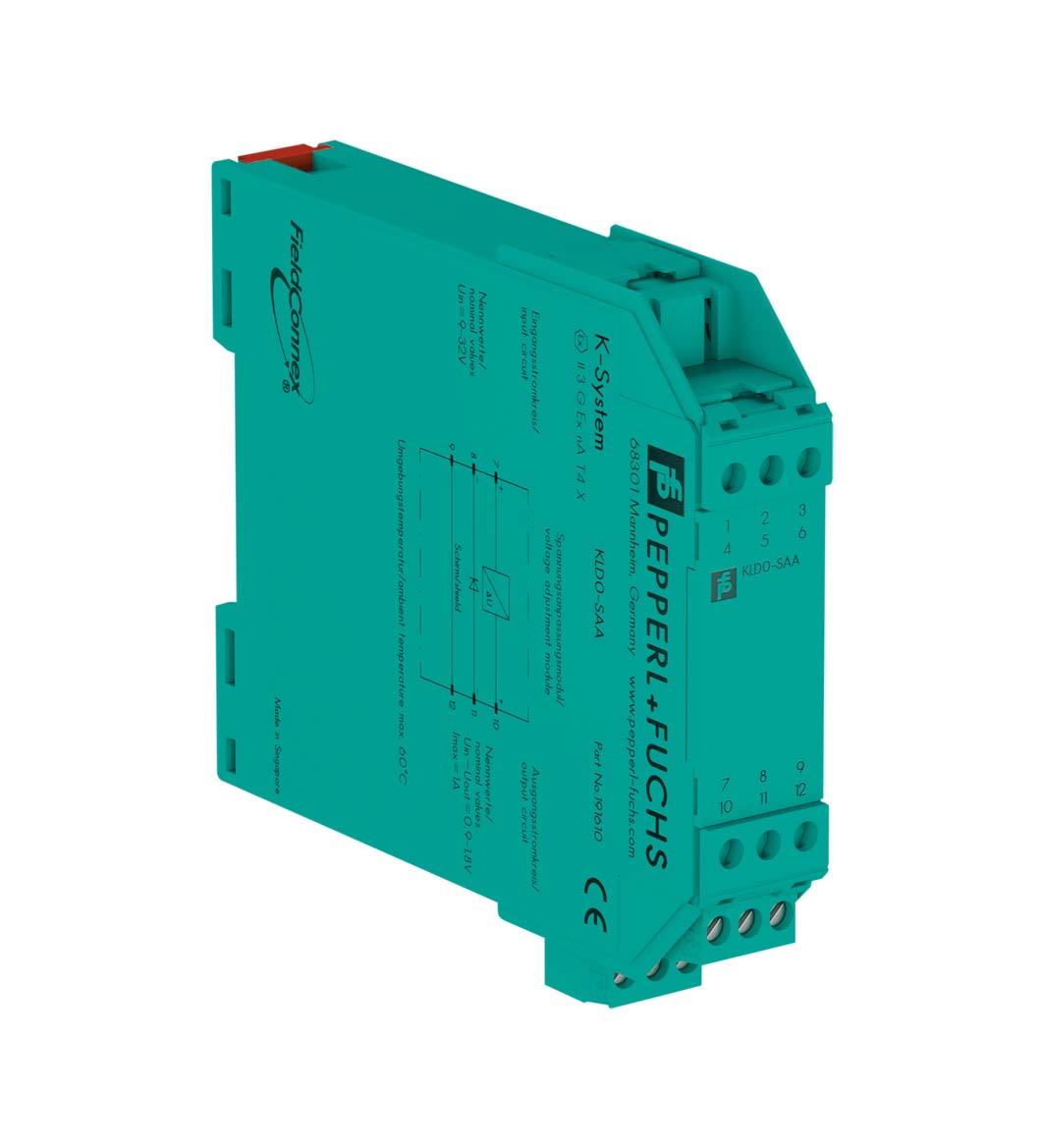

KLD0-SAA Voltage Adjustment ModuleFieldConnex® Fieldbus

订货号: 191610
产品分类: 附件

Module for use with Segment Protectors

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Design / Mounting	Cabinet installation
Installation in hazardous area	Zone 2 / Div. 2
Field-side	Field-side

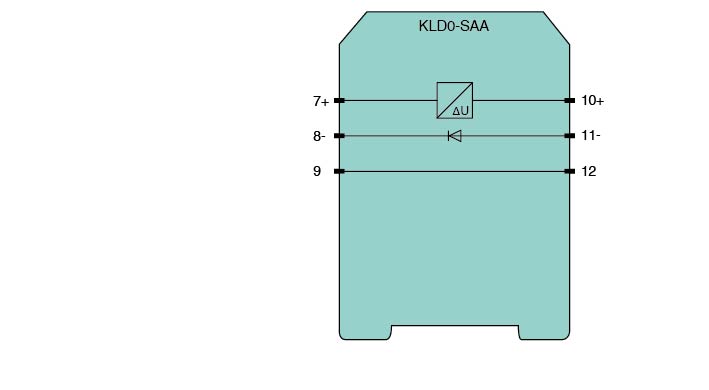

Connectionterminals 10+, 11-, 12SRated voltageUin - Uout 0.9 ... 1.8 VRated currentmax. 1 A	Connectionterminals 10+, 11-, 12SRated voltageUin - Uout 0.9 ... 1.8 VRated currentmax. 1 A
Host-side	Host-side
Connectionterminals 7+, 8-, 9SRated voltage9 ... 32 V DCRated currentmax. 1 APower dissipationmax. 1.8 W	Connectionterminals 7+, 8-, 9SRated voltage9 ... 32 V DCRated currentmax. 1 APower dissipationmax. 1.8 W
Connection	terminals 10+, 11-, 12S
Rated voltage	Uin - Uout 0.9 ... 1.8 V
Rated current	max. 1 A
Connection	terminals 7+, 8-, 9S
Rated voltage	9 ... 32 V DC
Rated current	max. 1 A
Power dissipation	max. 1.8 W
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	< 75 %
Pollution degree	max. 2, according to IEC 60664
Connection type	Terminals
Core cross section	up to 2.5 mm2
Housing	20 mm x 115 mm x 107 mm
Degree of protection	IP20
Mass	approx. 100 g
Mounting	DIN rail mounting
Certificate	PF 16 CERT 1030 X
Marking II 3 G Ex ec IIC T4 Gc	Marking II 3 G Ex ec IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012 , EN 60079-7:2015	Directive 2014/34/EUEN 60079-0:2012 , EN 60079-7:2015
Marking	II 3 G Ex ec IIC T4 Gc
Directive 2014/34/EU	EN 60079-0:2012 , EN 60079-7:2015
Supplementary information	Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
