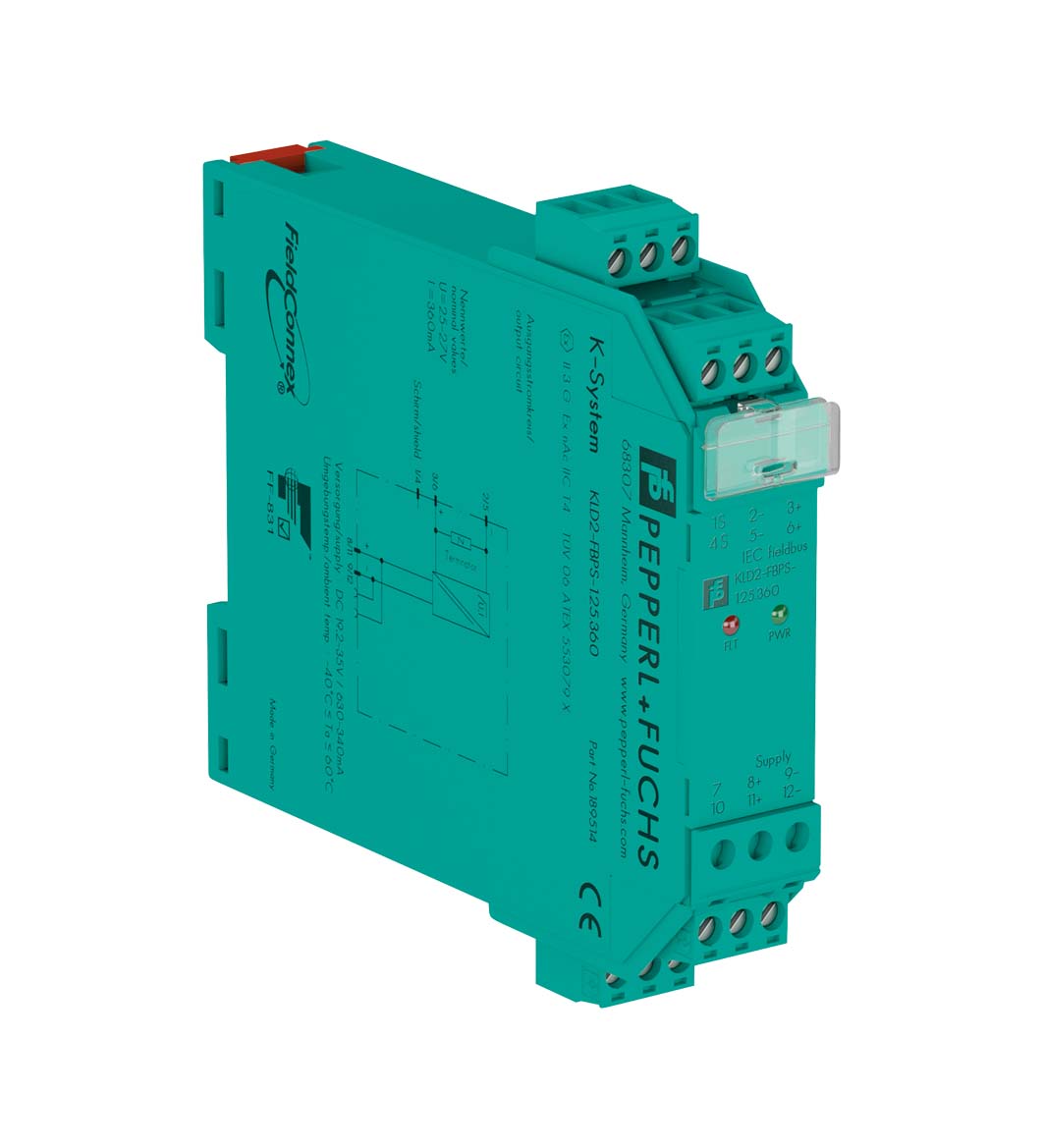

TECHNICAL DATA
规格参数

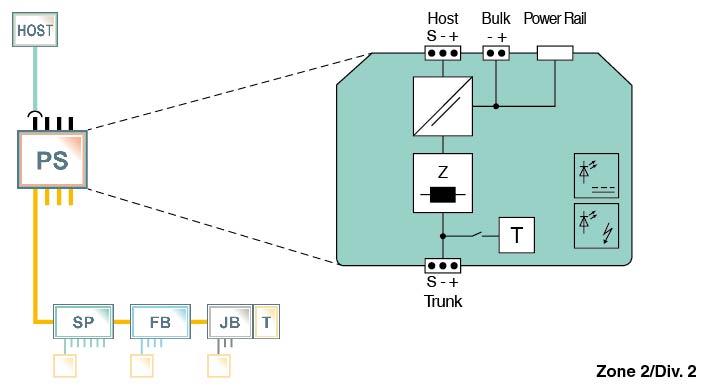

General specifications
| Installation in hazardous area | Zone 2 / Div. 2 |
|---|---|
| Connection | Power Rail or terminals 8+, 11+; 9-, 12- |
| Rated voltage | 10 ... 30 V DC |
| Rated current | 350 ... 120 mA |
| Power dissipation | typ. ≤ 0.5 W |
| Number of segments | 1 |
| Connection | terminals 3+, 6+; 2-, 5-; 1S, 4S (S=screen connection) |
| Rated voltage | 12 ... 13 V |
| Rated current | 220 mA |
| Fieldbus segment/Supply | functional insulation acc. to IEC 62103, rated insulation voltage 250 V AC |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21:2006 |
| Degree of protection | IEC/EN 60529 |
| Fieldbus standard | IEC 61158-2, ISA S 50.02 part 2 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | < 95 % non-condensing |
| Shock resistance | 15 g 11 ms |
| Vibration resistance | 1 g , 10 ... 150 Hz |
| Pollution degree | max. 2, according to IEC 60664 |
| Corrosion resistance | acc. to ISA-S71.04-1985, severity level G3 |
| Connection type | screw terminal , pluggable |
| Core cross section | up to 2.5 mm2 |
| Housing | 20 mm x 115 mm x 107 mm |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | approx. 210 g |
| Mounting | DIN rail mounting |
| Certificate | TÜV 06 ATEX 553079 X |
| Marking II 3G Ex ec IIC T4 Gc | Marking II 3G Ex ec IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012 , EN 60079-7:2015 | Directive 2014/34/EUEN 60079-0:2012 , EN 60079-7:2015 |
| Marking | II 3G Ex ec IIC T4 Gc |
| Directive 2014/34/EU | EN 60079-0:2012 , EN 60079-7:2015 |
| FM approval | FM approval |
| FM certificateFM 19 US 0015 X and FM 19 CA 0011 XFM markingAEx/Ex ec IIC T4 | FM certificateFM 19 US 0015 X and FM 19 CA 0011 XFM markingAEx/Ex ec IIC T4 |
| FM certificate | FM 19 US 0015 X and FM 19 CA 0011 X |
| FM marking | AEx/Ex ec IIC T4 |
| Marine approval | DNV A-14038 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
