LB4106C

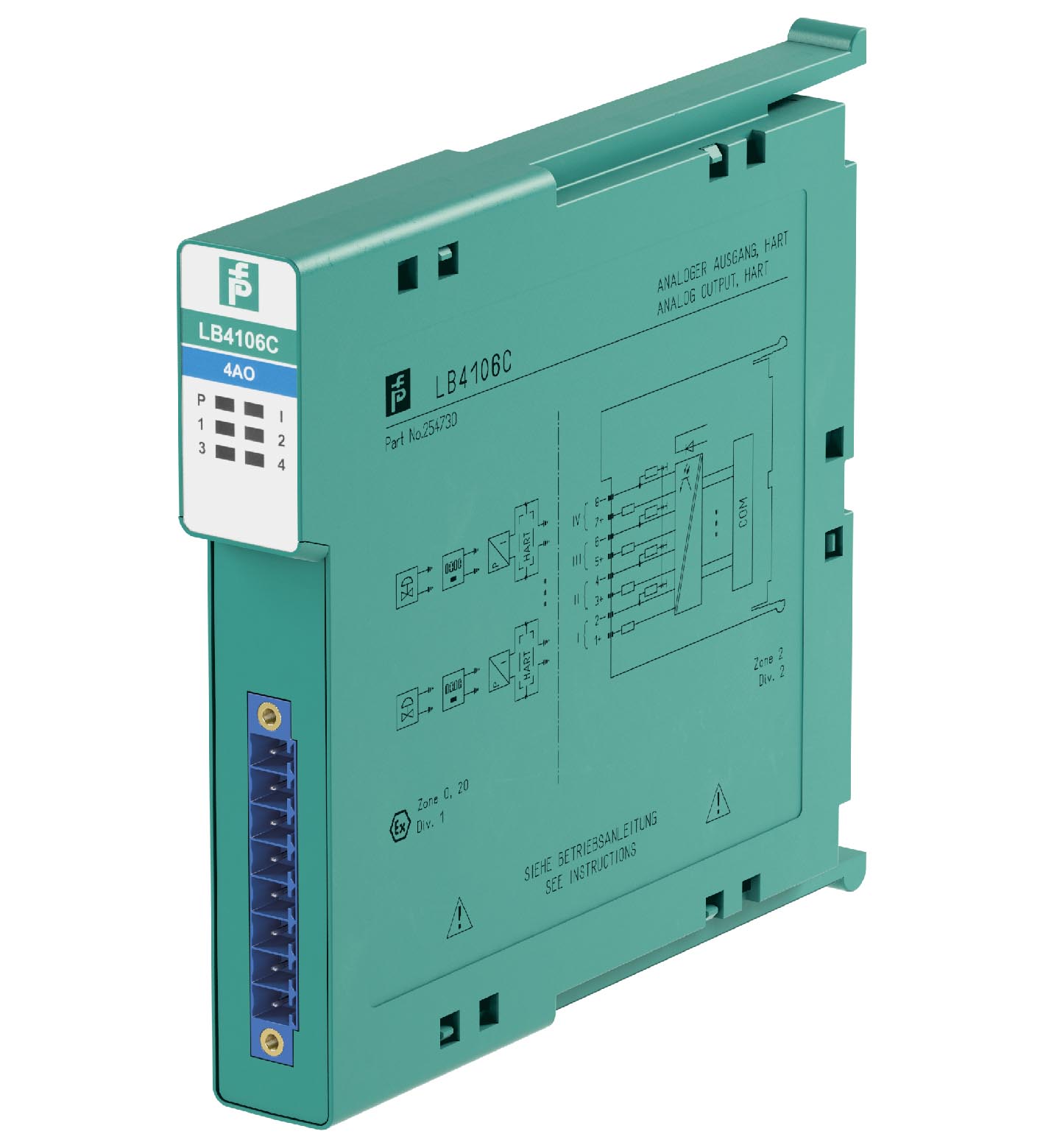

LB4106C HART Output Isolator with Shutdown Input

订货号: 254730
产品分类: LB系列

HART Output Isolator with Shutdown Input

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Slots

Occupied slots	1
Safety Integrity Level (SIL)	SIL 2
Connection	backplane bus
Rated voltage	12 V DC , only in connection with the power supplies LB9***
Power dissipation	2.15 W
Power consumption	3.3 W
Connection	backplane bus
Interface	manufacturer-specific bus to standard com unit
HART communication	yes
HART secondary variable	no
Number of channels	4
Suitable field devices	Suitable field devices
Field deviceProportional ValveField device [2]I/P convertersField device [3]on-site display	Field deviceProportional ValveField device [2]I/P convertersField device [3]on-site display

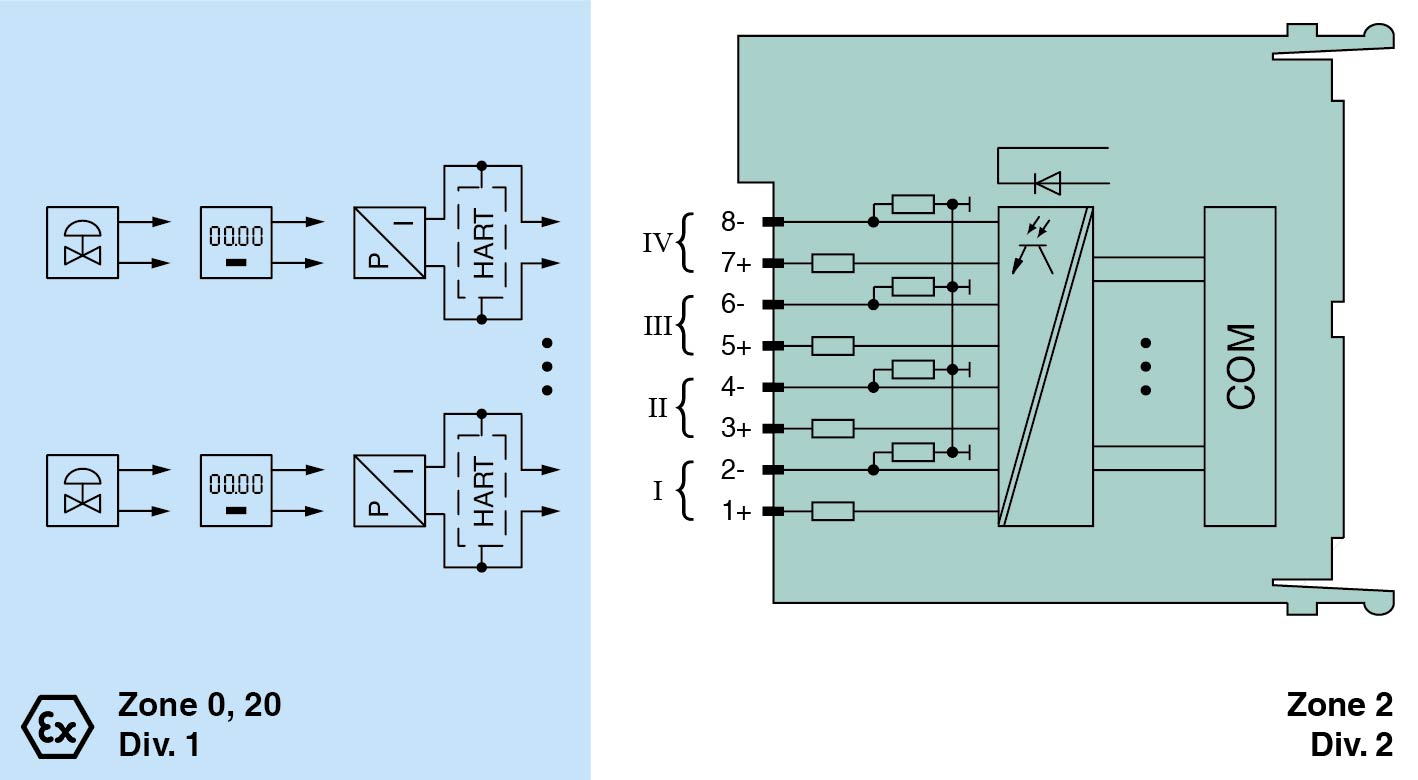

Connection	terminals 1+, 2-; 3+, 4-; 5+, 6-; 7+, 8-
Current	0 ... 26 mA short-circuit protected
Line fault detection	can be switched on/off for each channel via configuration tool , configurable via configuration tool
Short-circuitfactory setting: < 50 Ω configurable between 0 ... 26 mAOpen-circuitdeviation of preset output value > 0.5 mA	Short-circuitfactory setting: < 50 Ω configurable between 0 ... 26 mAOpen-circuitdeviation of preset output value > 0.5 mA
Load	750 Ω max.
HART communication	yes
HART secondary variable	yes
Watchdog	within 0.5 s the device goes in safe state, e.g. after loss of communication
Field device	Proportional Valve
Field device [2]	I/P converters
Field device [3]	on-site display
Short-circuit	factory setting: < 50 Ω configurable between 0 ... 26 mA
Open-circuit	deviation of preset output value > 0.5 mA
Deviation	Deviation
After calibration0.1 % of the signal range at 20 °C (68 °F)Influence of ambient temperature0.1 %/10 K of the signal range	After calibration0.1 % of the signal range at 20 °C (68 °F)Influence of ambient temperature0.1 %/10 K of the signal range
Refresh time	100 ms
After calibration	0.1 % of the signal range at 20 °C (68 °F)
Influence of ambient temperature	0.1 %/10 K of the signal range
LED indication	Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1-4) red: line fault (lead breakage or short circuit)
Coding	optional mechanical coding via front socket
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21:2007
Degree of protection	IEC 60529:2000
Environmental test	EN 60068-2-14:2009
Shock resistance	EN 60068-2-27:2009
Vibration resistance	EN 60068-2-6:2008
Damaging gas	EN 60068-2-42:2003
Relative humidity	EN 60068-2-78:2001
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Altitude	max. 2000 m
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20 when mounted on backplane
Connection	removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2)
Mass	approx. 90 g
Dimensions	Dimensions
Height100 mmWidth16 mmDepth102 mm	Height100 mmWidth16 mmDepth102 mm
Height	100 mm
Width	16 mm
Depth	102 mm
EU-type examination certificate	BVS 11 ATEX E 116 X
Marking II 3(1) G Ex nA [ia Ga] IIC T4 Gc[exsign] I (M1) [Ex ia Ma] I[exsign] II (1) D [Ex ia Da] IIIC	Marking II 3(1) G Ex nA [ia Ga] IIC T4 Gc[exsign] I (M1) [Ex ia Ma] I[exsign] II (1) D [Ex ia Da] IIIC
Output	Output
VoltageUo27 VCurrentIo87 mAPowerPo575 mW (linear characteristic)	VoltageUo27 VCurrentIo87 mAPowerPo575 mW (linear characteristic)
Galvanic isolation	Galvanic isolation
Output/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V	Output/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN IEC 60079-11:2024 EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN IEC 60079-11:2024 EN 60079-15:2010
Marking	II 3(1) G Ex nA [ia Ga] IIC T4 Gc[exsign] I (M1) [Ex ia Ma] I[exsign] II (1) D [Ex ia Da] IIIC
Voltage	27 V
Current	87 mA
Power	575 mW (linear characteristic)
Output/power supply, internal bus	safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN IEC 60079-11:2024 EN 60079-15:2010
ATEX approval	BVS 11 ATEX E 116X
UL approval	E106378
IECEx approval	IECEx approval
IECEx certificateIECEx BVS 11.0068XIECEx markingEx nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I	IECEx certificateIECEx BVS 11.0068XIECEx markingEx nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I
IECEx certificate	IECEx BVS 11.0068X
IECEx marking	Ex nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I
System information	The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
