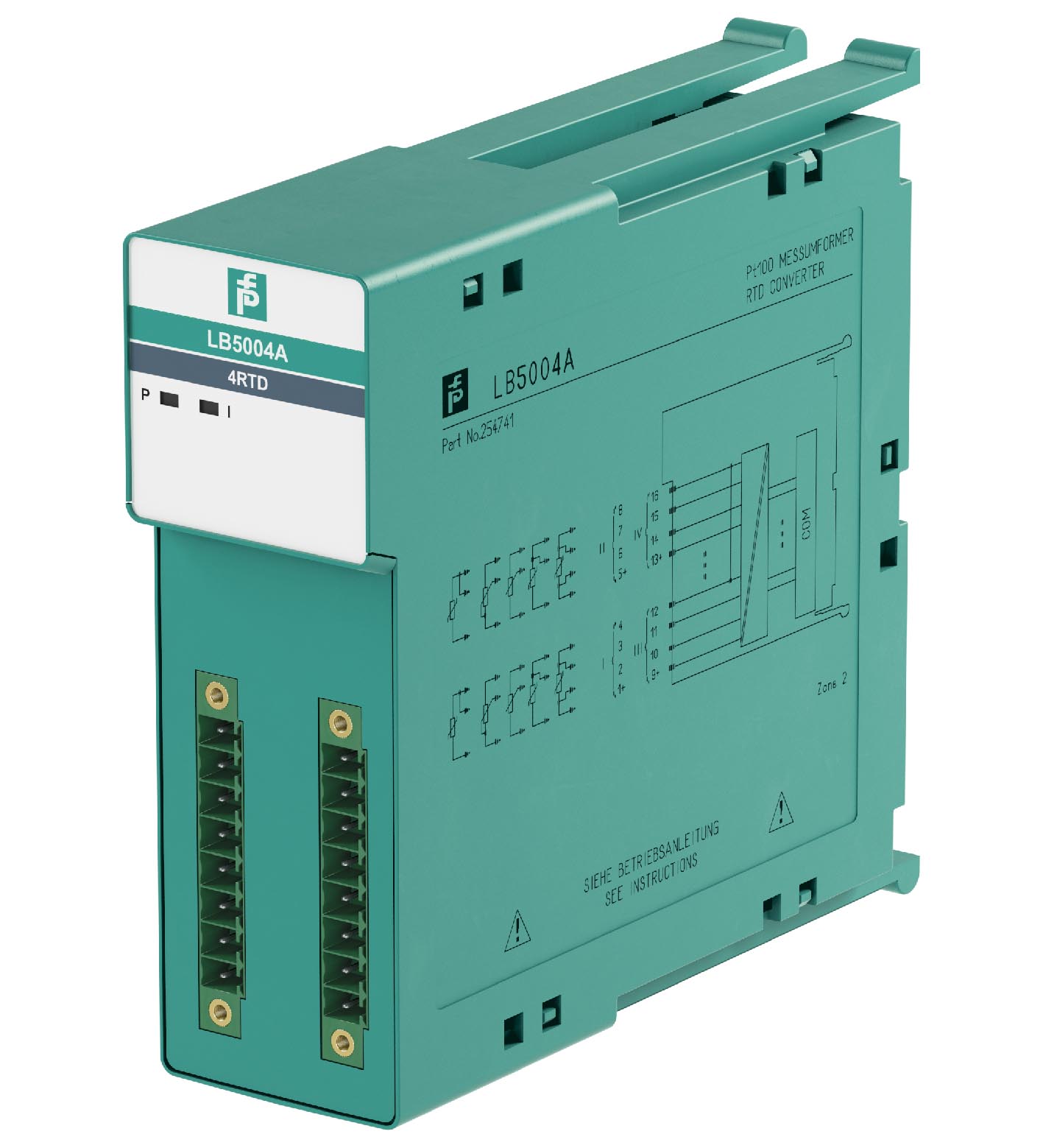

TECHNICAL DATA
规格参数
Slots
| Occupied slots | 2 |
|---|---|
| Connection | backplane bus |
| Rated voltage | 12 V DC , only in connection with the power supplies LB9*** |
| Power dissipation | 0.35 W |
| Power consumption | 0.35 W |
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
| Number of channels | 4 |
| Suitable field devices | Suitable field devices |
| Field deviceresistance thermometerField device [3]slide-wire sensorsField device [5]potentiometer | Field deviceresistance thermometerField device [3]slide-wire sensorsField device [5]potentiometer |
| Field device interface | Field device interface |
| Connection2-wire sensorConnection [2]3-wire sensorConnection [3]4-wire sensor | Connection2-wire sensorConnection [2]3-wire sensorConnection [3]4-wire sensor |

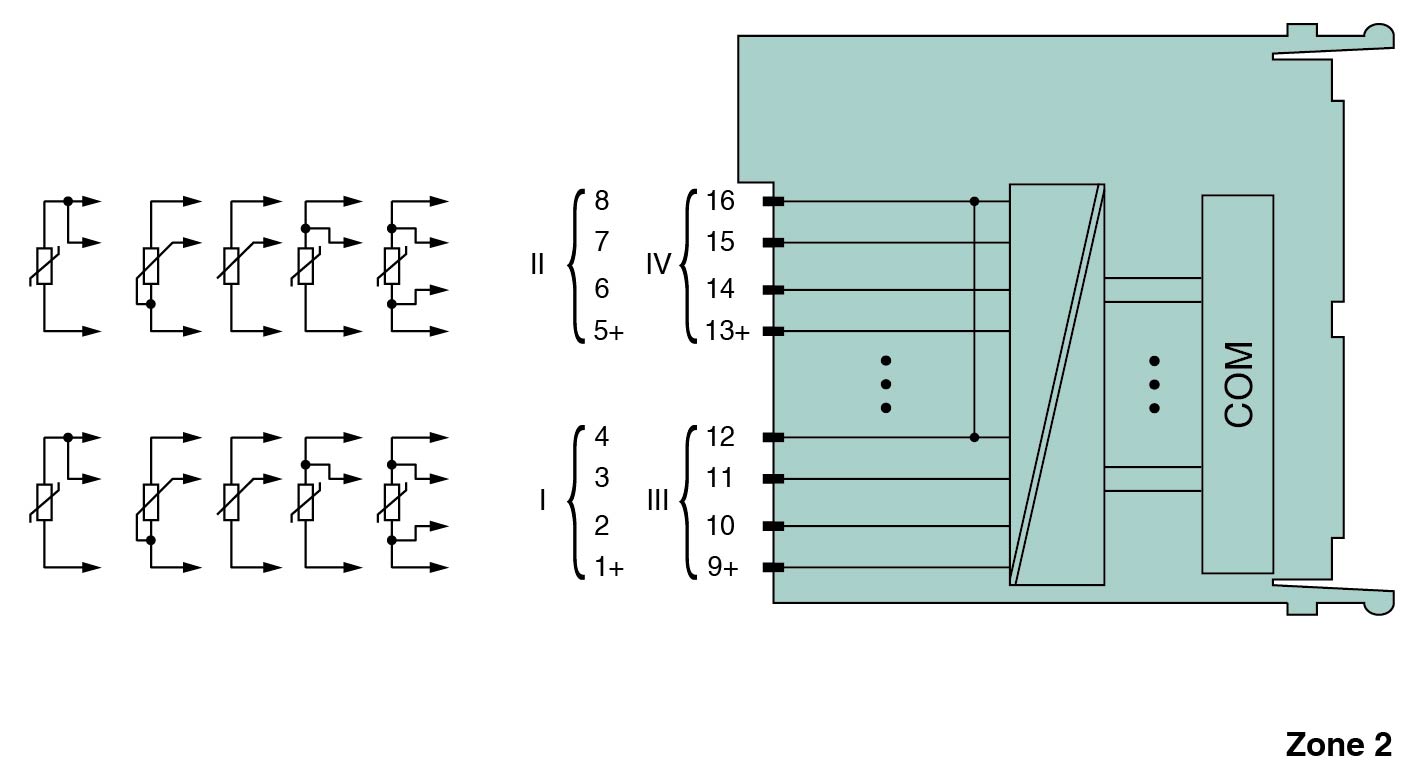

| Connection | channel I: resistance/potentiometer input 1 ... 4channel II: resistance/potentiometer input 5 ... 8channel III: resistance/potentiometer input 9 ... 12channel IV: resistance/potentiometer input 13 ... 16 |
| Measuring range | Pt100 (18-390 Ω) (500 Ω incl. line resistance)Pt200 (37-780 Ω)Pt500 (92-1952 Ω)Pt1000 (185-3905 Ω)Ni100 (69-270 Ω)Ni500 (345-1350 Ω)Ni1000 (690-2700 Ω) |
| Slide-wire sensor | 0 ... 10 kΩ |
| Measuring current | 200 µA |
| Smallest span | 50 Ω for 0.1 % accuracy |
| Linearity error | 0.1 % |
| Conversion time | max. 500 ms (4 channels) max. 1 s (for 4x 3-wire Pt100) |
| Busy after download | 5 ... 15 s |
| Lead resistance | max. 50 Ω per strand |
| Line fault detection | can be switched on/off for each channel via configuration tool |
| Short-circuit< 10 ΩOpen-circuit> 1 kΩ | Short-circuit< 10 ΩOpen-circuit> 1 kΩ |
| Field device | resistance thermometer |
| Field device [3] | slide-wire sensors |
| Field device [5] | potentiometer |
| Connection | 2-wire sensor |
| Connection [2] | 3-wire sensor |
| Connection [3] | 4-wire sensor |
| Short-circuit | < 10 Ω |
| Open-circuit | > 1 kΩ |
| Deviation | Deviation |
| Influence of ambient temperaturemax. 0,1 %/10 K | Influence of ambient temperaturemax. 0,1 %/10 K |
| Influence of ambient temperature | max. 0,1 %/10 K |
| LED indication | Power LED (P) green: supply Status LED (I) red: line fault (collective alarm) , red flashing: communication error |
| Coding | optional mechanical coding via front socket |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Environmental test | EN 60068-2-14 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Damaging gas | EN 60068-2-42 |
| Relative humidity | EN 60068-2-78 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Altitude | max. 2000 m |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 when mounted on backplane |
| Connection | removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2) |
| Mass | approx. 150 g |
| Dimensions | Dimensions |
| Height100 mmWidth32.5 mmDepth102 mm | Height100 mmWidth32.5 mmDepth102 mm |
| Height | 100 mm |
| Width | 32.5 mm |
| Depth | 102 mm |
| Certificate | PF 08 CERT 1234 X |
| Marking II 3 G Ex nA [ic] IIC T4 Gc | Marking II 3 G Ex nA [ic] IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V | Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010 |
| Marking | II 3 G Ex nA [ic] IIC T4 Gc |
| Input/power supply, internal bus | safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA [ic] IIC T4 Gc | IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA [ic] IIC T4 Gc |
| IECEx certificate | IECEx BVS 09.0037X |
| IECEx marking | Ex nA [ic] IIC T4 Gc |
| System information | The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2 or Zone 22) the module must be installed in an appropriate enclosure. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
