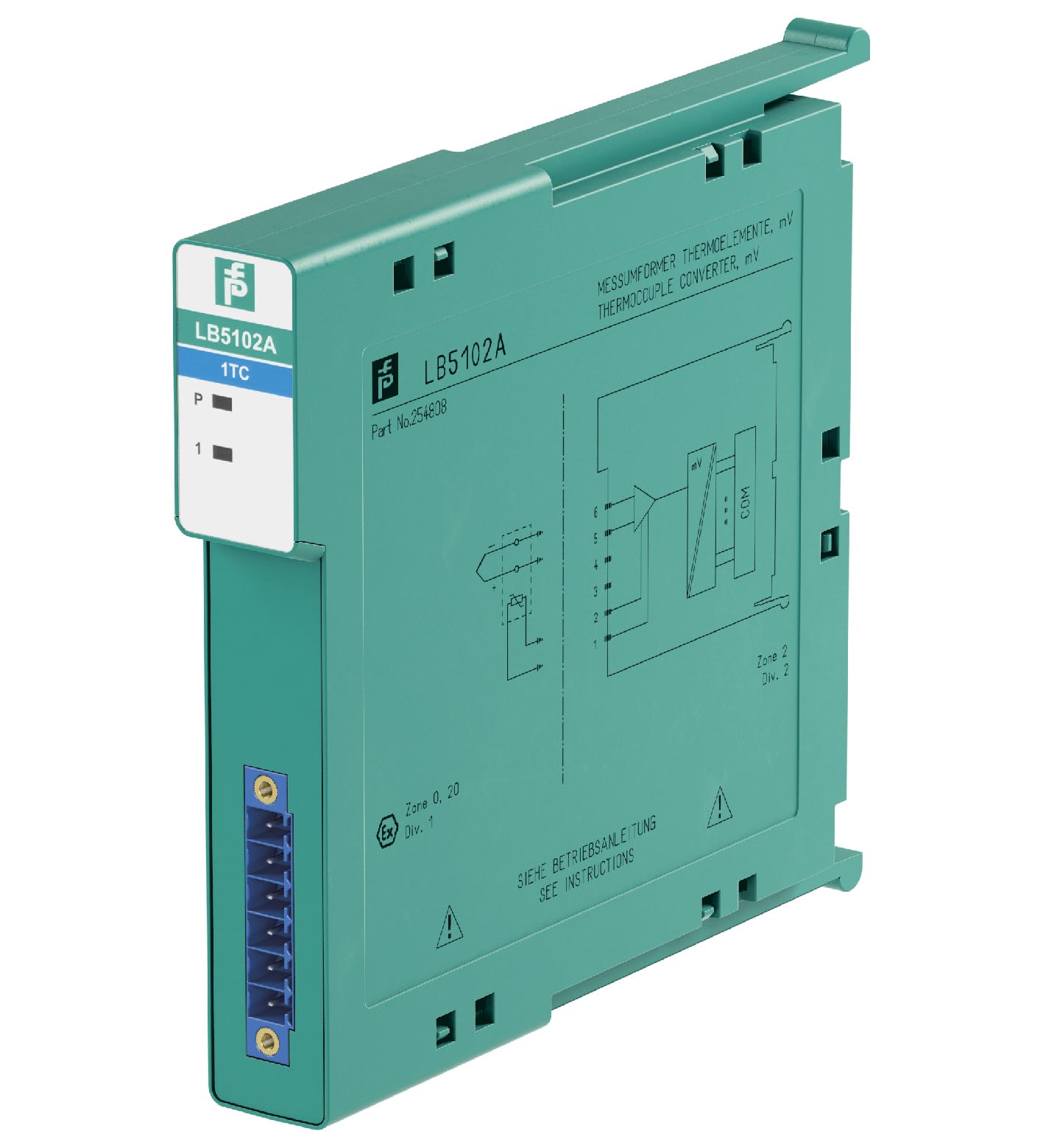

TECHNICAL DATA
规格参数
Slots
| Occupied slots | 1 |
|---|---|
| Connection | backplane bus |
| Rated voltage | 12 V DC , only in connection with the power supplies LB9*** |
| Power dissipation | 0.45 W |
| Power consumption | 0.45 W |
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
| Compensation (reference junction CJC) | internal cold junction compensation or external cold junction |
| Number of channels | 1 |
| Suitable field devices | Suitable field devices |
| Field device [2]ThermocoupleField device [4]mV source | Field device [2]ThermocoupleField device [4]mV source |
| Suitable sensors | Suitable sensors |
| Sensorthermocouples U, B, E, T, K, S, R, L, J, N, Pallaplat and mV sources | Sensorthermocouples U, B, E, T, K, S, R, L, J, N, Pallaplat and mV sources |

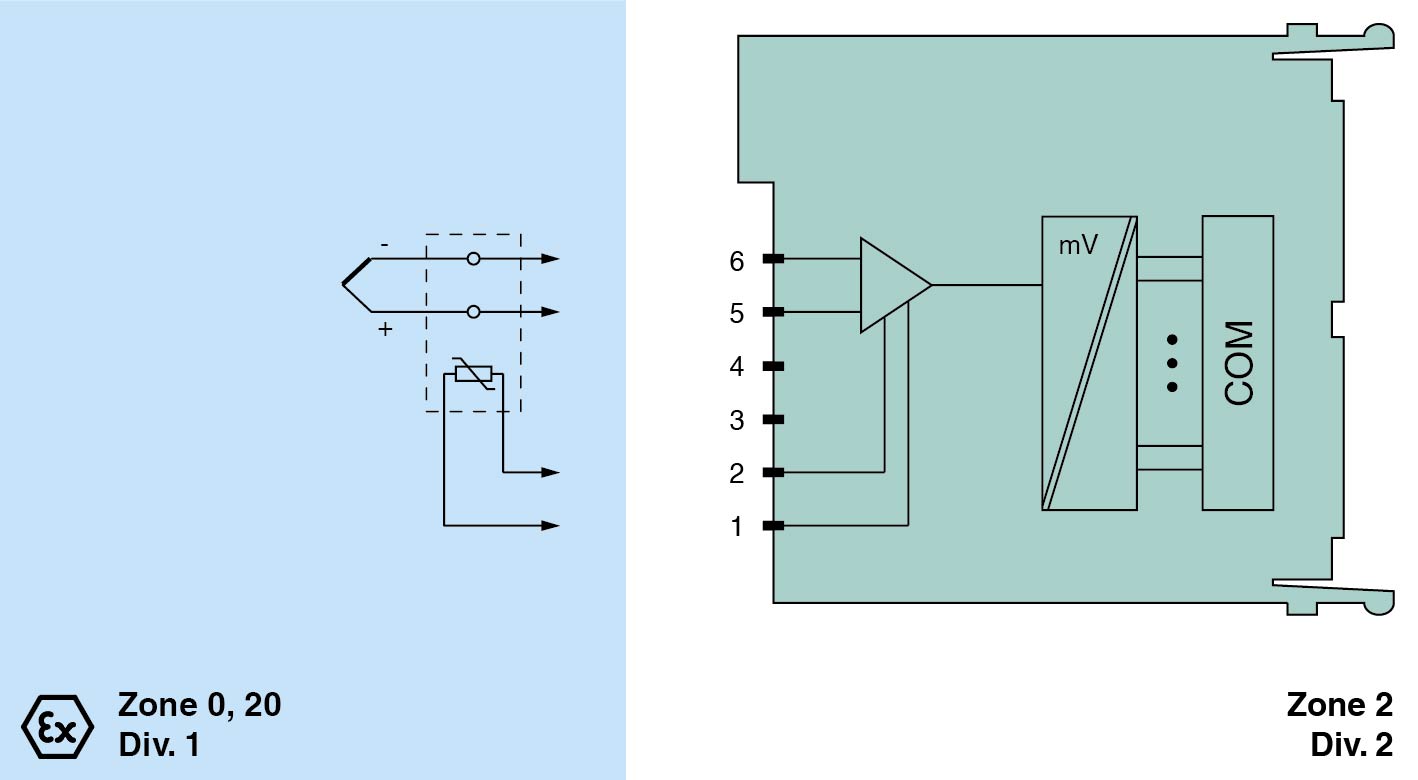

| Connection | cold junction: 1, 2thermocouple: 5+, 6- |
| Measuring range | -75 ... mV ... 75 mV |
| Smallest span | 5 mV for 0.1 % accuracy |
| Linearity error | 0.1 % |
| Conversion time | internal cold junction:max. 120 ms without LFDmax. 240 ms with LFD external cold junction:max. 20 ms without LFDmax. 80 ms with LFD |
| Compensation (reference junction CJC) | internal cold junction compensation or external cold junction |
| Line fault detection | can be switched on/off for each channel via configuration tool , |
| Open-circuit> 1 kΩ | Open-circuit> 1 kΩ |
| Field device [2] | Thermocouple |
| Field device [4] | mV source |
| Sensor | thermocouples U, B, E, T, K, S, R, L, J, N, Pallaplat and mV sources |
| Open-circuit | > 1 kΩ |
| Deviation | Deviation |
| Influence of ambient temperaturemax. 0,1 %/10 K | Influence of ambient temperaturemax. 0,1 %/10 K |
| Influence of ambient temperature | max. 0,1 %/10 K |
| LED indication | Power LED (P) green: supply Status LED (1) red: line fault |
| Coding | optional mechanical coding via front socket |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Environmental test | EN 60068-2-14 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Damaging gas | EN 60068-2-42 |
| Relative humidity | EN 60068-2-78 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Altitude | max. 2000 m |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 when mounted on backplane |
| Connection | removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2) |
| Mass | approx. 90 g |
| Dimensions | Dimensions |
| Height100 mmWidth16 mmDepth102 mm | Height100 mmWidth16 mmDepth102 mm |
| Height | 100 mm |
| Width | 16 mm |
| Depth | 102 mm |
| EU-type examination certificate | PTB 03 ATEX 2042 X |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Input | Input |
| VoltageUo1.8 VCurrentIo43 mAPowerPo67 mW (trapezoid characteristic curve) | VoltageUo1.8 VCurrentIo43 mAPowerPo67 mW (trapezoid characteristic curve) |
| Certificate | PF 08 CERT 1234 X |
| Marking II 3 G Ex nA IIC T4 Gc | Marking II 3 G Ex nA IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V | Input/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Voltage | 1.8 V |
| Current | 43 mA |
| Power | 67 mW (trapezoid characteristic curve) |
| Marking | II 3 G Ex nA IIC T4 Gc |
| Input/power supply, internal bus | safe electrical isolation acc. to EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010 |
| ATEX approval | PTB 03 ATEX 2042 X |
| UL approval | E106378 |
| Control drawing116-0322 | Control drawing116-0322 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I | IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I |
| Control drawing | 116-0322 |
| IECEx certificate | IECEx BVS 09.0037X |
| IECEx marking | Ex nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I |
| System information | The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
