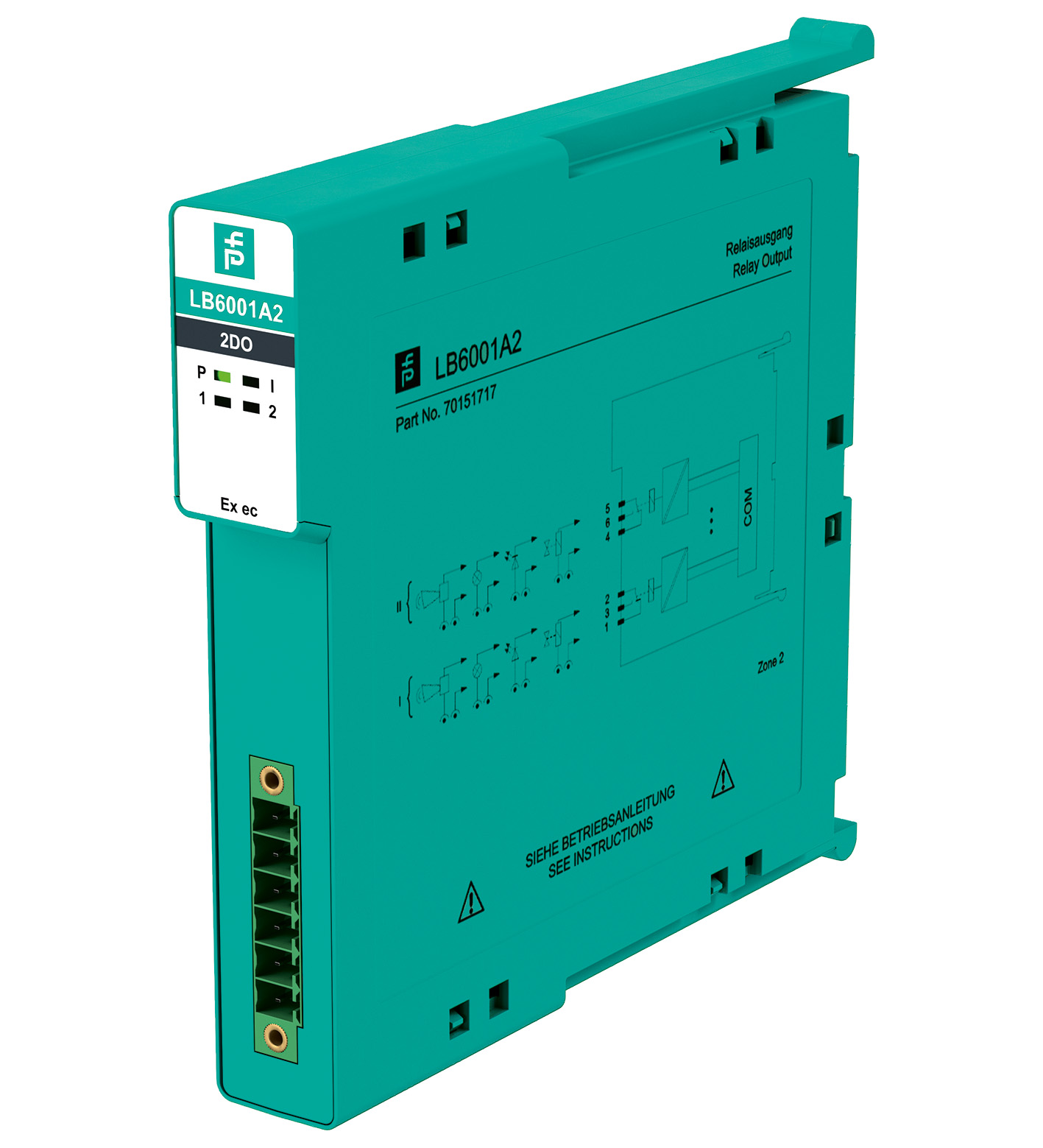

TECHNICAL DATA
| Occupied slots | 1 |
|---|---|
| Connection | backplane bus |
| Rated voltage | 12 V DC +4/-2 % , only in connection with the power supply LB9006C |
| Power dissipation | 0.5 W |
| Power consumption | 0.45 W |
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
| Number of channels | 2 |
| Field device interface | Field device interface |
| ConnectionRelay output | ConnectionRelay output |

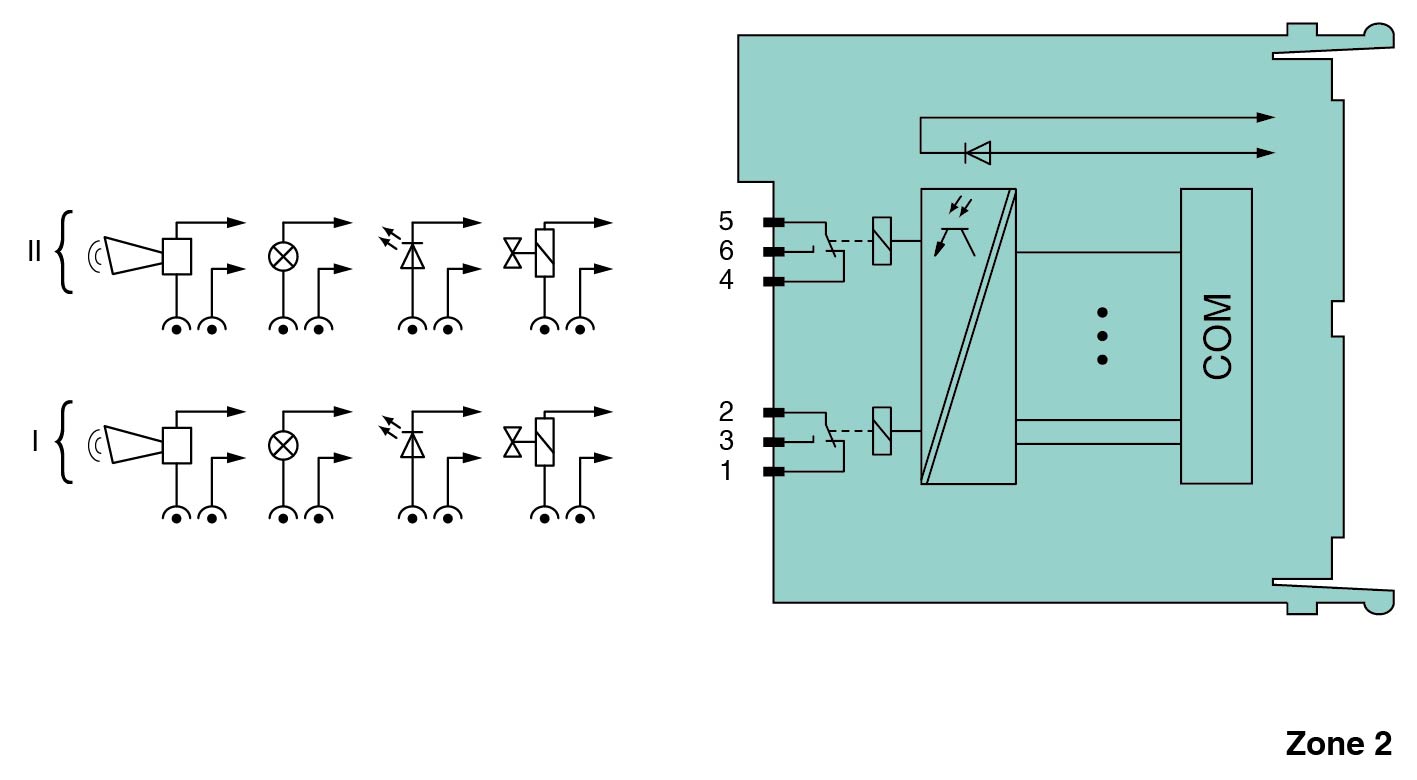

| Connection | channel I: 1-2 NC, 3; channel II: 4-5 NC, 6 |
| Relay | Relay |
| Switching voltage30 V DCSwitching current1 A DCSwitch power30 WMinimum load5 V 10 mAElectrical life0.03 million switching cycles at maximum load and temperatureContact MaterialAgPd gold plated | Switching voltage30 V DCSwitching current1 A DCSwitch power30 WMinimum load5 V 10 mAElectrical life0.03 million switching cycles at maximum load and temperatureContact MaterialAgPd gold plated |
| Response time | 20 ms (depending on bus cycle time) |
| Watchdog | within 0.5 s the device goes in safe state, e.g. after loss of communication |
| Connection | Relay output |
| Switching voltage | 30 V DC |
| Switching current | 1 A DC |
| Switch power | 30 W |
| Minimum load | 5 V 10 mA |
| Electrical life | 0.03 million switching cycles at maximum load and temperature |
| Contact Material | AgPd gold plated |
| LED indication | Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: Communication error or active safety shutdown Status LED (1-2) yellow: Channel status |
| Coding | optional mechanical coding via front socket |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1 | Directive 2014/30/EUEN 61326-1 |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1 , EN 60664-1 | Directive 2014/35/EUEN 61010-1 , EN 60664-1 |
| Directive 2014/30/EU | EN 61326-1 |
| Directive 2014/35/EU | EN 61010-1 , EN 60664-1 |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Environmental test | EN 60068-2-14 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Relative humidity | EN 60068-2-78 |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Altitude | max. 2000 m |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles |
| Degree of protection | IP20 when mounted on backplane |
| Connection | removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2) |
| Mass | approx. 90 g |
| Dimensions | Dimensions |
| Height100 mmWidth16 mmDepth102 mm | Height100 mmWidth16 mmDepth102 mm |
| Height | 100 mm |
| Width | 16 mm |
| Depth | 102 mm |
| EU-type examination certificate | FIDI 23 ATEX 0078 X |
| Marking II 3G Ex ec nC IIC T4 Gc | Marking II 3G Ex ec nC IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Output/power supply, internal busbasic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC | Output/power supply, internal busbasic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0 EN IEC 60079-7 EN IEC 60079-15 | Directive 2014/34/EUEN IEC 60079-0 EN IEC 60079-7 EN IEC 60079-15 |
| Marking | II 3G Ex ec nC IIC T4 Gc |
| Output/power supply, internal bus | basic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC |
| Directive 2014/34/EU | EN IEC 60079-0 EN IEC 60079-7 EN IEC 60079-15 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx FIDI 23.0010XIECEx markingEx ec nC IIC T4 Gc | IECEx certificateIECEx FIDI 23.0010XIECEx markingEx ec nC IIC T4 Gc |
| IECEx certificate | IECEx FIDI 23.0010X |
| IECEx marking | Ex ec nC IIC T4 Gc |
| System information | The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2 or Zone 22) the module must be installed in an appropriate enclosure. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
