LB6006A

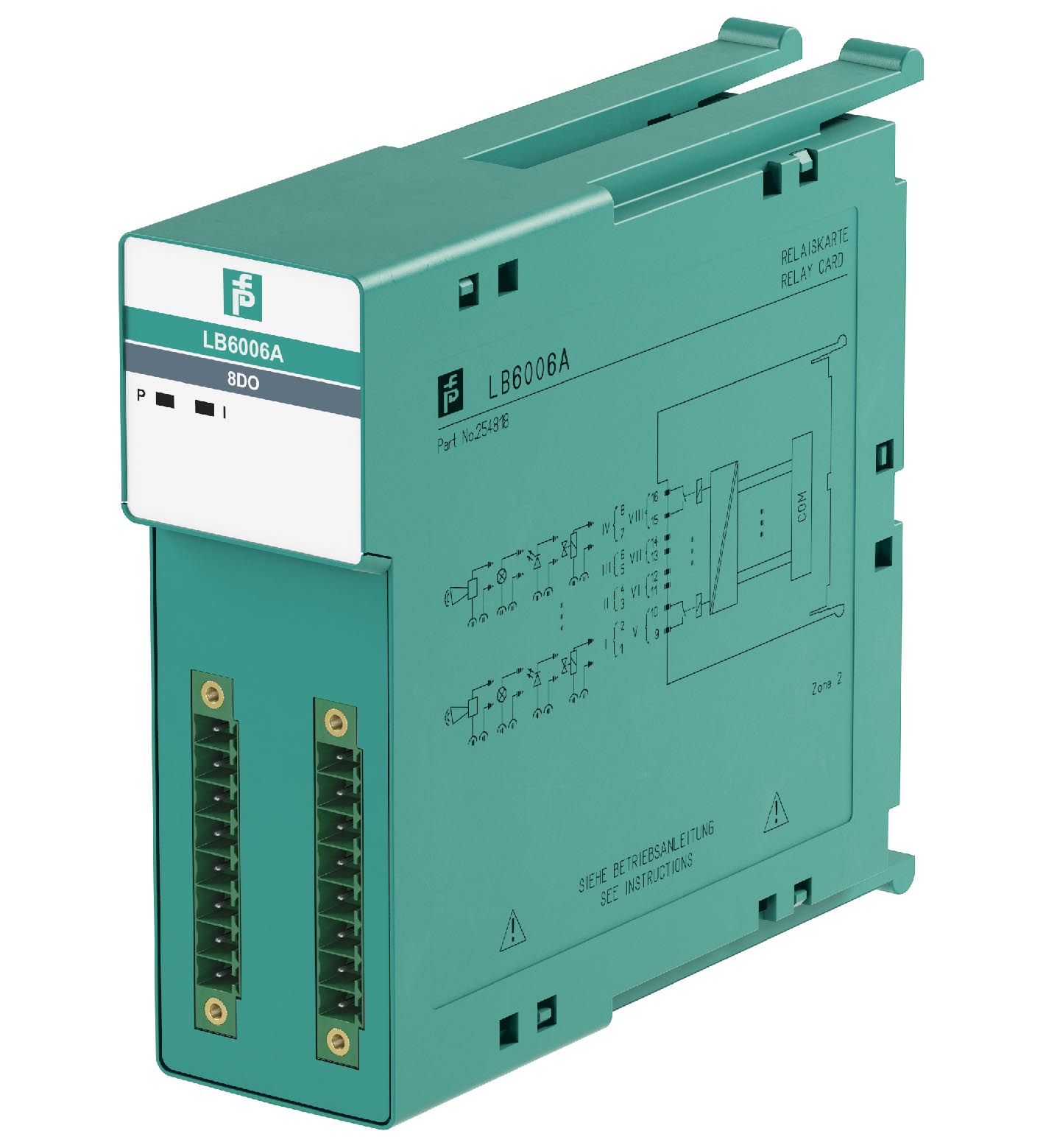

LB6006A Relay output

订货号: 254818
产品分类: LB系列

Relay output

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Slots

Occupied slots	2
Connection	backplane bus
Rated voltage	12 V DC , only in connection with the power supplies LB9***
Power dissipation	1.4 W
Power consumption	1.4 W
Connection	backplane bus
Interface	manufacturer-specific bus to standard com unit
Number of channels	8
Field device interface	Field device interface
ConnectionRelay output	ConnectionRelay output

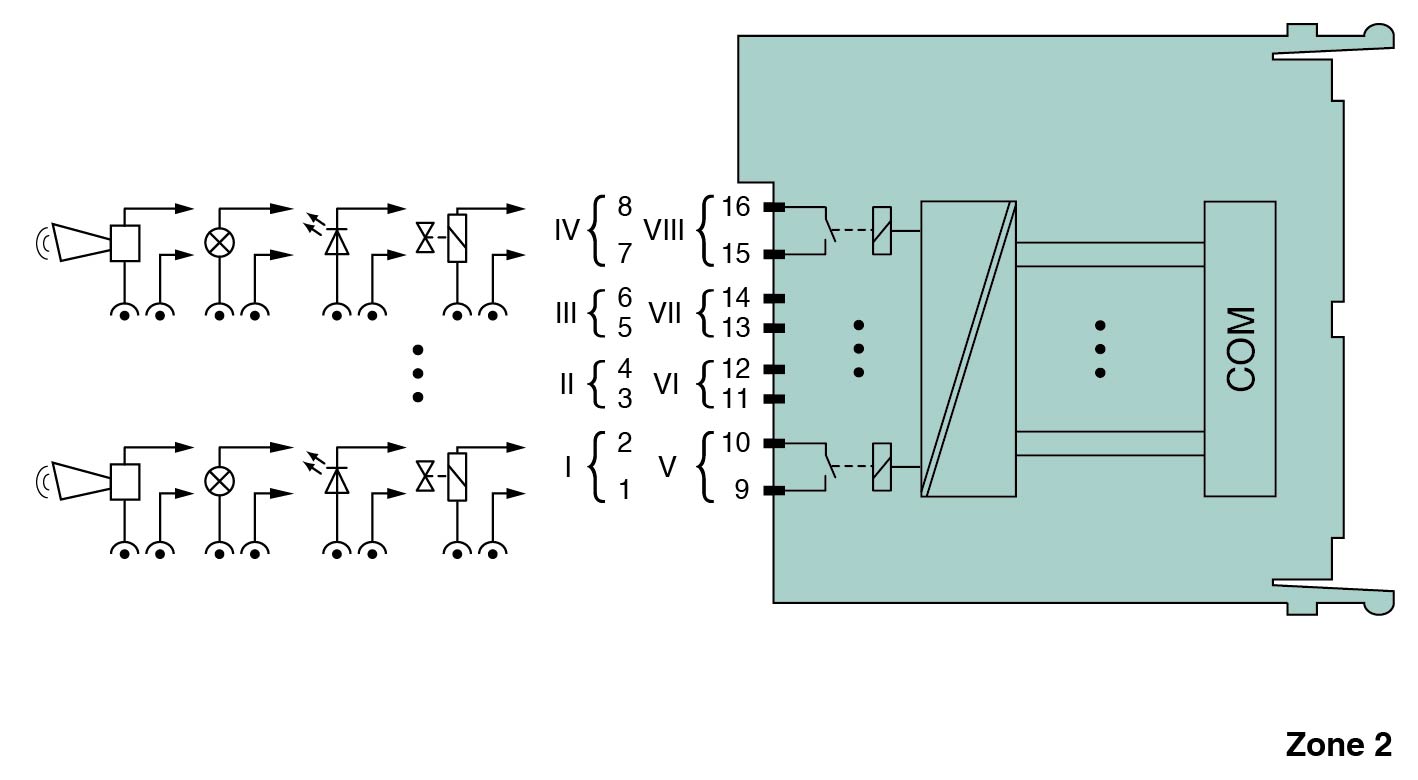

Connection	channel I: 1-2 NO; channel II: 3-4 NO; channel III: 5-6 NO; channel IV: 7-8 NO; channel V: 9-10 NO; channel VI: 11-12 NO; channel VII: 13-14 NO; channel VIII: 15-16 NO
Relay	Relay
Switching voltage30 V DC / ACSwitching current1 A DC / AC resistive loadSwitch power30 VA / 30 WMinimum load1 V 1 mAElectrical life0.1 mio. cyclesContact MaterialAgPd gold plated	Switching voltage30 V DC / ACSwitching current1 A DC / AC resistive loadSwitch power30 VA / 30 WMinimum load1 V 1 mAElectrical life0.1 mio. cyclesContact MaterialAgPd gold plated
Response time	20 ms (depending on bus cycle time)
Watchdog	within 0.5 s the device goes in safe state, e.g. after loss of communication
Connection	Relay output
Switching voltage	30 V DC / AC
Switching current	1 A DC / AC resistive load
Switch power	30 VA / 30 W
Minimum load	1 V 1 mA
Electrical life	0.1 mio. cycles
Contact Material	AgPd gold plated
LED indication	Power LED (P) green: supply Status LED (I) red: communication error
Coding	optional mechanical coding via front socket
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1	Directive 2014/35/EUEN 61010-1
Directive 2014/30/EU	EN 61326-1:2013
Directive 2014/35/EU	EN 61010-1
Electromagnetic compatibility	NE 21
Degree of protection	IEC 60529
Environmental test	EN 60068-2-14
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Damaging gas	EN 60068-2-42
Relative humidity	EN 60068-2-78
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Altitude	max. 2000 m
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20 when mounted on backplane
Connection	removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2)
Mass	approx. 160 g
Dimensions	Dimensions
Height100 mmWidth32.5 mmDepth102 mm	Height100 mmWidth32.5 mmDepth102 mm
Height	100 mm
Width	32.5 mm
Depth	102 mm
Certificate	PF 08 CERT 1234 X
Marking II 3 G Ex nA nC IIC T4 Gc	Marking II 3 G Ex nA nC IIC T4 Gc
Galvanic isolation	Galvanic isolation
Output/power supply, internal bussafe electrical isolation acc. to EN 61010-1	Output/power supply, internal bussafe electrical isolation acc. to EN 61010-1
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-15:2010
Marking	II 3 G Ex nA nC IIC T4 Gc
Output/power supply, internal bus	safe electrical isolation acc. to EN 61010-1
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN 60079-15:2010
UL approval	E106378
IECEx approval	IECEx approval
IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA nC IIC T4 Gc	IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA nC IIC T4 Gc
IECEx certificate	IECEx BVS 09.0037X
IECEx marking	Ex nA nC IIC T4 Gc
System information	The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2 or Zone 22) the module must be installed in an appropriate enclosure.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
