LB6006A2

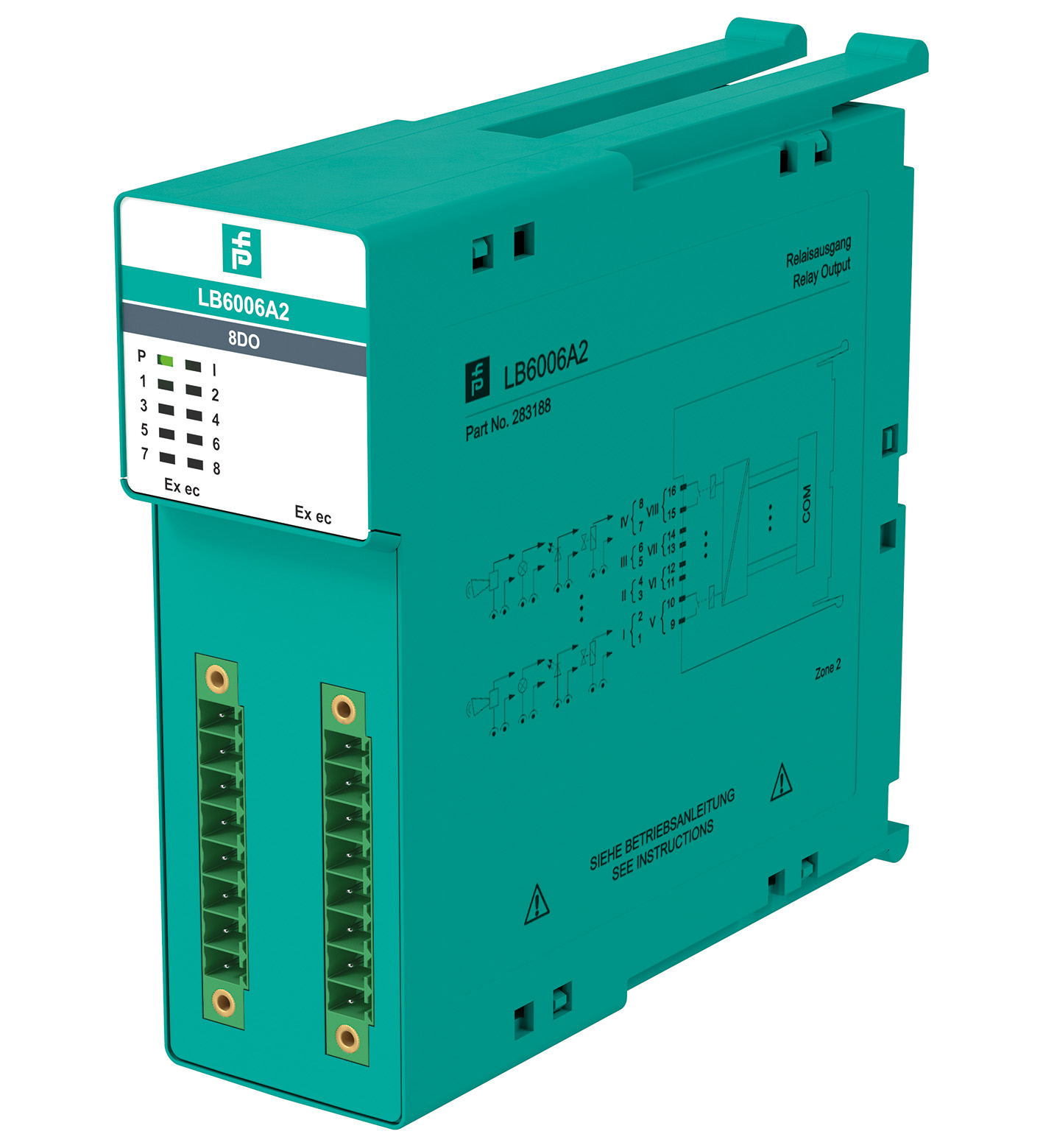

LB6006A2 Relay output

订货号: 283188
产品分类: LB系列

Relay output

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Slots

Occupied slots	2
Connection	backplane bus
Rated voltage	12 V DC +4/-2 % , only in connection with the power supply LB9006C
Power dissipation	2.4 W
Power consumption	1.4 W
Connection	backplane bus
Interface	manufacturer-specific bus to standard com unit
Number of channels	8
Field device interface	Field device interface
ConnectionRelay output	ConnectionRelay output

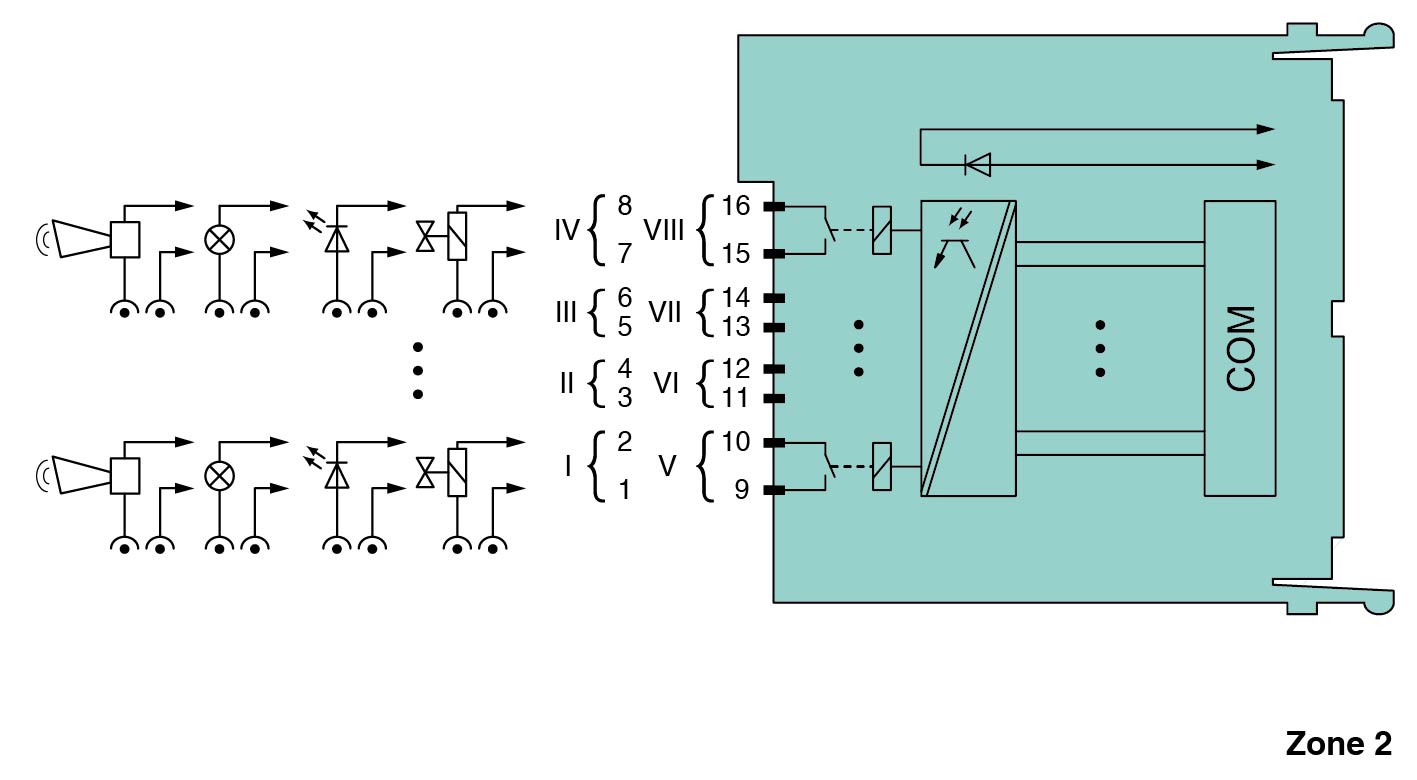

Connection	channel I: 1-2 NO; channel II: 3-4 NO; channel III: 5-6 NO; channel IV: 7-8 NO; channel V: 9-10 NO; channel VI: 11-12 NO; channel VII: 13-14 NO; channel VIII: 15-16 NO
Relay	Relay
Switching voltage30 V DCSwitching current1 A DCSwitch power30 WMinimum load5 V 10 mAElectrical life0.1 million switching cycles at maximum load and temperatureContact MaterialAgPd gold plated	Switching voltage30 V DCSwitching current1 A DCSwitch power30 WMinimum load5 V 10 mAElectrical life0.1 million switching cycles at maximum load and temperatureContact MaterialAgPd gold plated
Response time	20 ms (depending on bus cycle time)
Watchdog	within 0.5 s the device goes in safe state, e.g. after loss of communication
Connection	Relay output
Switching voltage	30 V DC
Switching current	1 A DC
Switch power	30 W
Minimum load	5 V 10 mA
Electrical life	0.1 million switching cycles at maximum load and temperature
Contact Material	AgPd gold plated
LED indication	Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: Communication error or active safety shutdown Status LED (1-8) line fault (lead breakage or short circuit) , yellow: Channel status
Coding	optional mechanical coding via front socket
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1	Directive 2014/30/EUEN 61326-1
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1 , EN 60664-1	Directive 2014/35/EUEN 61010-1 , EN 60664-1
Directive 2014/30/EU	EN 61326-1
Directive 2014/35/EU	EN 61010-1 , EN 60664-1
Electromagnetic compatibility	NE 21
Degree of protection	IEC 60529
Environmental test	EN 60068-2-14
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Relative humidity	EN 60068-2-78
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Altitude	max. 2000 m
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles
Degree of protection	IP20 when mounted on backplane
Connection	removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2)
Mass	approx. 160 g
Dimensions	Dimensions
Height100 mmWidth32.5 mmDepth102 mm	Height100 mmWidth32.5 mmDepth102 mm
Height	100 mm
Width	32.5 mm
Depth	102 mm
EU-type examination certificate	FIDI 23 ATEX 0078 X
Marking II 3G Ex ec nC IIC T4 Gc	Marking II 3G Ex ec nC IIC T4 Gc
Galvanic isolation	Galvanic isolation
Output/power supply, internal busbasic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC	Output/power supply, internal busbasic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0 EN IEC 60079-7 EN IEC 60079-15	Directive 2014/34/EUEN IEC 60079-0 EN IEC 60079-7 EN IEC 60079-15
Marking	II 3G Ex ec nC IIC T4 Gc
Output/power supply, internal bus	basic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC
Directive 2014/34/EU	EN IEC 60079-0 EN IEC 60079-7 EN IEC 60079-15
ATEX approval	FIDI 23 ATEX 0078 X
IECEx approval	IECEx approval
IECEx certificateIECEx FIDI 23.0010XIECEx markingEx ec nC IIC T4 Gc	IECEx certificateIECEx FIDI 23.0010XIECEx markingEx ec nC IIC T4 Gc
IECEx certificate	IECEx FIDI 23.0010X
IECEx marking	Ex ec nC IIC T4 Gc
System information	The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2 or Zone 22) the module must be installed in an appropriate enclosure.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
