倍加福

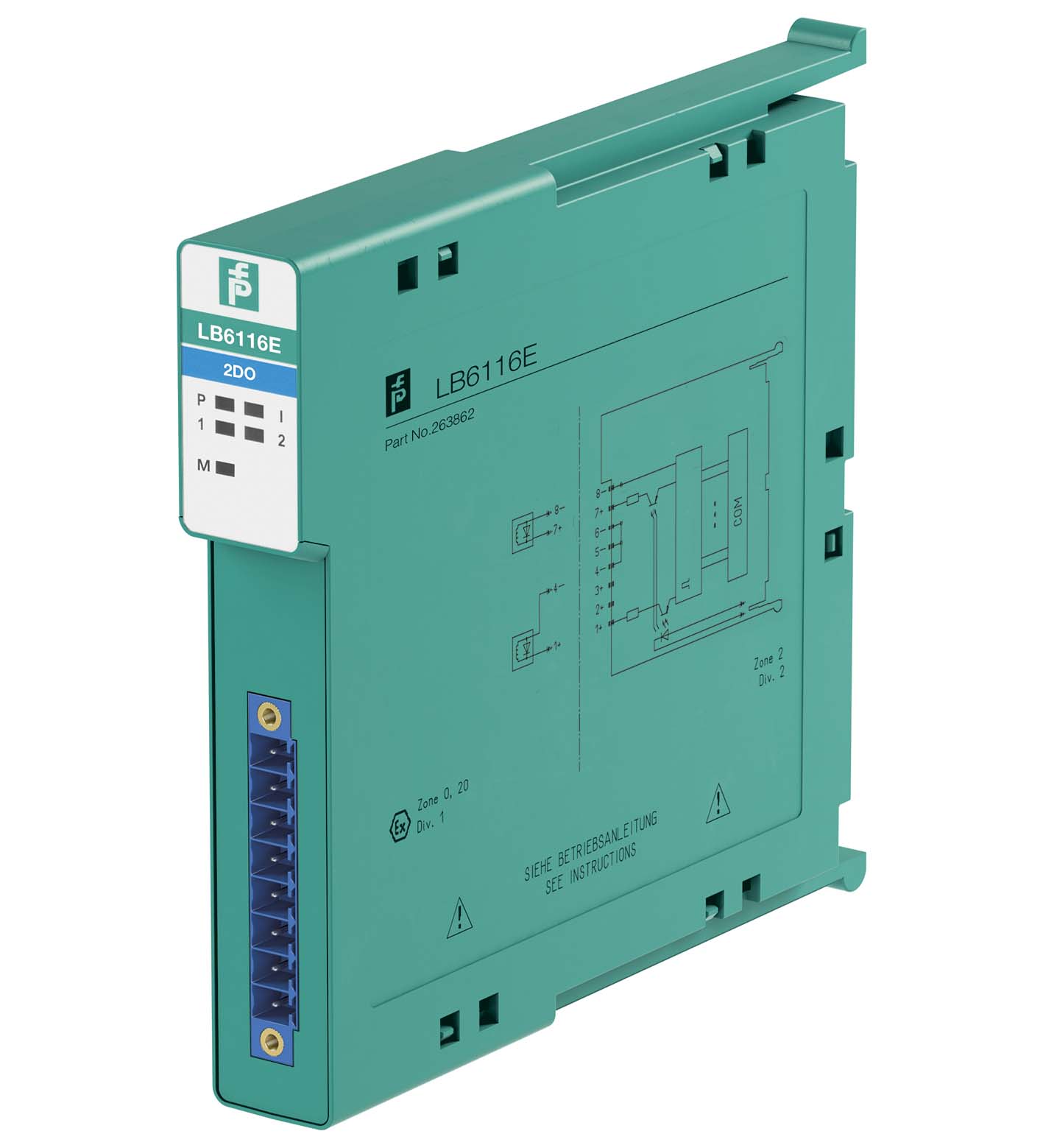

LB6116E

LB6116E Digital Output with Shutdown Input

订货号
263862
产品分类
LB系列

Digital Output with Shutdown Input

查看规格参数 资料与附件

TECHNICAL DATA

规格参数

Slots
Occupied slots1
Connectionbackplane bus
Rated voltageUse only in connection with the power supplies LB9***
Power dissipation1.95 W
Power consumption2.9 W
Connectionbackplane bus
Interfacemanufacturer-specific bus to standard com unit
Number of channels2
Suitable field devicesSuitable field devices
Field deviceSolenoid ValveField device [2]audible alarmField device [3]visual alarmField deviceSolenoid ValveField device [2]audible alarmField device [3]visual alarm

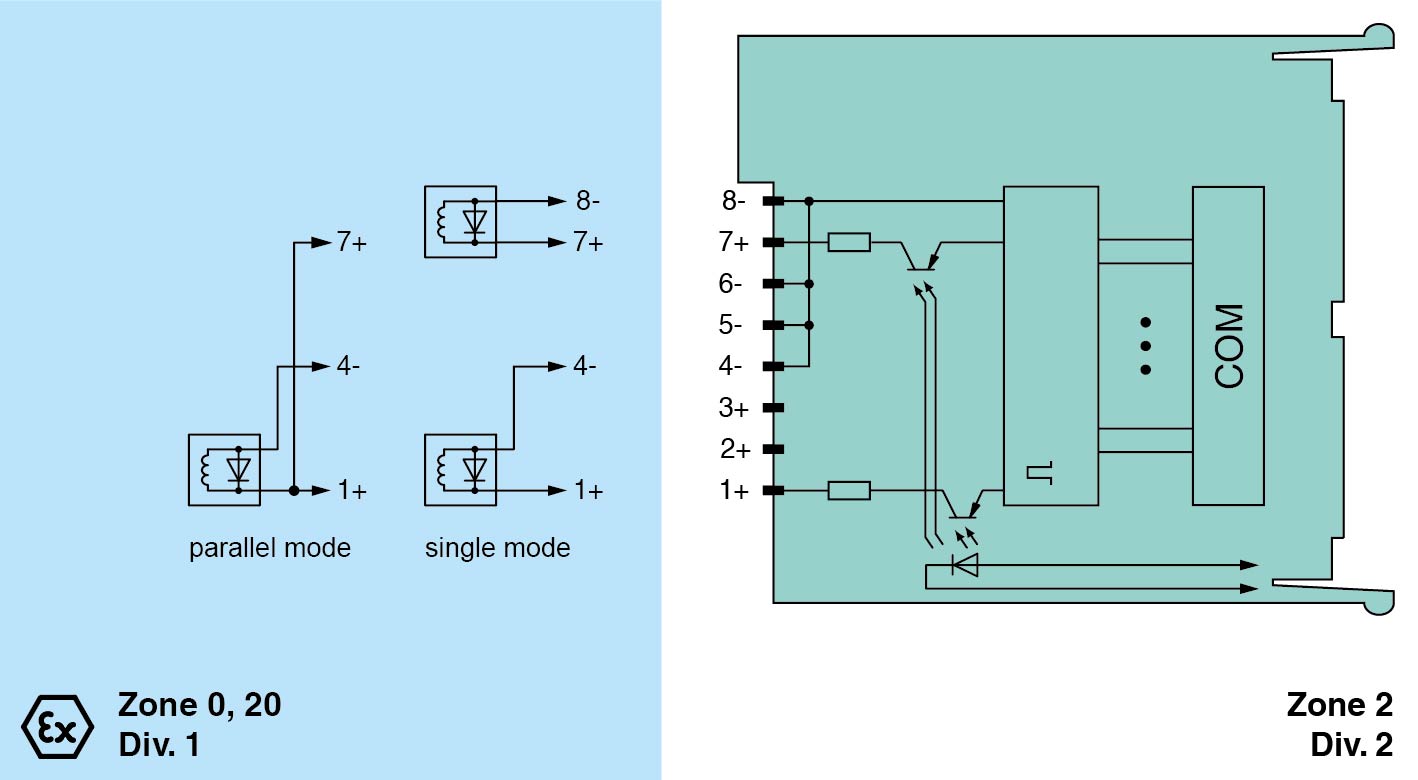

Connectionchannel I: 1+, 4/5/6/8-; channel II: 7+, 4/5/6/8-
Internal resistor258 Ω , both channels parallel 129 Ω
Current limit40 mA both channels parallel 80 mA
Open loop voltage23 V , both channels parallel 23 V
Line fault detectioncan be switched on/off for each channel via configuration tool also when turned off (every 2.5 s the valve is turned on for 2 ms)
Short-circuit< 50 ΩOpen-circuit> 10 kΩShort-circuit< 50 ΩOpen-circuit> 10 kΩ
Response time10 ms (depending on bus cycle time)
Watchdogwithin 0.5 s the device goes in safe state, e.g. after loss of communication
Field deviceSolenoid Valve
Field device [2]audible alarm
Field device [3]visual alarm
Short-circuit< 50 Ω
Open-circuit> 10 kΩ
LED indicationPower LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: communication error , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1, 2) red: line fault (lead breakage or short circuit) , yellow: state of digital I/O (0/1) Mode LED (M) white: Parallel operation of outputs
Codingoptional mechanical coding via front socket
Electromagnetic compatibilityElectromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EUEN 61326-1:2013
Electromagnetic compatibilityNE 21
Degree of protectionIEC 60529
Environmental testEN 60068-2-14
Shock resistanceEN 60068-2-27
Vibration resistanceEN 60068-2-6
Damaging gasEN 60068-2-42
Relative humidityEN 60068-2-78
Ambient temperature-40 ... 60 °C (-40 ... 140 °F)
Storage temperature-40 ... 85 °C (-40 ... 185 °F)
Relative humidity95 % non-condensing
Altitudemax. 2000 m
Shock resistanceshock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistancefrequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gasdesigned for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protectionIP20 when mounted on backplane
Connectionremovable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2)
Massapprox. 150 g
DimensionsDimensions
Height100 mmWidth16 mmDepth102 mmHeight100 mmWidth16 mmDepth102 mm
Height100 mm
Width16 mm
Depth102 mm
EU-type examination certificateEXA 16 ATEX 0025X
Marking II 3(1) G Ex nA [ia Ga] IIC T4 Gc[exsign] II (1) D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IMarking II 3(1) G Ex nA [ia Ga] IIC T4 Gc[exsign] II (1) D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
OutputEx ia
VoltageUo24.2 VCurrentIo108 mAPowerPo654 mWInternal capacitanceCi12 nFInternal inductanceLi0 mHVoltageUo24.2 VCurrentIo108 mAPowerPo654 mWInternal capacitanceCi12 nFInternal inductanceLi0 mH
Output (both channels parallel)Output (both channels parallel)
VoltageUo24.2 VCurrentIo216 mAPowerPo1307 mWInternal capacitanceCi24 nFInternal inductanceLi0 mHVoltageUo24.2 VCurrentIo216 mAPowerPo1307 mWInternal capacitanceCi24 nFInternal inductanceLi0 mH
Galvanic isolationGalvanic isolation
Output/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 VOutput/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V
Directive conformityDirective conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010
MarkingII 3(1) G Ex nA [ia Ga] IIC T4 Gc[exsign] II (1) D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Voltage24.2 V
Current108 mA
Power654 mW
Internal capacitance12 nF
Internal inductance0 mH
Voltage24.2 V
Current216 mA
Power1307 mW
Internal capacitance24 nF
Internal inductance0 mH
Output/power supply, internal bussafe electrical isolation acc. to EN 60079-11, voltage peak value 375 V
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-11:2012 EN 60079-15:2010
ATEX approvalEXA 16 ATEX 0025 X
UL approvalE106378
IECEx approvalIECEx approval
IECEx certificateIECEx EXA 16.0010XIECEx markingEx nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] IIECEx certificateIECEx EXA 16.0010XIECEx markingEx nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I
IECEx certificateIECEx EXA 16.0010X
IECEx markingEx nA [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I
System informationThe module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure.
Supplementary informationObserve the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
