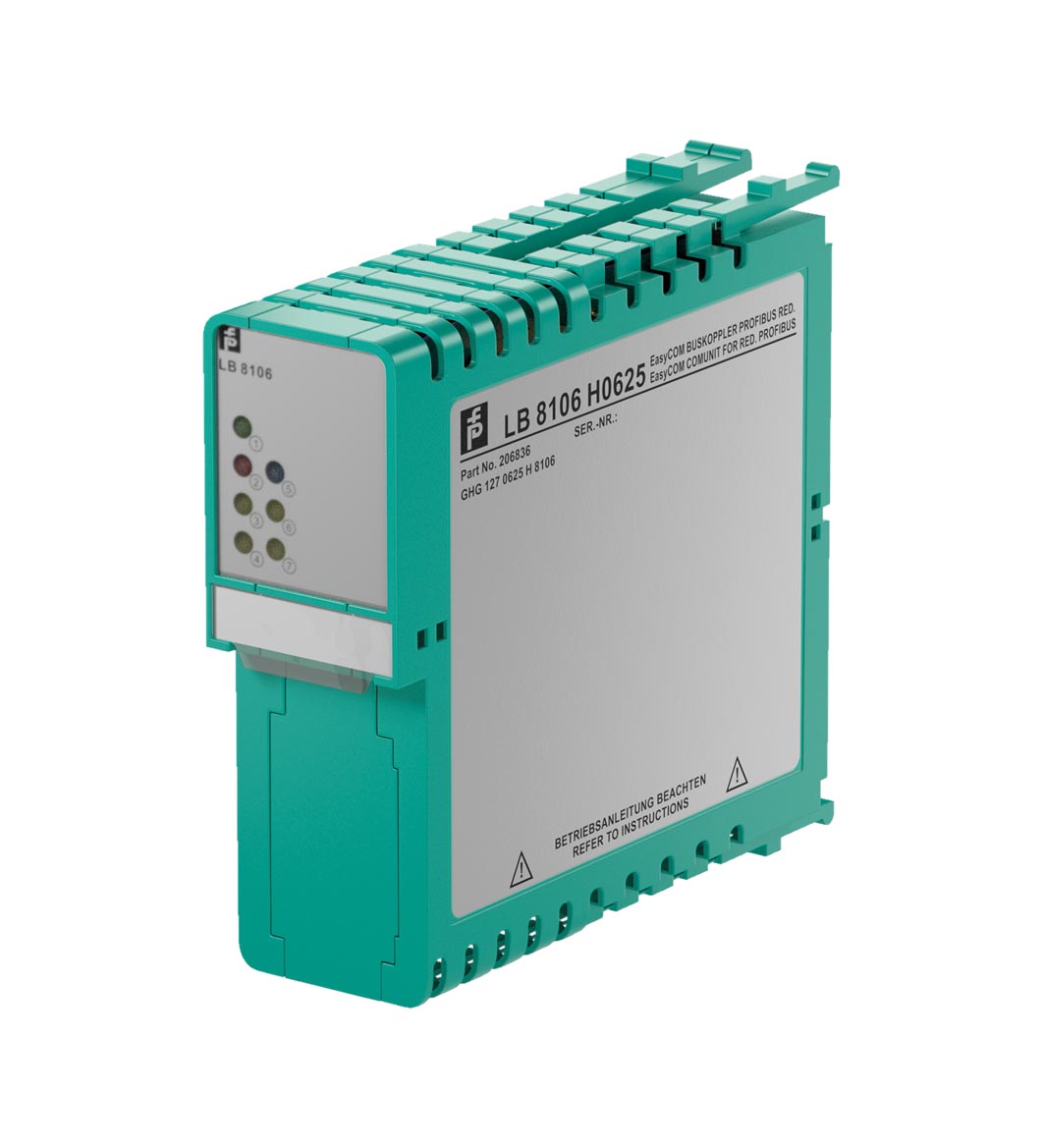

Supply
| Connection | backplane bus |
|---|---|
| Rated voltage | 5 V DC , only in connection with the power supplies LB9*** |
| Power consumption | 2 W |
| Fieldbus type | PROFIBUS DP/DP-V1 |
| PROFIBUS DP | PROFIBUS DP |
| Connection9-pin Sub-D socket via backplaneBaud rateup to 1.5 MBit/sProtocolPROFIBUS DP/DP V1 read/write services | Connection9-pin Sub-D socket via backplaneBaud rateup to 1.5 MBit/sProtocolPROFIBUS DP/DP V1 read/write services |
| Number of stations per bus line | max. 125 (PROFIBUS), max. 119 (service bus) |
| Cyclic process data | 240 bytes input and (simultaneously) 240 bytes output |
| Number of stations per bus segment | max. 31 (RS-485 standard) |
| Number of repeaters between Master and Slave | max. 3 |
| Supported I/O modules | all LB remote I/O modules |
| Bus length | max. 1000 m (FOL, 1.5 MBaud), max. 1000 m (copper cable, 187.5 kBd), max. 200 m (copper cable, 1.5 MBd) |
| Addressing | via configuration software |
| PROFIBUS address | 0 ... 126 (factory standard setting: 126) |
| GSE file | CGV61711.gsd/gse |
| HART communication | via PROFIBUS or service bus |
| Connection | 9-pin Sub-D socket via backplane |
| Baud rate | up to 1.5 MBit/s |
| Protocol | PROFIBUS DP/DP V1 read/write services |
| Connection | backplane bus |
| Redundancy | via backplane |
| LED indicator | LED 1 (power supply): On = operating, fast flash = cold start LED 2 (collective alarm): On = internal fault, flashing = no PROFIBUS connection LED 3 (status process bus): flashing = PROFIBUS receive channel active LED 4 (status service bus): flashing = service bus receive channel active LED 5 (operating mode): flashing 1 (1:1 ratio) = active, normal operation; flashing 2 (7:1 ratio) = active, simulation LED 6 (status process bus): flashing = PROFIBUS response channel active LED 7 (status servicebus): flashing = service bus response channel active |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1 | Directive 2014/30/EUEN 61326-1 |
| Directive 2014/30/EU | EN 61326-1 |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 (module) , mounted on backplane |
| Connection | via backplane |
| Mass | approx. 120 g |
| Dimensions | 32.5 x 100 x 102 mm (1.28 x 3.9 x 4 inch) |
| Certificate | PF 08 CERT 1234 X |
| Marking II 3 G Ex nA IIC T4 Gc | Marking II 3 G Ex nA IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2009 EN 60079-11:2007 EN 60079-15:2010 | Directive 2014/34/EUEN 60079-0:2009 EN 60079-11:2007 EN 60079-15:2010 |
| Marking | II 3 G Ex nA IIC T4 Gc |
| Directive 2014/34/EU | EN 60079-0:2009 EN 60079-11:2007 EN 60079-15:2010 |
| ATEX approval | PF 08 CERT 1234 X |
| UL approval | E106378 |
| Control drawing116-0321Approved forcUL (Canada): CL I Zn. 2 IIC; IS circuits for CL I Zn. 0 IIC ULus (USA): CL I Div. 2 Grp. A, B, C, D; IS circuits for CL I, II, III Div. 1 Grp. A, B, C, D, E, F, G | Control drawing116-0321Approved forcUL (Canada): CL I Zn. 2 IIC; IS circuits for CL I Zn. 0 IIC ULus (USA): CL I Div. 2 Grp. A, B, C, D; IS circuits for CL I, II, III Div. 1 Grp. A, B, C, D, E, F, G |
| IECEx approval | BVS 09.0037X |
| Approved forEx nA IIC T4 Gc | Approved forEx nA IIC T4 Gc |
| EAC approval | Russia: RU C-IT.MIII06.B.00129 |
| Marine approval | Marine approval |
| Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV | Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV |
| Control drawing | 116-0321 |
| Approved for | cUL (Canada): CL I Zn. 2 IIC; IS circuits for CL I Zn. 0 IIC ULus (USA): CL I Div. 2 Grp. A, B, C, D; IS circuits for CL I, II, III Div. 1 Grp. A, B, C, D, E, F, G |
| Approved for | Ex nA IIC T4 Gc |
| Lloyd Register | 15/20021 |
| DNV GL Marine | TAA0000034 |
| American Bureau of Shipping | T1450280/UN |
| Bureau Veritas Marine | 22449/B0 BV |
