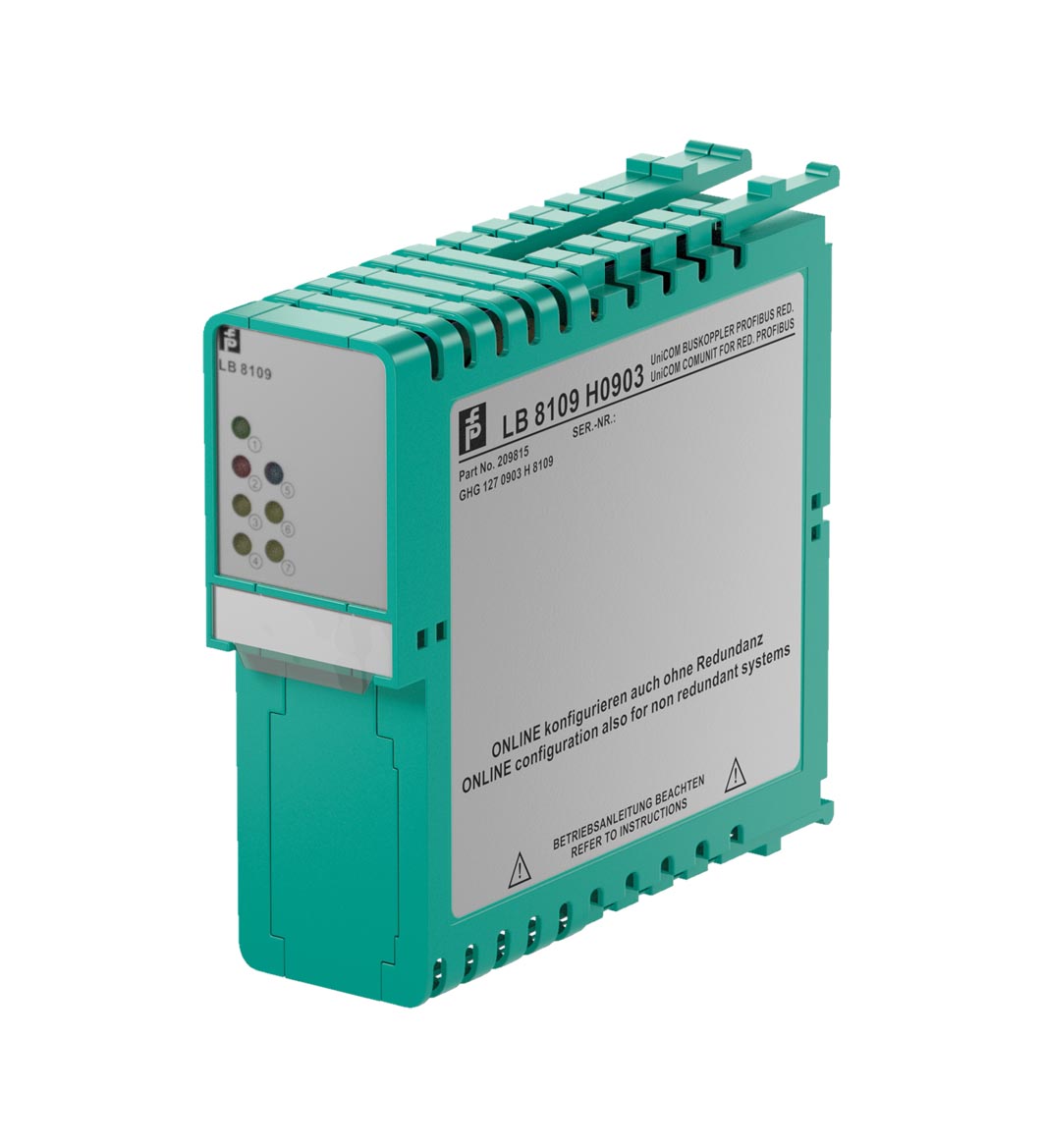

TECHNICAL DATA
规格参数

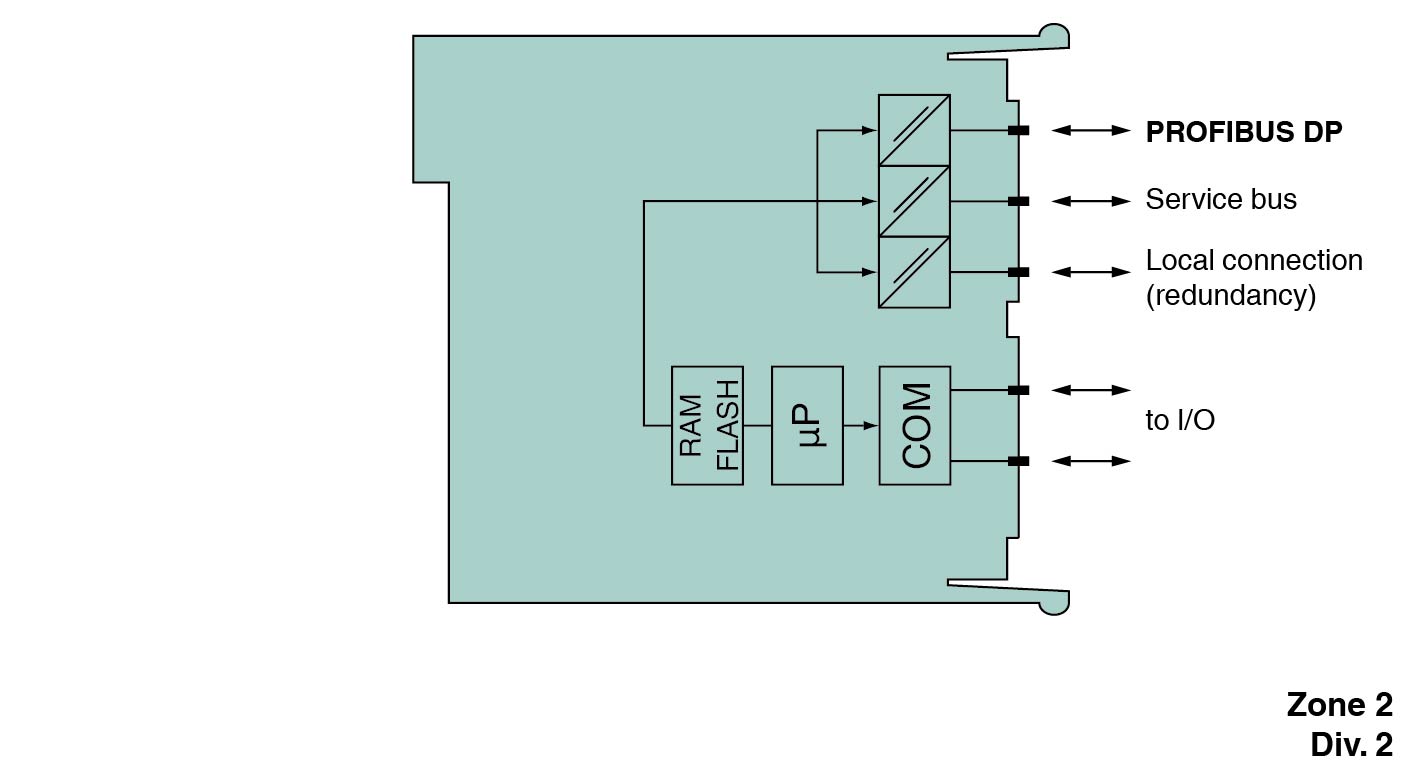

Supply
| Connection | backplane bus |
|---|---|
| Rated voltage | 5 V DC , only in connection with the power supplies LB9*** |
| Power consumption | 2 W |
| Fieldbus type | PROFIBUS DP/DP-V1 |
| PROFIBUS DP | PROFIBUS DP |
| Connection9-pin Sub-D socket via backplaneBaud rateup to 1.5 MBit/sProtocolPROFIBUS DP/DP V1 read/write services | Connection9-pin Sub-D socket via backplaneBaud rateup to 1.5 MBit/sProtocolPROFIBUS DP/DP V1 read/write services |
| Number of stations per bus line | max. 125 (PROFIBUS), max. 119 (service bus) |
| Cyclic process data | 240 bytes in total, either input or output data |
| Number of stations per bus segment | max. 31 (RS-485 standard) |
| Number of repeaters between Master and Slave | max. 3 |
| Supported I/O modules | all LB remote I/O modules |
| Bus length | max. 1000 m (FOL, 1.5 MBaud), max. 1000 m (copper cable, 187.5 kBd), max. 200 m (copper cable, 1.5 MBd) |
| Addressing | via configuration software |
| PROFIBUS address | 0 ... 126 (factory standard setting: 126) |
| GSE file | CGV61712.gsd/gse |
| HART communication | via PROFIBUS or service bus |
| Time stamping (10 ms) | 1000 events via LB1007 |
| Connection | 9-pin Sub-D socket via backplane |
| Baud rate | up to 1.5 MBit/s |
| Protocol | PROFIBUS DP/DP V1 read/write services |
| Connection | backplane bus |
| Redundancy | via backplane |
| LED indication | LED 1 (power supply): On = operating, fast flash = cold start, slow flash = HCIR loading active LED 2 (collective alarm): On = internal fault, flashing = no PROFIBUS connection LED 3 (status process bus): flashing = PROFIBUS receive channel active LED 4 (status service bus): flashing = service bus receive channel active LED 5 (operating mode): flashing 1 (1:1 ratio) = active, normal operation; flashing 2 (7:1 ratio) = active, simulation LED 6 (status process bus): flashing = PROFIBUS response channel active LED 7 (status servicebus): flashing = service bus response channel active |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1 | Directive 2014/30/EUEN 61326-1 |
| Directive 2014/30/EU | EN 61326-1 |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | IEC 60529 |
| Fieldbus standard | IEC 61158-2 |
| Environmental test | EN 60068-2-14 |
| Shock resistance | EN 60068-2-27 |
| Vibration resistance | EN 60068-2-6 |
| Damaging gas | EN 60068-2-42 |
| Relative humidity | EN 60068-2-56 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 (module) , mounted on backplane |
| Connection | via backplane |
| Mass | approx. 120 g |
| Dimensions | Dimensions |
| Height100 mmWidth32.5 mmDepth102 mm | Height100 mmWidth32.5 mmDepth102 mm |
| Height | 100 mm |
| Width | 32.5 mm |
| Depth | 102 mm |
| Certificate | PF 08 CERT 1234 X |
| Marking II 3 G Ex nA IIC T4 Gc | Marking II 3 G Ex nA IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2009 EN 60079-11:2007 EN 60079-15:2010 | Directive 2014/34/EUEN 60079-0:2009 EN 60079-11:2007 EN 60079-15:2010 |
| Marking | II 3 G Ex nA IIC T4 Gc |
| Directive 2014/34/EU | EN 60079-0:2009 EN 60079-11:2007 EN 60079-15:2010 |
| ATEX approval | PF 08 CERT 1234 X |
| UL approval | E106378 |
| Control drawing116-0321Approved forcUL (Canada): CL I Zn. 2 IIC; IS circuits for CL I Zn. 0 IIC ULus (USA): CL I Div. 2 Grp. A, B, C, D; IS circuits for CL I, II, III Div. 1 Grp. A, B, C, D, E, F, G | Control drawing116-0321Approved forcUL (Canada): CL I Zn. 2 IIC; IS circuits for CL I Zn. 0 IIC ULus (USA): CL I Div. 2 Grp. A, B, C, D; IS circuits for CL I, II, III Div. 1 Grp. A, B, C, D, E, F, G |
| IECEx approval | BVS 09.0037X |
| Approved forEx nA IIC T4 Gc | Approved forEx nA IIC T4 Gc |
| EAC approval | Russia: RU C-IT.MIII06.B.00129 |
| Marine approval | Marine approval |
| Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV | Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV |
| Control drawing | 116-0321 |
| Approved for | cUL (Canada): CL I Zn. 2 IIC; IS circuits for CL I Zn. 0 IIC ULus (USA): CL I Div. 2 Grp. A, B, C, D; IS circuits for CL I, II, III Div. 1 Grp. A, B, C, D, E, F, G |
| Approved for | Ex nA IIC T4 Gc |
| Lloyd Register | 15/20021 |
| DNV GL Marine | TAA0000034 |
| American Bureau of Shipping | T1450280/UN |
| Bureau Veritas Marine | 22449/B0 BV |
| System information | The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
