LB8109H0908

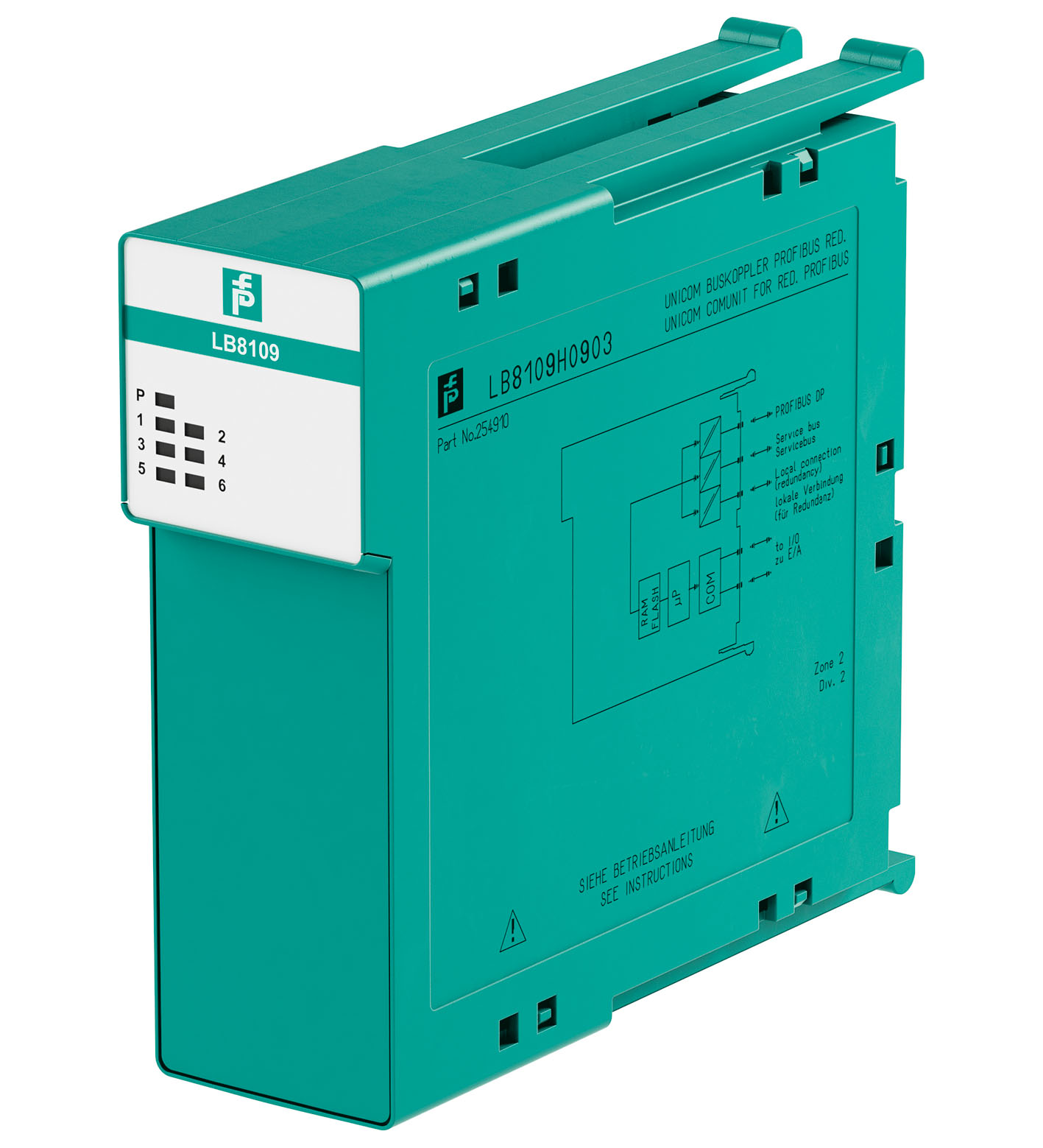

LB8109H0908 Unicom Com Unit for PROFIBUS DP/DP-V1

订货号: 70106282
产品分类: LB系列

Unicom com unit for PROFIBUS DP/DP-V1, the com unit leads intrinsically safe and secure inputs and outputs from sensors and actuators to PROFIBUS

查看规格参数资料与附件

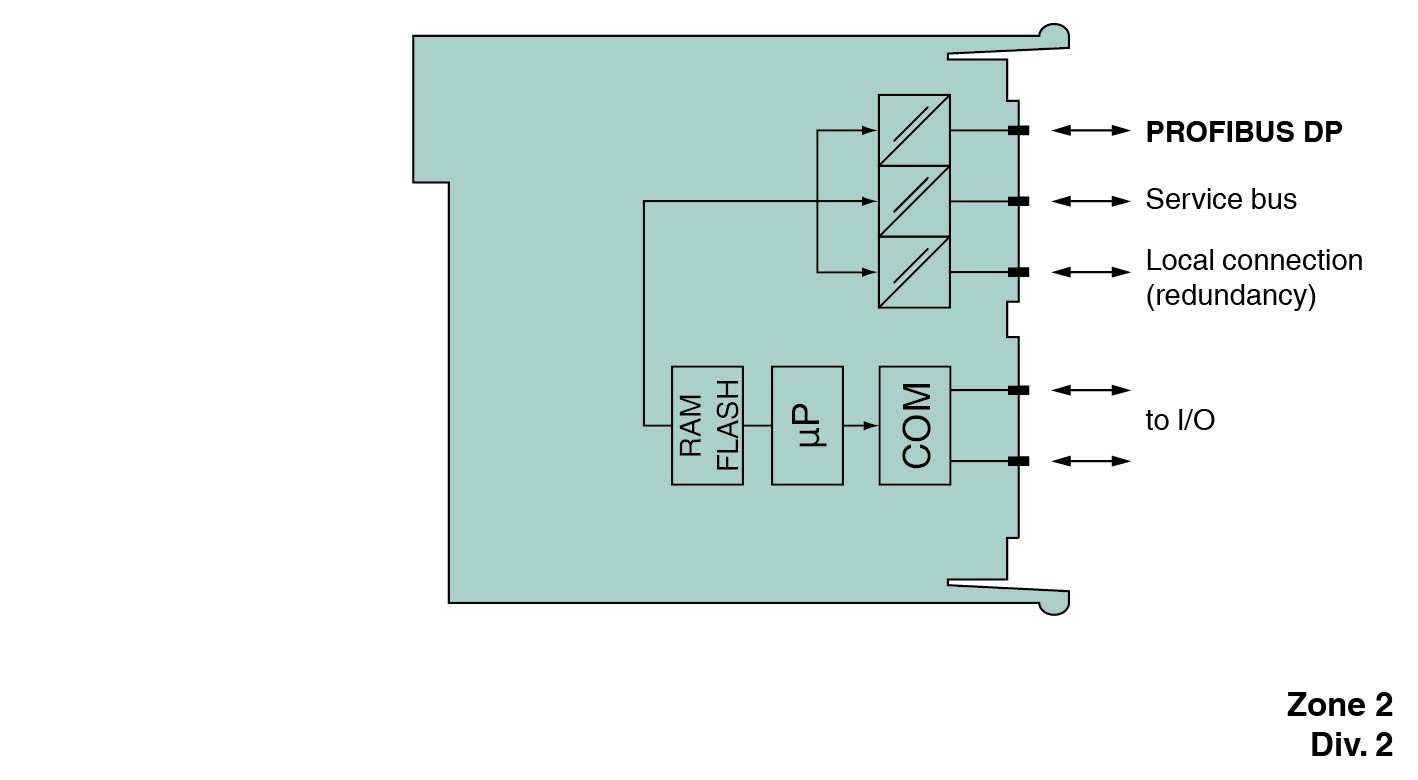

TECHNICAL DATA

规格参数

Supply

Connection	backplane bus
Rated voltage	5 V DC , only in connection with the power supplies LB9***
Power dissipation	1.8 W
Power consumption	1.8 W
Fieldbus type	PROFIBUS DP/DP-V1
PROFIBUS DP	PROFIBUS DP
Connection9-pin Sub-D socket via backplaneBaud rateup to 1.5 MBit/sProtocolPROFIBUS DP/DP V1 read/write services	Connection9-pin Sub-D socket via backplaneBaud rateup to 1.5 MBit/sProtocolPROFIBUS DP/DP V1 read/write services
Number of stations per bus line	max. 125 (PROFIBUS), max. 119 (service bus)
Cyclic process data	240 bytes input and (simultaneously) 240 bytes output
Number of stations per bus segment	max. 31 (RS-485 standard)
Number of repeaters between Master and Slave	max. 3
Supported I/O modules	all LB remote I/O modules
Configuration (240 bytes I/O)	Standard: 80 analog, 184 digital Universal 2I2O: 48 analog, 184 digital Universal 4I4O: 60 analog, 120 digital
Bus length	max. 1000 m (FOL, 1.5 MBaud), max. 1000 m (copper cable, 187.5 kBd), max. 200 m (copper cable, 1.5 MBd)
Addressing	via configuration software
PROFIBUS address	0 ... 126 (factory standard setting: 126)
GSE file	PFV61710.gsd/gse
HART communication	via PROFIBUS or service bus
Connection	9-pin Sub-D socket via backplane
Baud rate	up to 1.5 MBit/s
Protocol	PROFIBUS DP/DP V1 read/write services
Connection	backplane bus
Redundancy	via backplane
LED indication	LED P: (power supply): On = operating, fast flash = cold start LED 1: (collective alarm): On = internal fault, flashing = no fieldbus connection LED 2: (operating mode): flashing 1 (1:1 ratio) = active, normal operation; flashing 2 (7:1 ratio) = active, simulation LED 3: (status fieldbus): flashing = fieldbus receive channel active LED 4: (status fieldbus): flashing = fieldbus response channel active LED 5: (status service bus): flashing = service bus receive channel active LED 6: (status service bus): flashing = service bus response channel active
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1	Directive 2014/30/EUEN 61326-1
Directive 2014/30/EU	EN 61326-1
Electromagnetic compatibility	NE 21
Degree of protection	IEC 60529
Fieldbus standard	IEC 61158-2
Environmental test	EN 60068-2-14
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Damaging gas	EN 60068-2-42
Relative humidity	EN 60068-2-78
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Altitude	max. 2000 m
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20 (module) , mounted on backplane
Connection	via backplane
Mass	approx. 120 g
Dimensions	Dimensions
Height100 mmWidth32.5 mmDepth102 mm	Height100 mmWidth32.5 mmDepth102 mm
Height	100 mm
Width	32.5 mm
Depth	102 mm
Certificate	PF 08 CERT 1234 X
Marking II 3 G Ex nA IIC T4 Gc	Marking II 3 G Ex nA IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010
Marking	II 3 G Ex nA IIC T4 Gc
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010
ATEX approval	PF 08 CERT 1234 X
UL approval	E106378
IECEx approval	IECEx approval
IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA IIC T4 Gc	IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA IIC T4 Gc
IECEx certificate	IECEx BVS 09.0037X
IECEx marking	Ex nA IIC T4 Gc
System information	The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
