LB8111A2-0756

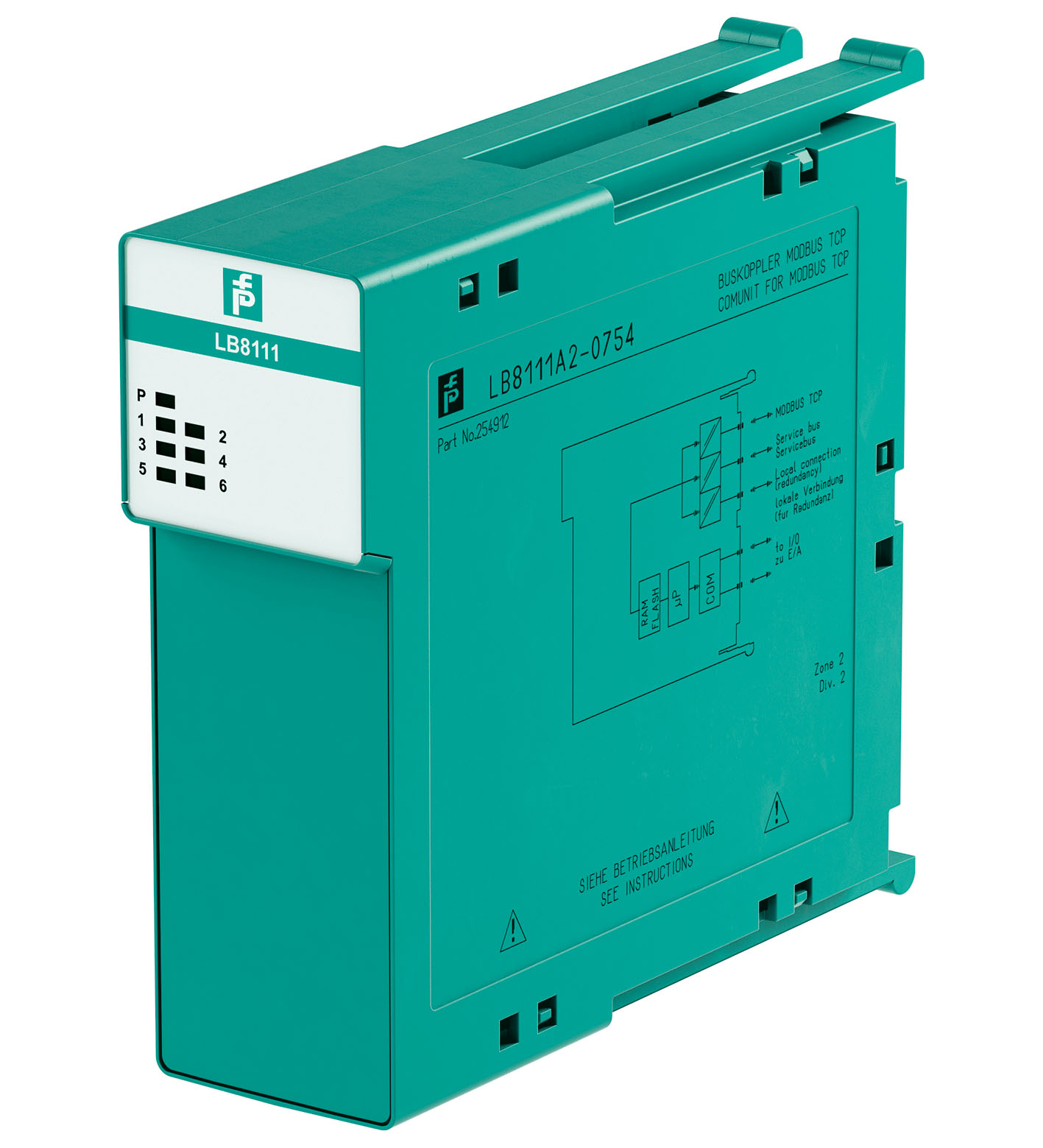

LB8111A2-0756 Com Unit for MODBUS TCP

订货号: 287583
产品分类: LB系列

Com Unit for MODBUS TCP

查看规格参数资料与附件

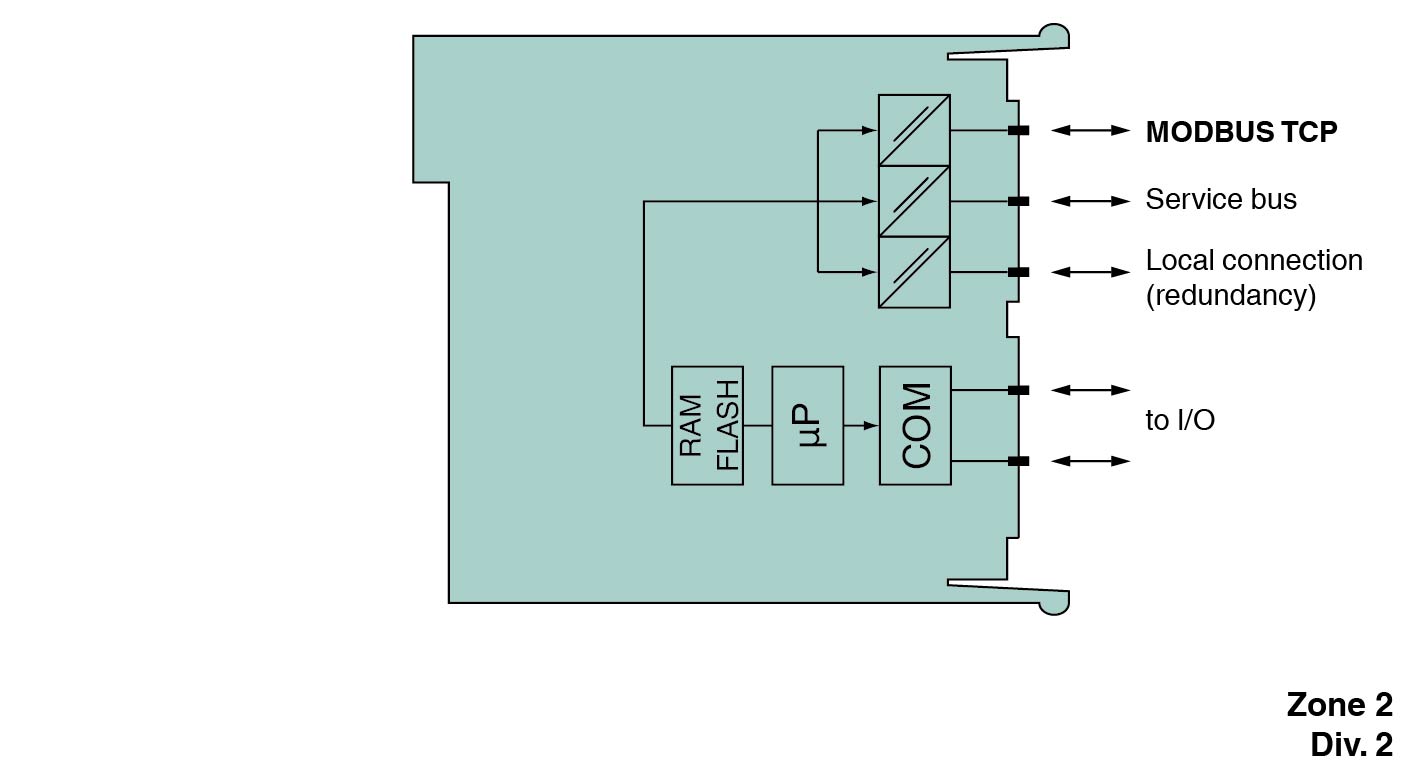

TECHNICAL DATA

规格参数

Supply

Connection	backplane bus
Rated voltage	5 V DC , only in connection with the power supplies LB9***
Power dissipation	2.5 W
Power consumption	2.5 W
Fieldbus type	MODBUS TCP
Connection type	RJ-45 , via backplane
Transfer rate	10 MBit/s
Station connection	directly to PCS or PLC or via hubs or switches
Bus length	max. 100 m (CAT 7 cable)
Addressing	IP address assigned via Ethernet
Ethernet address	IP V4 address (factory standard setting: 0.0.0.0, auto IP, DHCP)
Number of channels per station	max. 80 analog, max. 184 digital
Supported I/O modules	all LB remote I/O modules
HART communication	via Ethernet or service bus
Connection	backplane bus
Redundancy	via backplane
Connection	9-pole to RS 485 standard , Sub-D
Number of stations per bus line	31 (RS-485 standard)
LED indication	LED P: (power supply): On = operating, fast flash = cold start LED 1: (collective alarm): On = internal fault, flashing = no fieldbus connection LED 2: (operating mode): flashing 1 (1:1 ratio) = active, normal operation; flashing 2 (7:1 ratio) = active, simulation LED 3: (status fieldbus): flashing = fieldbus receive channel active LED 4: (status fieldbus): flashing = fieldbus response channel active LED 5: (status service bus): flashing = service bus receive channel active LED 6: (status service bus): flashing = service bus response channel active
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1	Directive 2014/30/EUEN 61326-1
Directive 2014/30/EU	EN 61326-1
Degree of protection	IEC 60529
Fieldbus standard	IEEE 802.3
Environmental test	EN 60068-2-14
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Damaging gas	EN 60068-2-42
Relative humidity	EN 60068-2-78
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Altitude	max. 2000 m
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20 (module) , mounted on backplane
Connection	via backplane
Mass	approx. 150 g
Dimensions	Dimensions
Height100 mmWidth32.5 mmDepth102 mm	Height100 mmWidth32.5 mmDepth102 mm
Height	100 mm
Width	32.5 mm
Depth	102 mm
Certificate	PF 08 CERT 1234 X
Marking II 3 G Ex nA IIC T4 Gc	Marking II 3 G Ex nA IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010
Marking	II 3 G Ex nA IIC T4 Gc
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010
ATEX approval	PF 08 CERT 1234 X
UL approval	E106378
IECEx approval	IECEx approval
IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA IIC T4 Gc	IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA IIC T4 Gc
IECEx certificate	IECEx BVS 09.0037X
IECEx marking	Ex nA IIC T4 Gc
System information	The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
