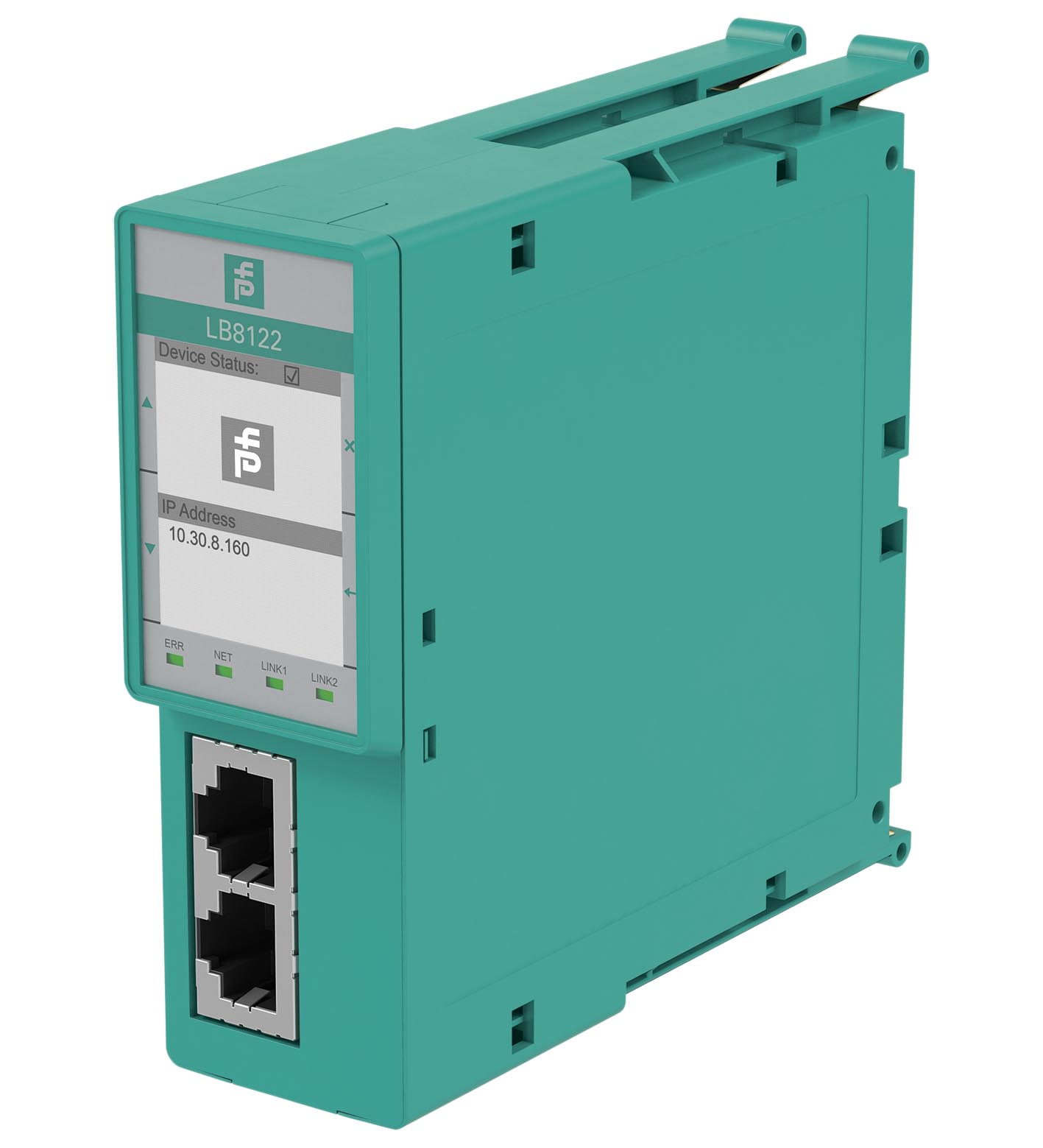

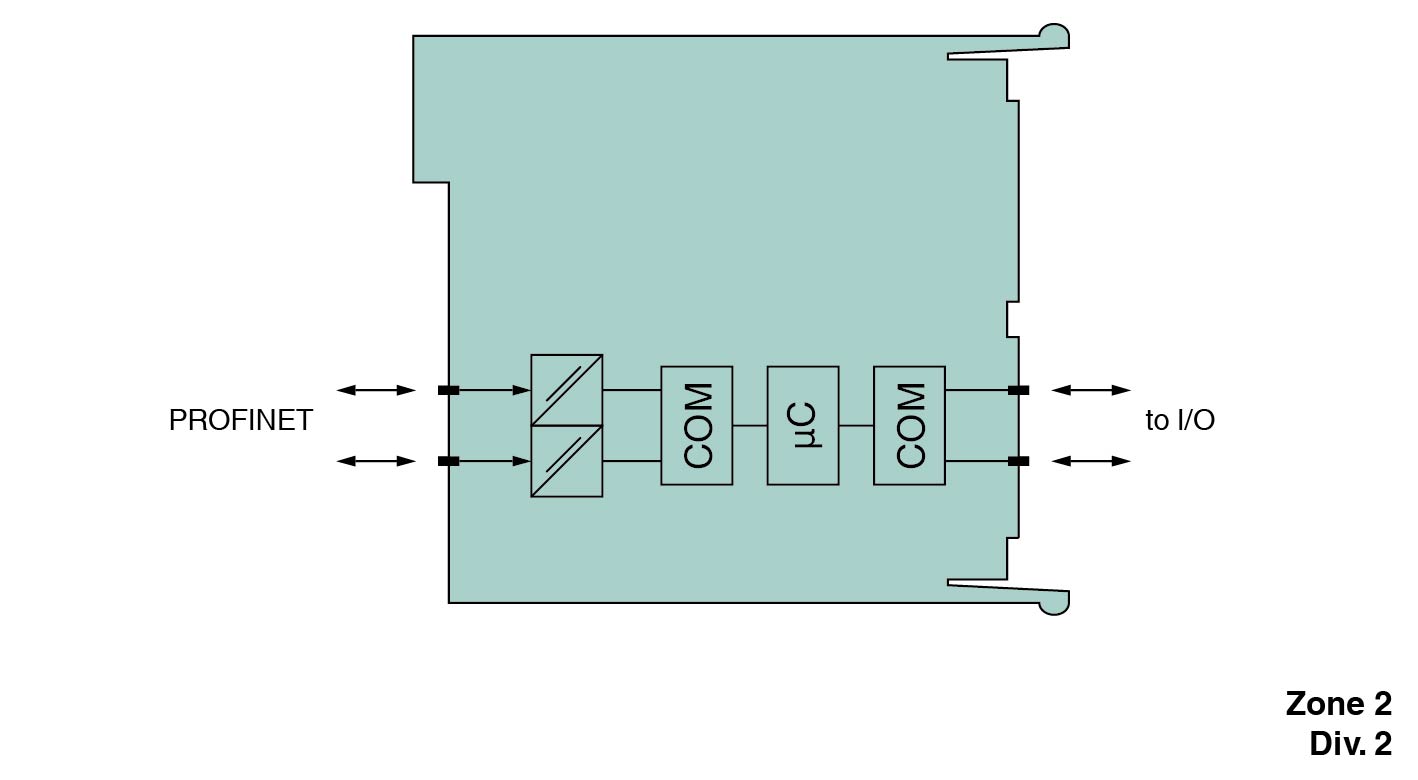

LB8122A.1.EL Gateway for PROFINET

订货号: 70120382
产品分类: LB系列

Gateway for PROFINET

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Supply

Connection	backplane bus
Rated voltage	12 V DC , only in connection with the power supplies LB9***
Nominal voltage	12 V DC ,
Power dissipation	4.53 W
Power consumption	4.53 W
Fieldbus type	PROFINET
Connection type	RJ-45 , via front connector
Transfer rate	10BASE-T, 100BASE-TX 100 MBit/s
Station connection	directly to PCS or PLC or via hubs or switches
Cable type	SFTP in accordance with ISO/IEC 11801 for Cat 5e or better
Bus length	max. 100 m per link
Addressing	DHCP, via controller (DCP) or fixed IP address
Ethernet address	IP V4 address (preset: DHCP on, changeable via display)
Supported I/O modules	LB1x01…LB1x03, LB1x08, LB1x09, LB2x01…LB2x17, LB3x01…LB3x06, LB4x01, LB4x02, LB4x04…LB4x06, LB5x01, LB5x02, LB5x04…LB5x06, LB6x01, LB6x05, LB6x06, LB6x08, LB6x10…LB6x17, LB7x04*
PROFINET conformance class	CC B
Connection	backplane bus
Ethernet/other circuits	basic insulation according to IEC/EN 61010-1, rated insulation voltage 35 Veff or 50 V DC
RS 485 interface/other circuits	basic insulation according to IEC/EN 61010-1, rated insulation voltage 35 Veff or 50 V DC
Insulation voltage	1500 V AC acc. to IEEE 802.3u
Power supply, internal bus/other circuits	basic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Degree of protection	IEC 60529
Fieldbus standard	IEEE 802.3
Environmental test	EN 60068-2-14
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Damaging gas	EN 60068-2-42
Relative humidity	EN 60068-2-78
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-25 ... 85 °C (-13 ... 185 °F)
Relative humidity	95 % non-condensing
Altitude	max. 2000 m
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20 (module) , mounted on backplane
Connection	via backplane
Mass	approx. 150 g
Dimensions	Dimensions
Height100 mmWidth32.5 mmDepth102 mm	Height100 mmWidth32.5 mmDepth102 mm
Height	100 mm
Width	32.5 mm
Depth	102 mm
Certificate	DEMKO 16 ATEX 1780 X
Marking II 3 G Ex ec IIC T4 Gc	Marking II 3 G Ex ec IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-7:2015+A1:2018	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-7:2015+A1:2018
Marking	II 3 G Ex ec IIC T4 Gc
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN 60079-7:2015+A1:2018
ATEX approval	DEMKO 16 ATEX 1780 X
IECEx approval	IECEx UL 16.0141 X
Approved forEx ec IIC T4 Gc	Approved forEx ec IIC T4 Gc
Approved for	Ex ec IIC T4 Gc
System information	The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
