TECHNICAL DATA
规格参数
General specifications
| Design / Mounting | Outside installation |
|---|---|

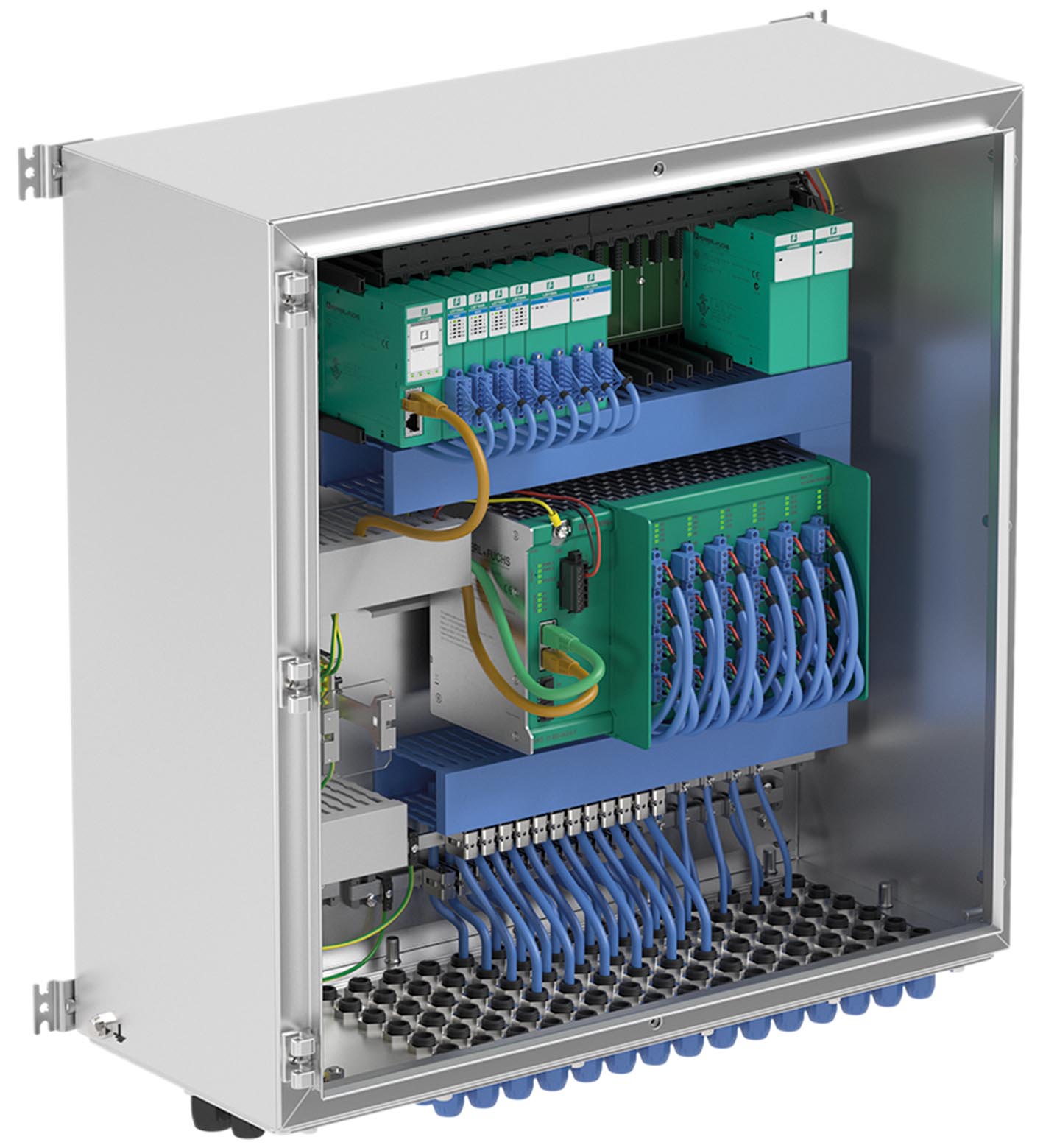

| Installed components | Ethernet-APL rail field switch ARS1*-B2-I**-** , For technical data on installed electronic component see datasheets. |
| Fieldbus support | PROFIBUS PA (optional) |
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
| Ambient temperature | -40 ... 40 °C (-40 ... 104 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation |
| Impact resistance | 7J |
| Enclosure cover | Hinged door with captive retaining screws |
| Degree of protection | IP66 |
| Cable entry | cable gland and stopping plug options see separate table |
| Material | Material |
| HousingStainless steel 1.4404 / AISI 316LSurfacebrushedSealSilicone, fire-resistant, one piece, foamedMaterial thicknessenclosure body, enclosure cover, mounting plate: 1.5 mm | HousingStainless steel 1.4404 / AISI 316LSurfacebrushedSealSilicone, fire-resistant, one piece, foamedMaterial thicknessenclosure body, enclosure cover, mounting plate: 1.5 mm |
| Dimensions | (W x H x D) 600 x 600 x 260 mm |
| Mounting | thru-holes Ø 7 mm |
| Grounding | grounding bolt M6 , brass, nickel-plated |
| Housing | Stainless steel 1.4404 / AISI 316L |
| Surface | brushed |
| Seal | Silicone, fire-resistant, one piece, foamed |
| Material thickness | enclosure body, enclosure cover, mounting plate: 1.5 mm |
| EU-type examination certificate | EU-type examination certificate |
| Marking II 3(1/2)G Ex eb nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tb [ia Da/ib Db/ic] IIIC T130°C Dc | Marking II 3(1/2)G Ex eb nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tb [ia Da/ib Db/ic] IIIC T130°C Dc |
| Certificate | PF 16 CERT 1267 X |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2018 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 | Directive 2014/34/EUEN 60079-0:2018 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
| Marking | II 3(1/2)G Ex eb nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tb [ia Da/ib Db/ic] IIIC T130°C Dc |
| Directive 2014/34/EU | EN 60079-0:2018 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
