TECHNICAL DATA
规格参数
Electrical specifications
| Rated voltage | 60 V AC/DC |
|---|---|
| Rated current | 1 A |
| Interface type | PROFIBUS DP |
| Transfer rate | max. 12 MBit/s |
| Connector pinout | 3, 5, 6, 8 |
| Ambient temperature | -20 ... 75 °C (-4 ... 167 °F) |
| Storage temperature | -25 ... 80 °C (-13 ... 176 °F) |
| Core cross section | max. 1.5 mm2 |
| Cable diameter | 7.6 ... 8.4 mm |
| Cable gland | screw terminals |
| Material | Material |
| Housingmetallized ABS | Housingmetallized ABS |
| Mass | approx. 40 g |

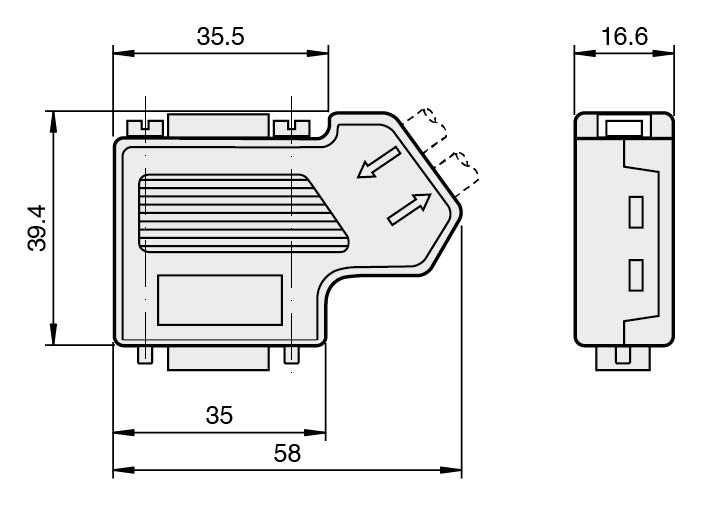

| Dimensions | (W x H x D) 58 mm x 39.4 mm x 16.6 mm |
| Housing | metallized ABS |
| Marine approval | Marine approval |
| Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV | Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV |
| Lloyd Register | 15/20021 |
| DNV GL Marine | TAA0000034 |
| American Bureau of Shipping | T1450280/UN |
| Bureau Veritas Marine | 22449/B0 BV |
