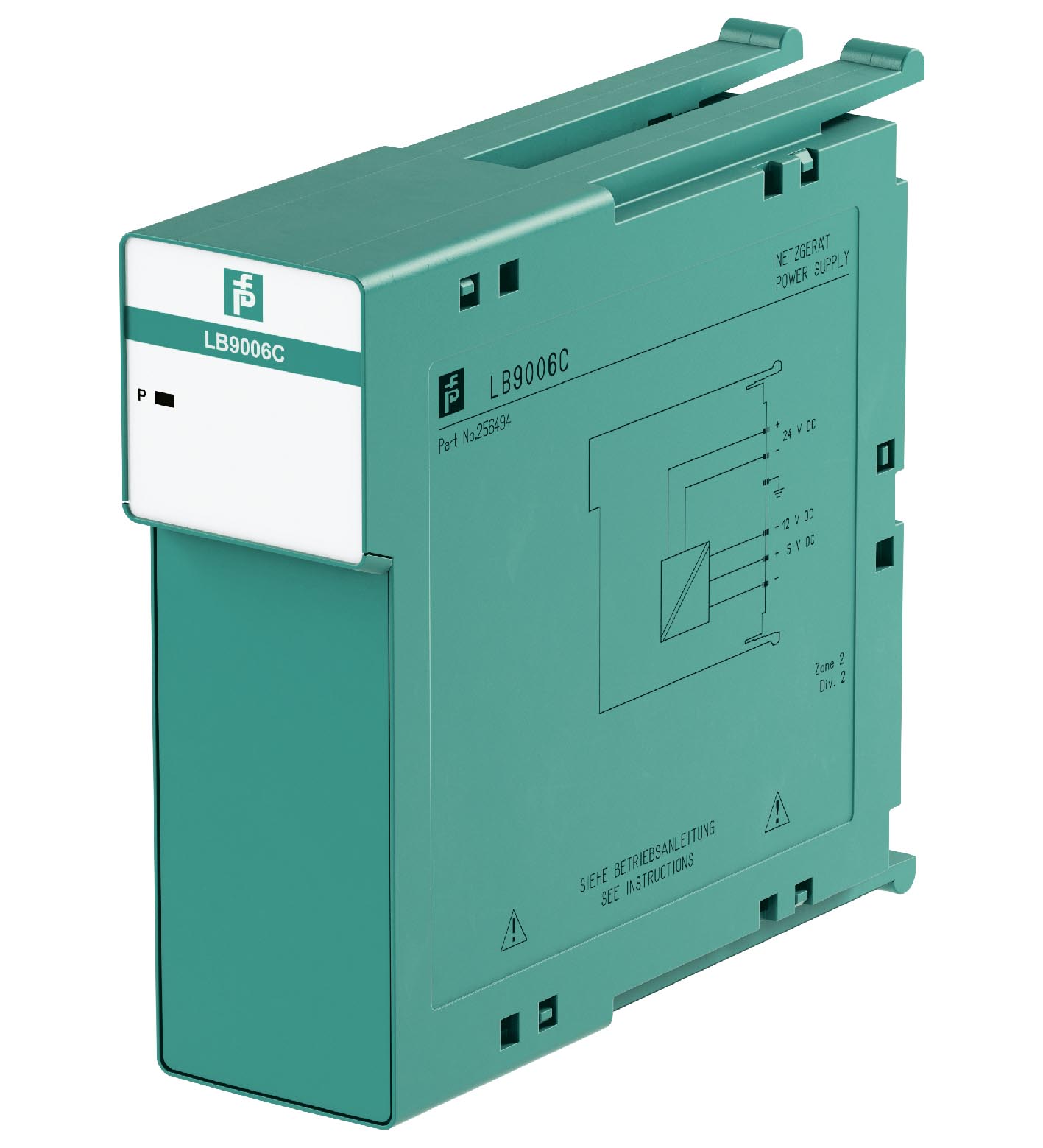

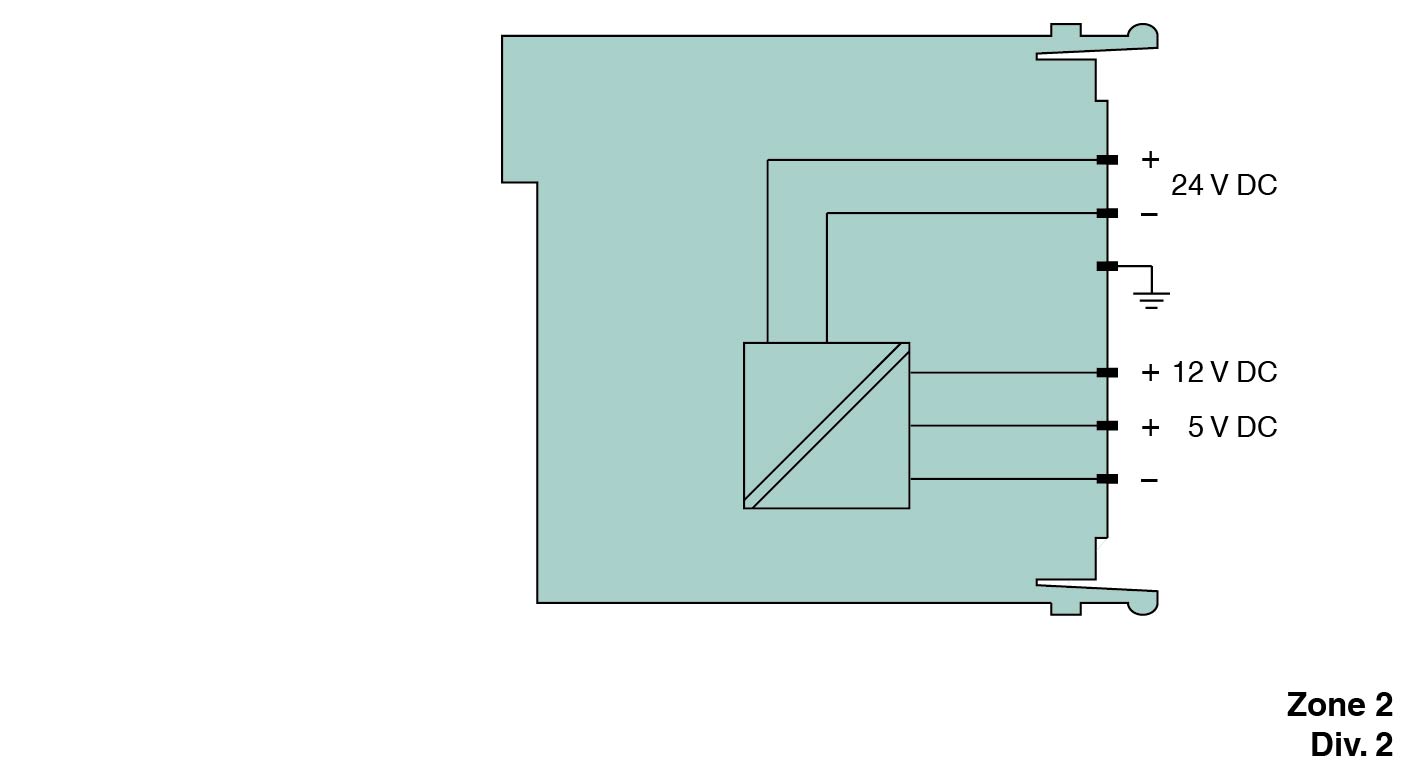

LB9006C Power supply

订货号: 256494
产品分类: LB系列

Power supply

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Slots

Bus coupler	2
I/O modules	>12, depending on the type
Maximum safe voltage Um	60 V DC (SELV/PELV)
Input voltage range	18 ... 32 V DC (SELV/PELV)
Power dissipation	approx. 15 % of power consumption
Power consumption	max. 30 W for Zone 2 applicationsmax. 45 W for applications in safe areaparallel connection with other LB9006C (autom. power sharing)
Inrush current	1.5 A (10 ms)
Voltage	5.4 V DC +/- 5% , 12 V DC + 4/- 2%
Power	P5V ≤ 5.4 W, P12V ≤ 25 W - P5V for Zone 2 applicationsP5V ≤ 5.4 W, P12V ≤ 39 W - P5V for applications in safe area
LED indication	Power LED (P) green: OFF in case of loss of 24 V or 12 V or 5 V
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21
Degree of protection	IEC 60529
Environmental test	EN 60068-2-14
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Damaging gas	EN 60068-2-42
Relative humidity	EN 60068-2-78
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Altitude	max. 2000 m
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20 (module) , mounted on backplane
Mass	approx. 220 g
Dimensions	Dimensions
Height100 mmWidth32.5 mmDepth102 mm	Height100 mmWidth32.5 mmDepth102 mm
Height	100 mm
Width	32.5 mm
Depth	102 mm
Certificate	PF 08 CERT 1234 X
Marking II 3 G Ex nA IIC T4 Gc	Marking II 3 G Ex nA IIC T4 Gc
Galvanic isolation	Galvanic isolation
Output/power supply, internal busEN 60950-1 (Safety requirement: < 60 V, external supply SELV/PELV)	Output/power supply, internal busEN 60950-1 (Safety requirement: < 60 V, external supply SELV/PELV)
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-15:2010
Marking	II 3 G Ex nA IIC T4 Gc
Output/power supply, internal bus	EN 60950-1 (Safety requirement: < 60 V, external supply SELV/PELV)
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN 60079-15:2010
ATEX approval	PF 08 CERT 1234 X
UL approval	E106378
IECEx approval	IECEx approval
IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA IIC T4 Gc	IECEx certificateIECEx BVS 09.0037XIECEx markingEx nA IIC T4 Gc
IECEx certificate	IECEx BVS 09.0037X
IECEx marking	Ex nA IIC T4 Gc
System information	The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure.
Supplementary information	EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
