TECHNICAL DATA
规格参数

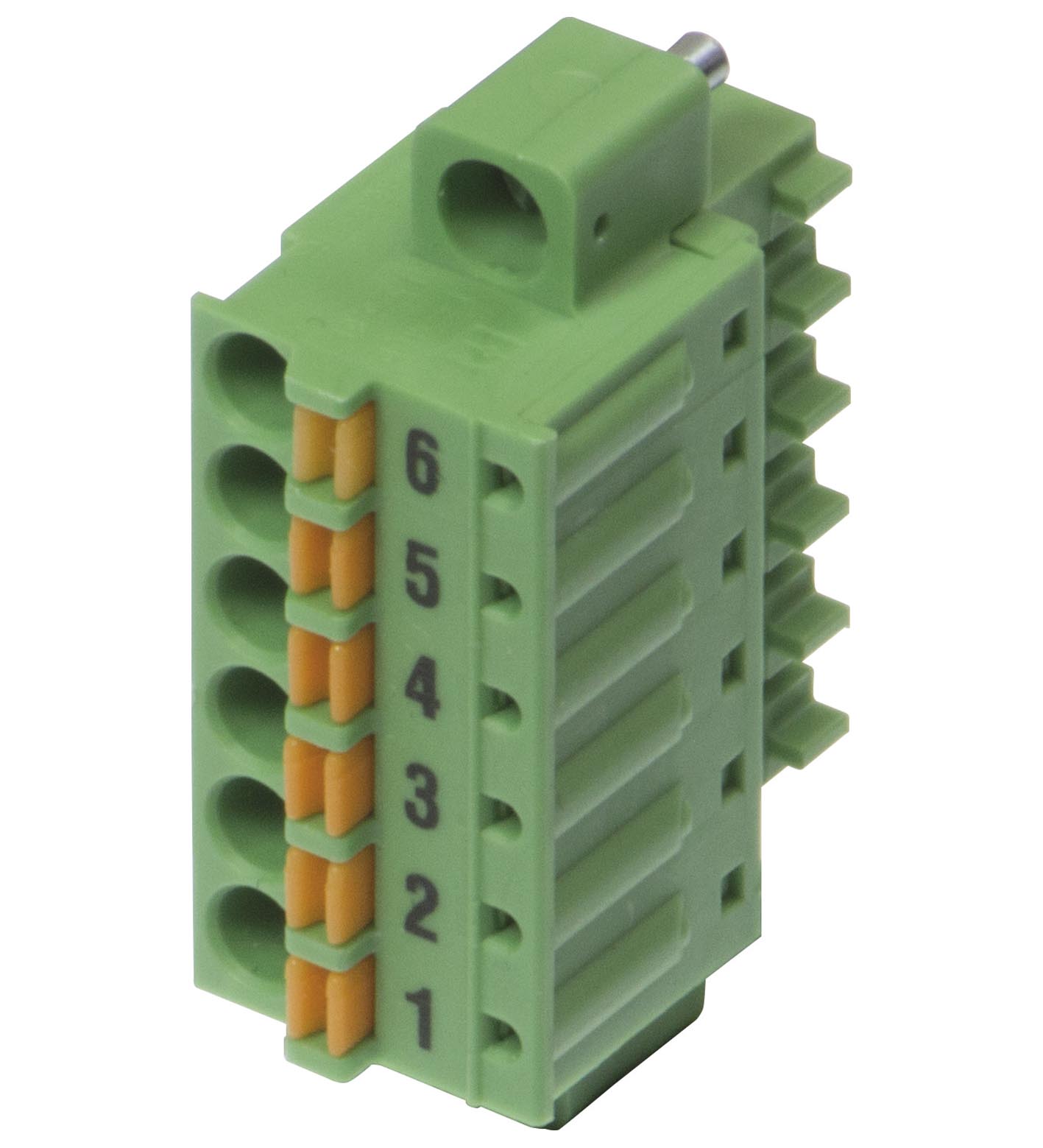

General specifications
| Number of pins | 6 |
|---|---|
| Labeling | 1 ... 6 |
| Rated voltage | 160 V |
| Rated current | 8 A |
| Core cross section | 0.14 ... 1.5 mm2 |
| Housing | green |
| Mass | approx. 5 g |

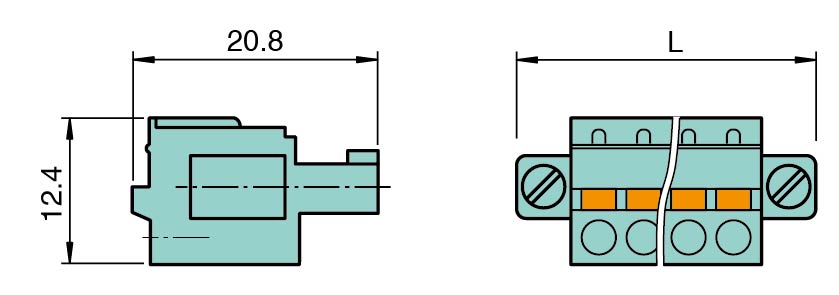

| Dimensions | (W x H x D) 33.3 mm x 12.4 mm x 20.8 mm |
| Height12.4 mmWidth33.3 mmDepth20.8 mm | Height12.4 mmWidth33.3 mmDepth20.8 mm |
| Construction type | spring terminal |
| Height | 12.4 mm |
| Width | 33.3 mm |
| Depth | 20.8 mm |
| EAC approval | Russia: RU C-IT.MIII06.B.00129 |
| Marine approval | Marine approval |
| Lloyd Register15/20021American Bureau of ShippingT1450280/UN | Lloyd Register15/20021American Bureau of ShippingT1450280/UN |
| Lloyd Register | 15/20021 |
| American Bureau of Shipping | T1450280/UN |
