TECHNICAL DATA
规格参数
General specifications

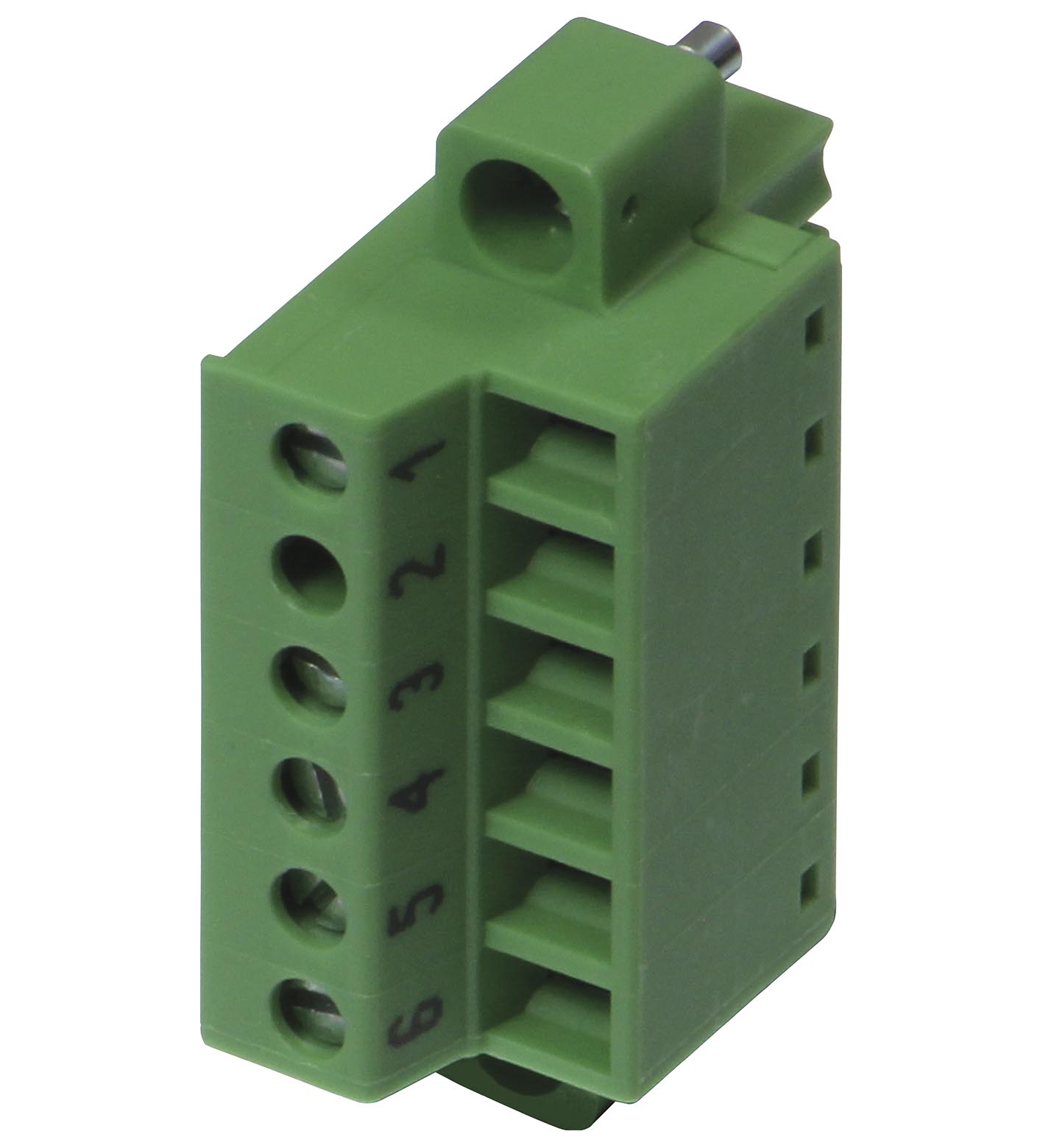

| Number of pins | 6 |
|---|---|
| Labeling | 1 ... 6 |
| Rated voltage | 160 V |
| Rated current | 8 A |
| Core cross section | 0.14 ... 1.5 mm2 |
| Housing | green |
| Mass | approx. 5 g |

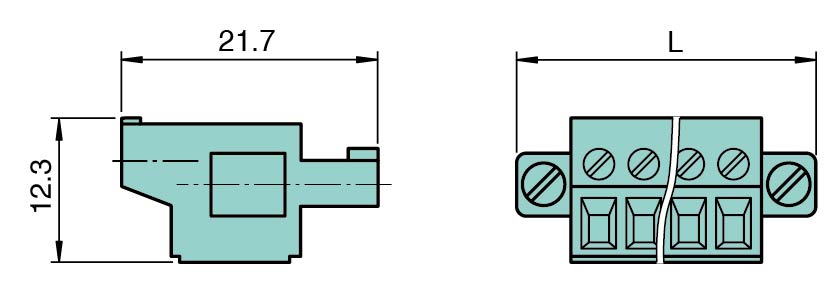

| Dimensions | (W x H x D) 33.3 mm x 12.3 mm x 21.7 mm |
| Height12.3 mmWidth33.3 mmDepth21.7 mm | Height12.3 mmWidth33.3 mmDepth21.7 mm |
| Construction type | front screw terminal |
| Height | 12.3 mm |
| Width | 33.3 mm |
| Depth | 21.7 mm |
| EAC approval | Russia: RU C-IT.MIII06.B.00129 |
| Marine approval | Marine approval |
| Lloyd Register15/20021American Bureau of ShippingT1450280/UN | Lloyd Register15/20021American Bureau of ShippingT1450280/UN |
| Lloyd Register | 15/20021 |
| American Bureau of Shipping | T1450280/UN |
