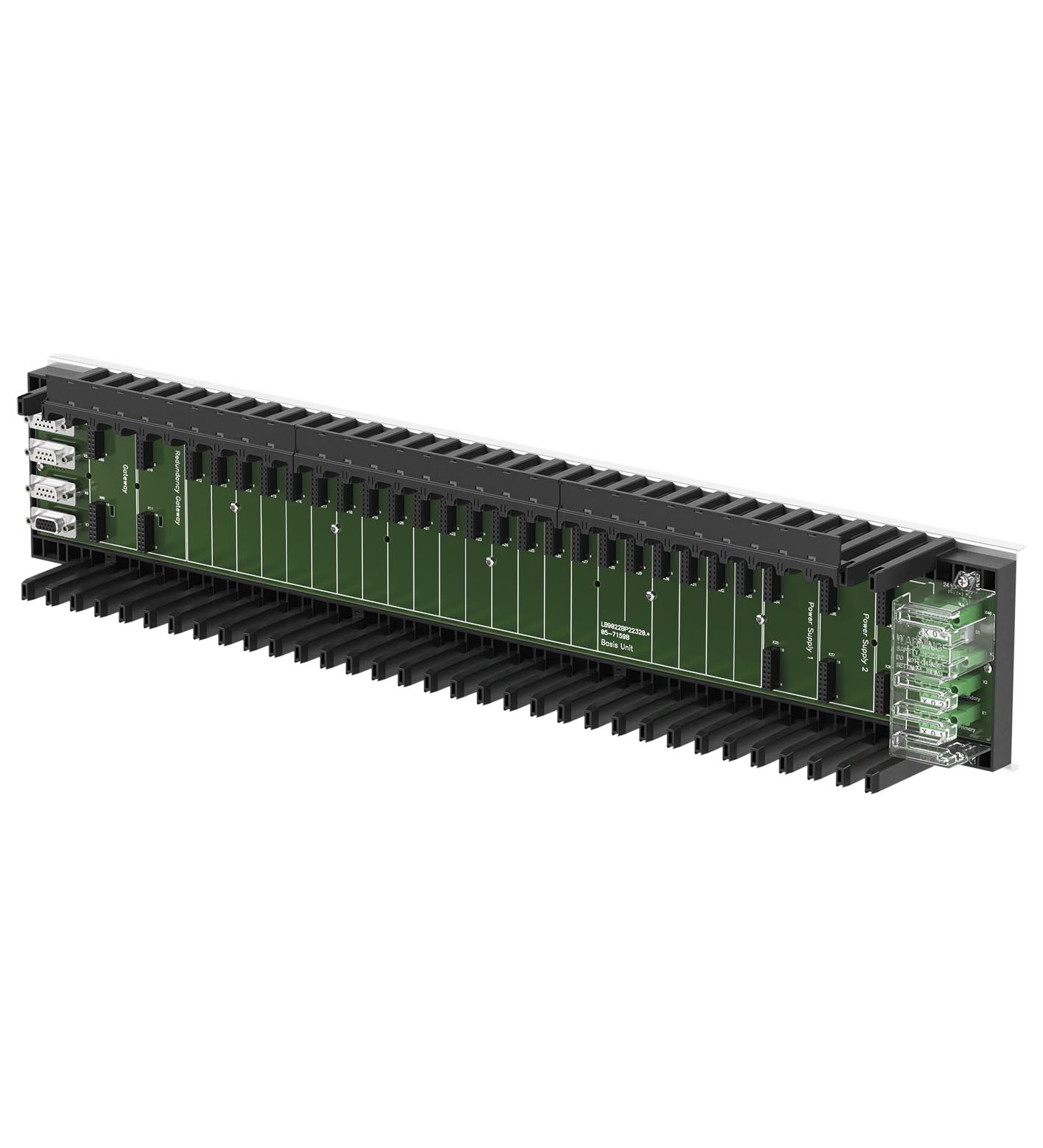

TECHNICAL DATA
规格参数
General specifications
| Suitable components | Extension Backplane LB9024BP24300.2 Bus Coupler LB8106* , LB8107* , LB8108* , LB8109* , LB8122* |
|---|---|
| Bus coupler | 2 |
| Supply | 3 |
| Output shut-down | 5 SIL2 output shutdown segmentsslots 3 ... 5, 6 ... 10, 11 ... 15, 16 ... 20, 21 ... 24 |
| I/O modules (single width) | max. 22 |
| I/O modules (dual width) | max. 11 |
| Maximum safe voltage Um | 60 V DC (SELV/PELV) |
| Input voltage range | 18 ... 32 V DC (SELV/PELV) |
| Redundancy | yes |
| Fieldbus type | PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU , depends on bus coupler |
| Redundancy | yes |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Electromagnetic compatibility | NE 21 |
| Degree of protection | EN 60529 |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) , 70 °C (non-Ex) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Altitude | max. 2000 m |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 |
| Mass | approx. 2170 g |
| Dimensions | (W x H x D) 605 x 127 x 80 mm (23.8 x 5 x 3.15 inch) , without modules |
| Height127 mmWidth605 mmDepth80 mm | Height127 mmWidth605 mmDepth80 mm |
| Height | 127 mm |
| Width | 605 mm |
| Depth | 80 mm |
| Certificate | BVS 16 ATEX E 089 X |
| Marking II 3G Ex ec IIC T4 Gc | Marking II 3G Ex ec IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-7:2015+A1:2018 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-7:2015+A1:2018 |
| Marking | II 3G Ex ec IIC T4 Gc |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 EN 60079-7:2015+A1:2018 |
| IECEx approval | IECEx BVS 16.0047X |
| Approved forEx ec IIC T4 Gc | Approved forEx ec IIC T4 Gc |
| Approved for | Ex ec IIC T4 Gc |
| Supplementary information | Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
