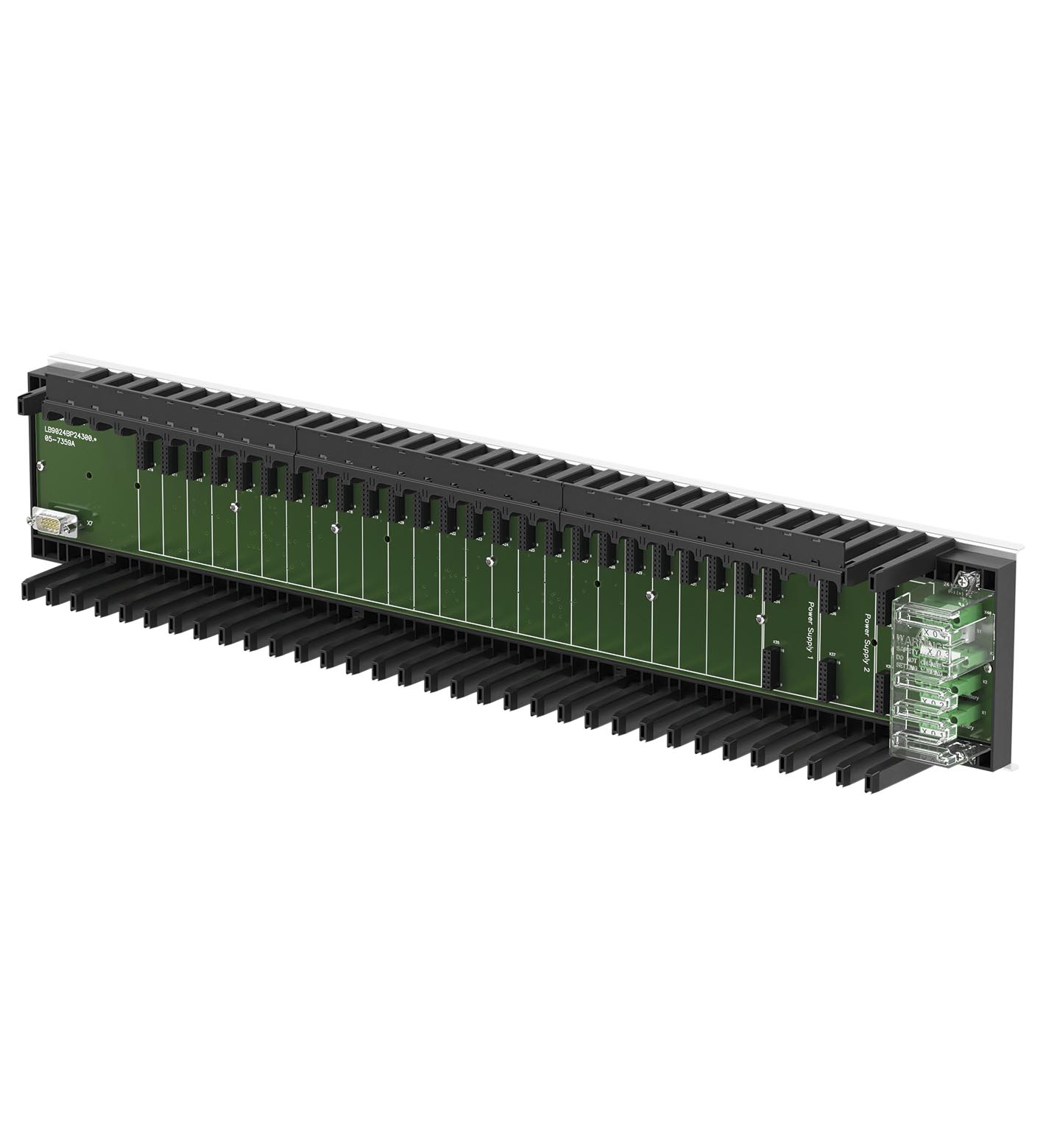

LB9024BP24300.1 Extension Backplane

订货号: 282731
产品分类: LB系列

Extension Backplane

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Suitable components	Backplane LB9022BP22320.0.E , LB9022BP22320.0.F , LB9022BP22320.1
Supply	3
Output shut-down	5 SIL2 output shutdown segmentsslots 25 ... 29, 30 ... 34, 35 ... 39, 40 ... 44, 45 ... 48
I/O modules (single width)	max. 24
I/O modules (dual width)	max. 12
Maximum safe voltage Um	60 V DC (SELV/PELV)
Input voltage range	18 ... 32 V DC (SELV/PELV)
Redundancy	yes
Fieldbus type	PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU/TCP , depending on the base backplane
Redundancy	yes
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21
Degree of protection	EN 60529
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F) , 70 °C (non-Ex)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Altitude	max. 2000 m
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20
Mass	approx. 1800 g
Dimensions	(W x H x D) 605 x 127 x 80 mm (23.8 x 5 x 3.15 inch) , without modules
Height127 mmWidth605 mmDepth80 mm	Height127 mmWidth605 mmDepth80 mm
Height	127 mm
Width	605 mm
Depth	80 mm
Certificate	BVS 16 ATEX E 089 X
Marking II 3 G Ex nA IIC T4 Gc	Marking II 3 G Ex nA IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-15:2010
Marking	II 3 G Ex nA IIC T4 Gc
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN 60079-15:2010
UL approval	E106378
Control drawing116-0321	Control drawing116-0321
IECEx approval	IECEx BVS 16.0047X
Approved forEx nA IIC T4 Gc	Approved forEx nA IIC T4 Gc
Control drawing	116-0321
Approved for	Ex nA IIC T4 Gc
Supplementary information	Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
