LB9026BP16210.0.E

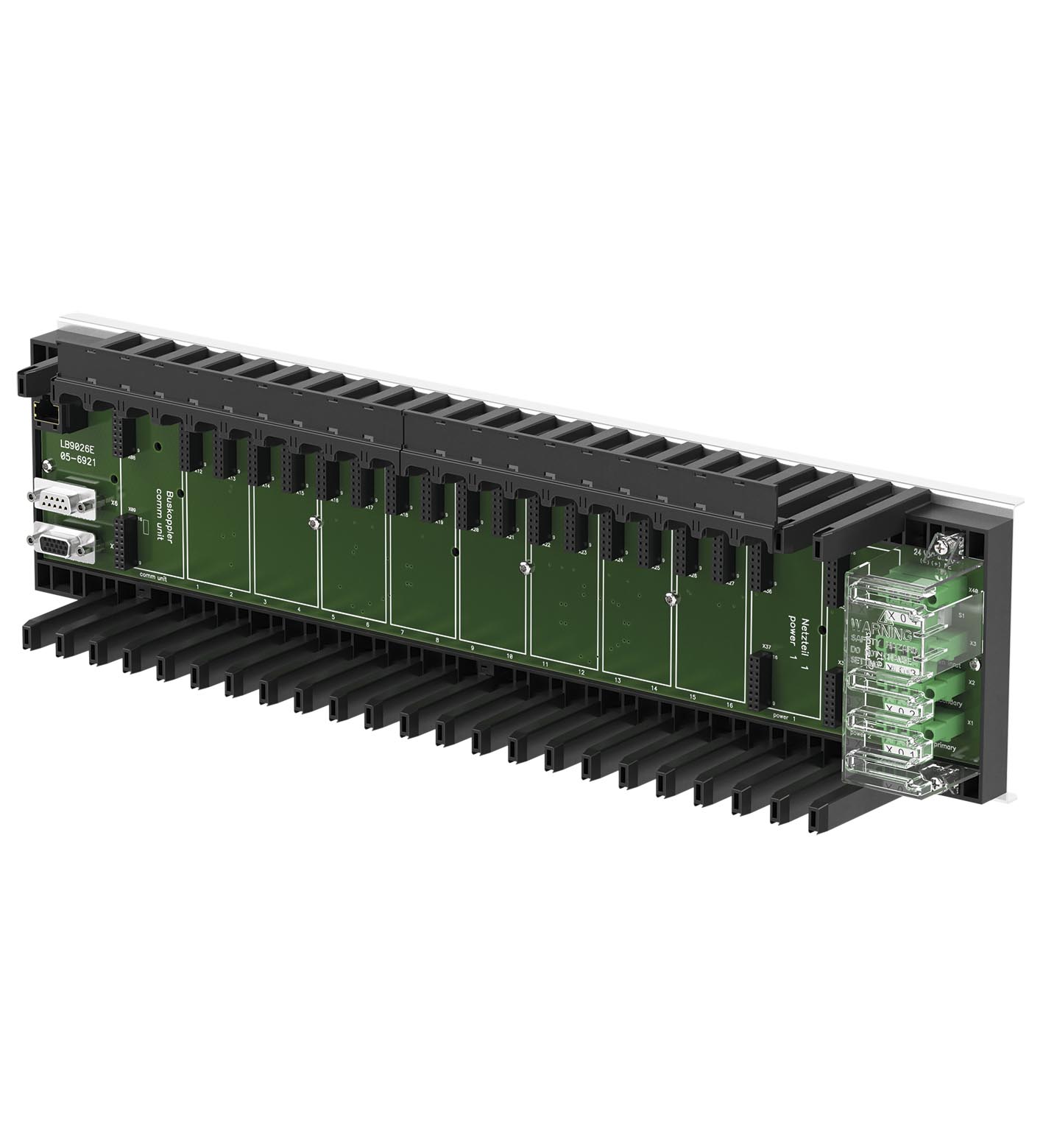

LB9026BP16210.0.E Base Backplane

订货号: 300989
产品分类: LB系列

Base Backplane

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Suitable components	Extension Backplane LB9027BP16200.1 Bus Coupler LB8111A*
Bus coupler	1
Supply	2
I/O modules (single width)	max. 16
I/O modules (dual width)	max. 8
Maximum safe voltage Um	60 V DC (SELV/PELV)
Input voltage range	18 ... 32 V DC (SELV/PELV)
Redundancy	no
Fieldbus type	MODBUS TCP
Redundancy	no
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NE 21
Degree of protection	EN 60529
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F) , 70 °C (non-Ex)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	95 % non-condensing
Altitude	max. 2000 m
Shock resistance	shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18
Vibration resistance	frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance
Damaging gas	designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3
Degree of protection	IP20
Mass	approx. 1370 g
Dimensions	(W x H x D) 440 x 127 x 80 mm (17.3 x 5 x 3.15 inch) , without modules
Height127 mmWidth440 mmDepth80 mm	Height127 mmWidth440 mmDepth80 mm
Height	127 mm
Width	440 mm
Depth	80 mm
Certificate	BVS 16 ATEX E 089 X
Marking II 3 G Ex nA IIC T4 Gc	Marking II 3 G Ex nA IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-15:2010
Marking	II 3 G Ex nA IIC T4 Gc
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 EN 60079-15:2010
UL approval	E106378
Control drawing116-0321	Control drawing116-0321
IECEx approval	BVS 09.0037X
Approved forEx nA IIC T4 Gc	Approved forEx nA IIC T4 Gc
Control drawing	116-0321
Approved for	Ex nA IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
