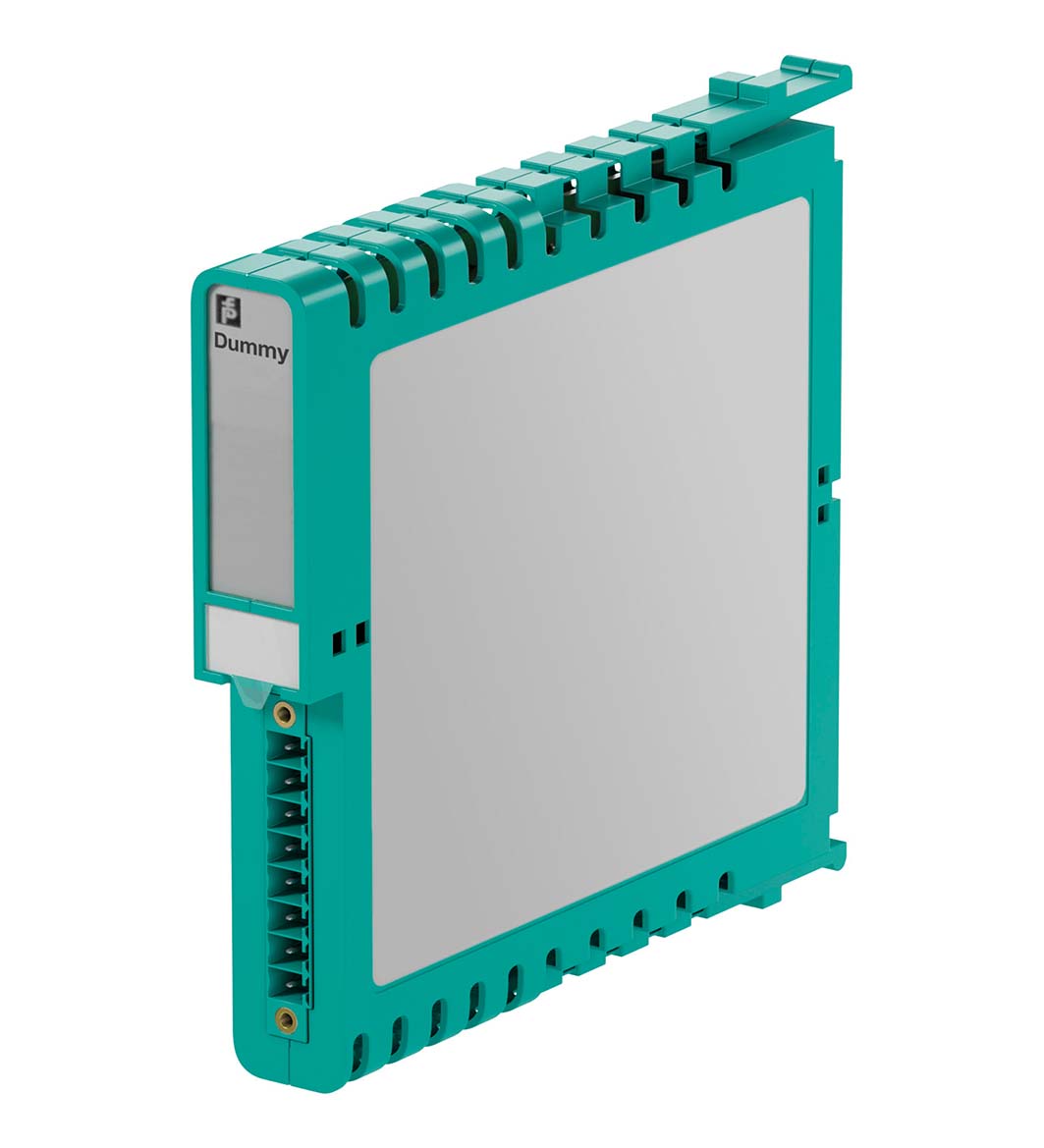

TECHNICAL DATA
规格参数
Supply
| Rated voltage | Use only in connection with the power supplies LB9*** |
|---|---|
| Voltage | EN 61010-1 (Safety requirement: < 60 V, external supply SELV/PELV) |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 95 % non-condensing |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Damaging gas | designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3 |
| Degree of protection | IP20 when mounted on backplane |
| Connection | removable front connector with screw flange (accessory)wiring connection via spring terminals (0.14 ... 1.5 mm2) or screw terminals (0.08 ... 1.5 mm2) |
| Mass | approx. 65 g |
| Dimensions | Dimensions |
| Height100 mmWidth16 mmDepth102 mm | Height100 mmWidth16 mmDepth102 mm |
| Height | 100 mm |
| Width | 16 mm |
| Depth | 102 mm |
| EAC approval | Russia: RU C-IT.MIII06.B.00129 |
| Marine approval | Marine approval |
| Lloyd Register15/20021American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV | Lloyd Register15/20021American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV |
| Lloyd Register | 15/20021 |
| American Bureau of Shipping | T1450280/UN |
| Bureau Veritas Marine | 22449/B0 BV |
| System information | The module has to be mounted in appropriate backplanes (LB9***) in Zone 2 or outside hazardous areas. Here, observe the corresponding declaration of conformity. For use in hazardous areas (e. g. Zone 2, Zone 22 or Div. 2) the module must be installed in an appropriate enclosure. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
