TECHNICAL DATA
规格参数
General specifications

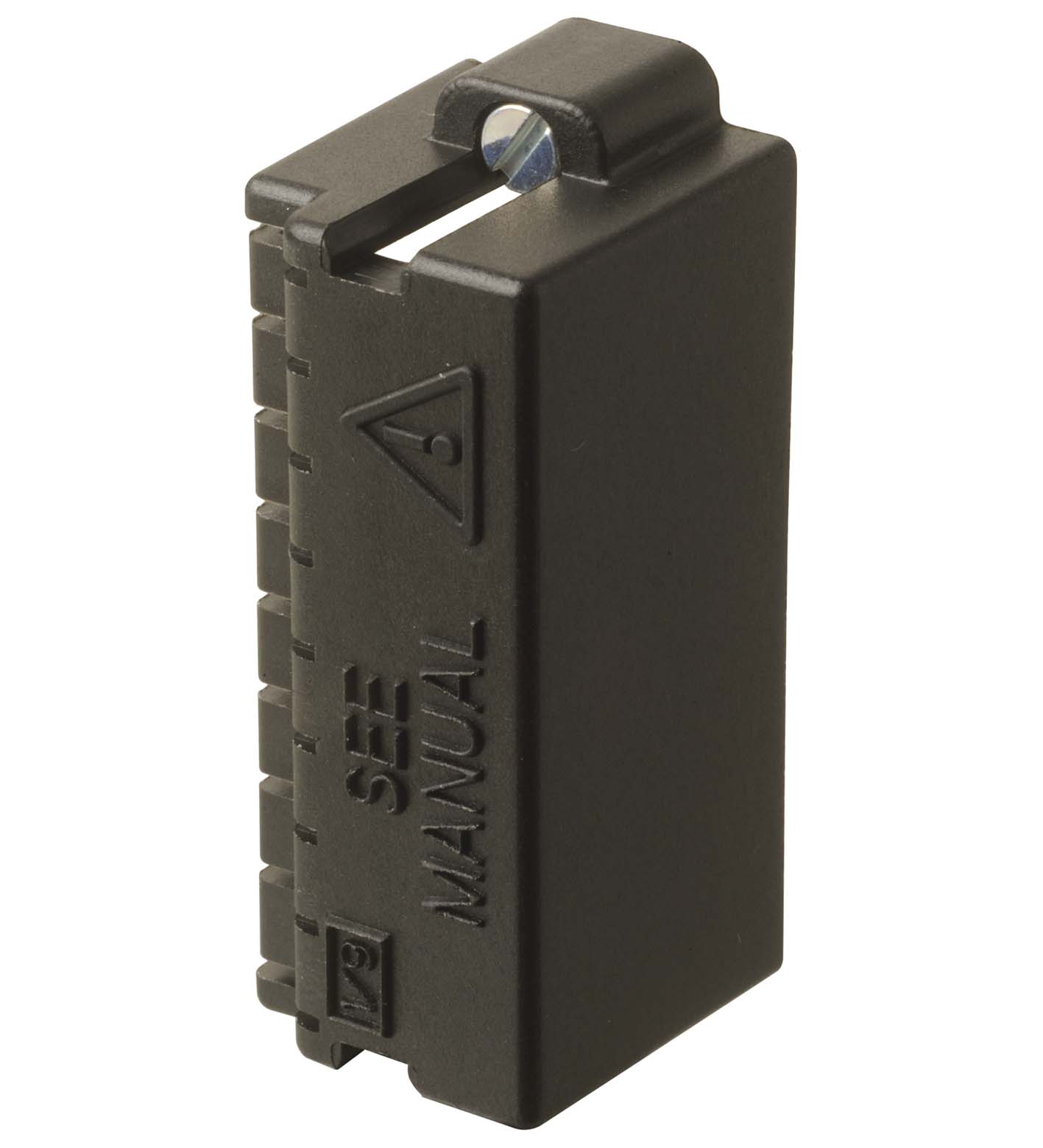

| Description | In order to fit the field wires, the lugs covering the wire entry holes have to be broken off at the corresponding positions. The remaining lugs must stay in place to keep the metal parts covered. |
|---|---|
| Number of pins | 8 |
| Core cross-section | max. 1.5 mm2 |
| Mass | approx. 4 g |

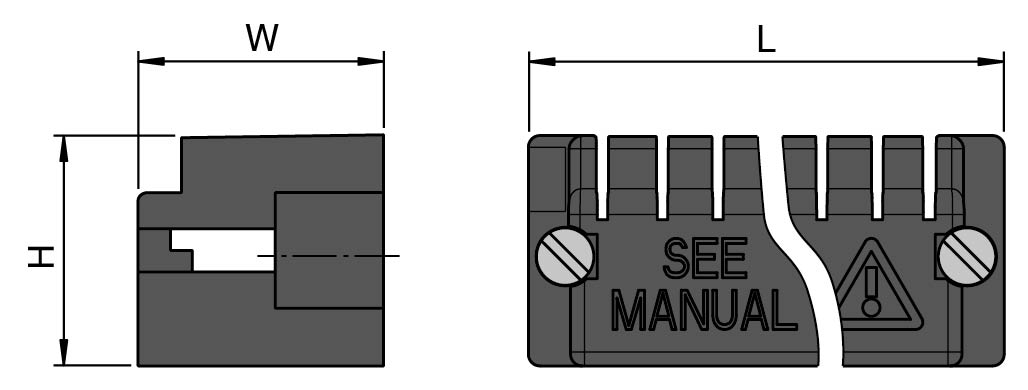

| Dimensions | Dimensions |
| H16 mmW17 mmL40.8 mm | H16 mmW17 mmL40.8 mm |
| H | 16 mm |
| W | 17 mm |
| L | 40.8 mm |
| Packing unit | 5 item(s) |
