LB9107A

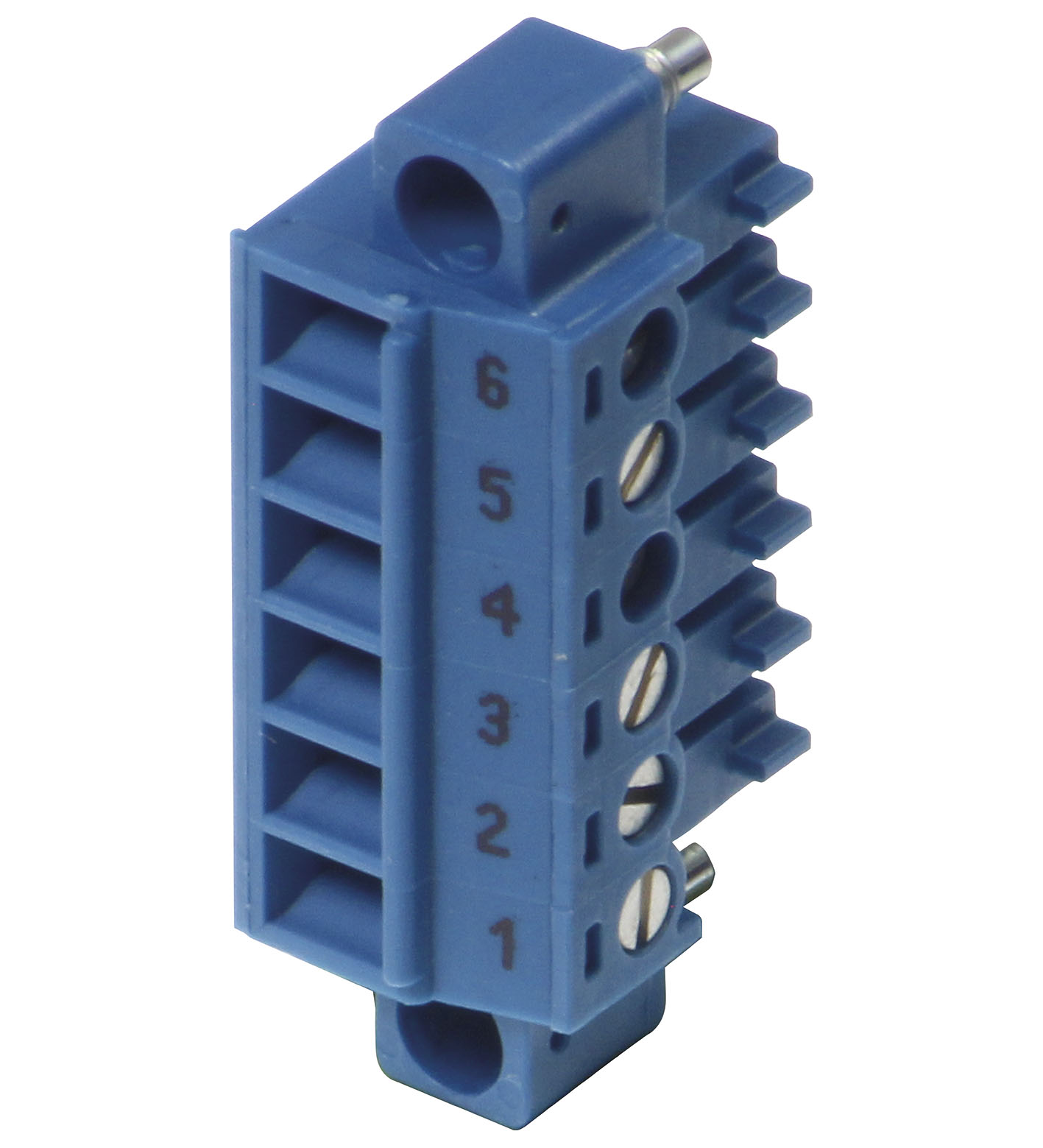

LB9107A Terminal Block

订货号: 542046
产品分类: FB系列

Terminal Block

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Number of pins	6
Labeling	1 ... 6
Rated voltage	160 V
Rated current	8 A
Core cross section	0.14 ... 1.5 mm2
Housing	blue
Mass	approx. 5 g

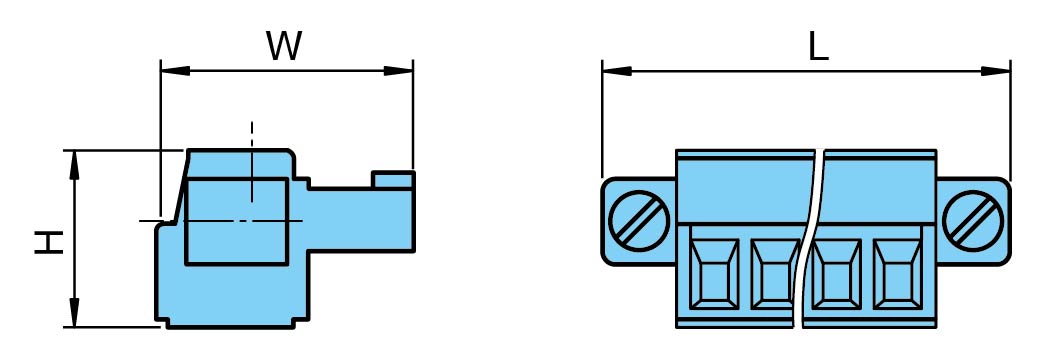

Dimensions	Dimensions
H11.1 mmW15.3 mmL33.3 mmHeight11.1 mmWidth15.3 mmLength33.3 mm	H11.1 mmW15.3 mmL33.3 mmHeight11.1 mmWidth15.3 mmLength33.3 mm
Construction type	screw terminal
H	11.1 mm
W	15.3 mm
L	33.3 mm
Height	11.1 mm
Width	15.3 mm
Length	33.3 mm
