LB9115A

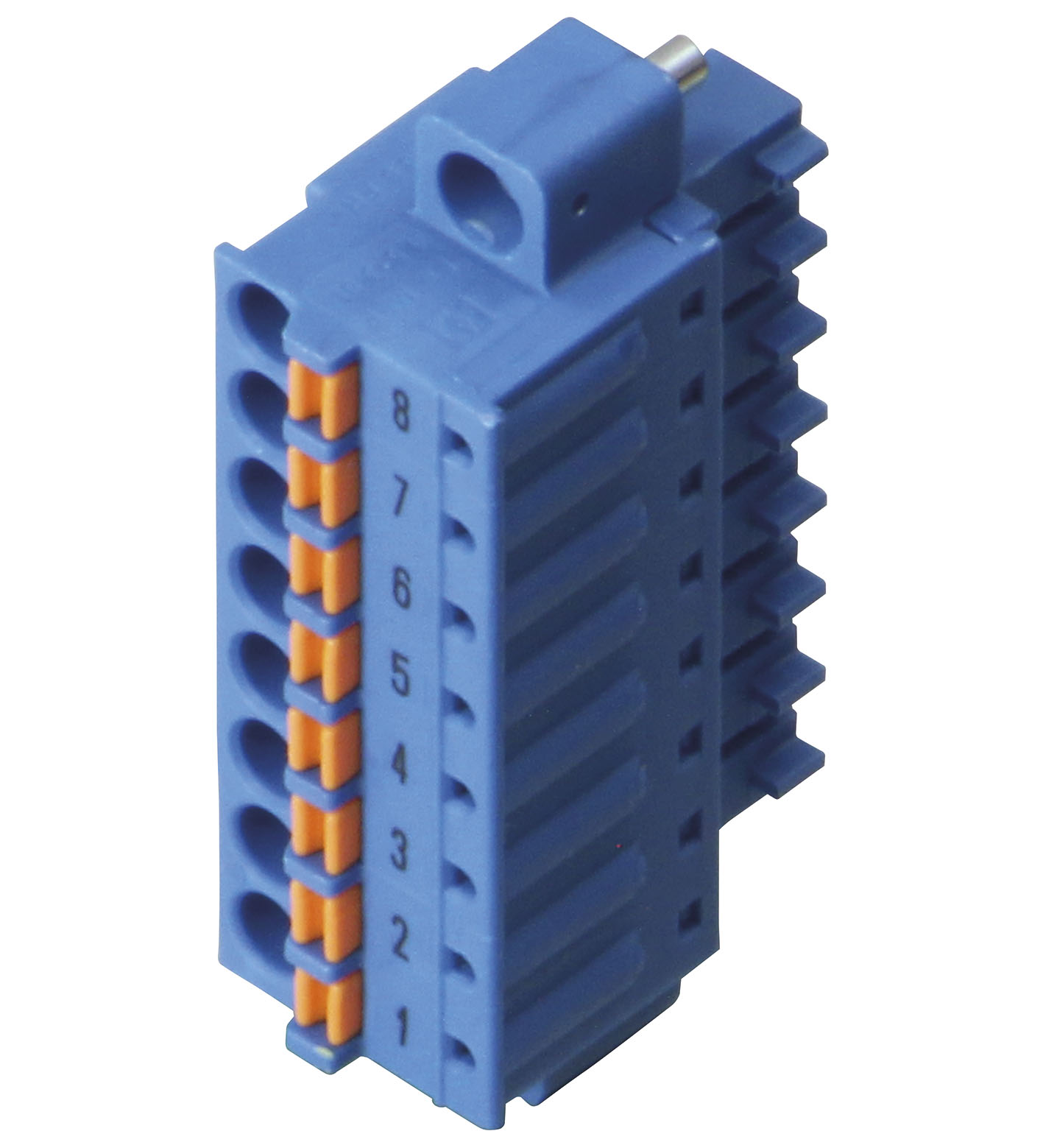

LB9115A Terminal Block

订货号: 542053
产品分类: FB系列

Terminal Block

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Number of pins	8
Labeling	1 ... 8
Rated voltage	160 V
Rated current	8 A
Core cross section	0.14 ... 1.5 mm2
Housing	blue
Mass	approx. 5 g

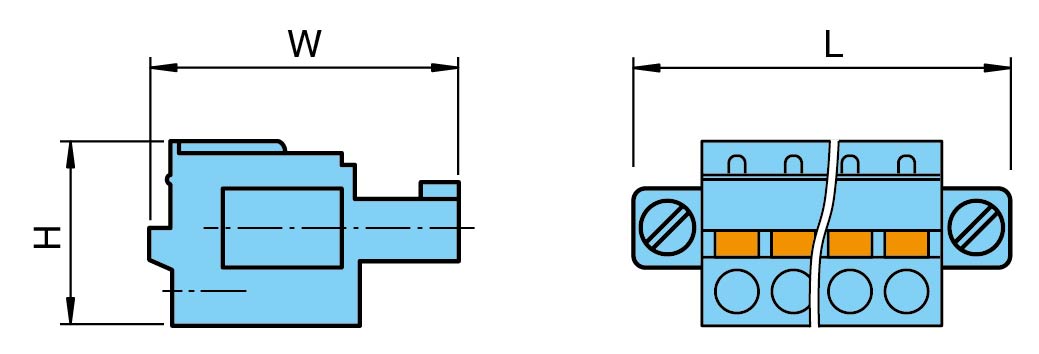

Dimensions	Dimensions
H12.4 mmW20.8 mmL40.9 mmHeight12.4 mmWidth20.8 mmLength40.9 mm	H12.4 mmW20.8 mmL40.9 mmHeight12.4 mmWidth20.8 mmLength40.9 mm
Construction type	spring terminal
H	12.4 mm
W	20.8 mm
L	40.9 mm
Height	12.4 mm
Width	20.8 mm
Length	40.9 mm

DOCUMENTS & DOWNLOADS

资料与附件

产品数据表 Datasheet

语言：en

已就绪 · 可下载下载文件

STP 三维图纸 3-D

已就绪 · 可下载下载文件
