LB9117A

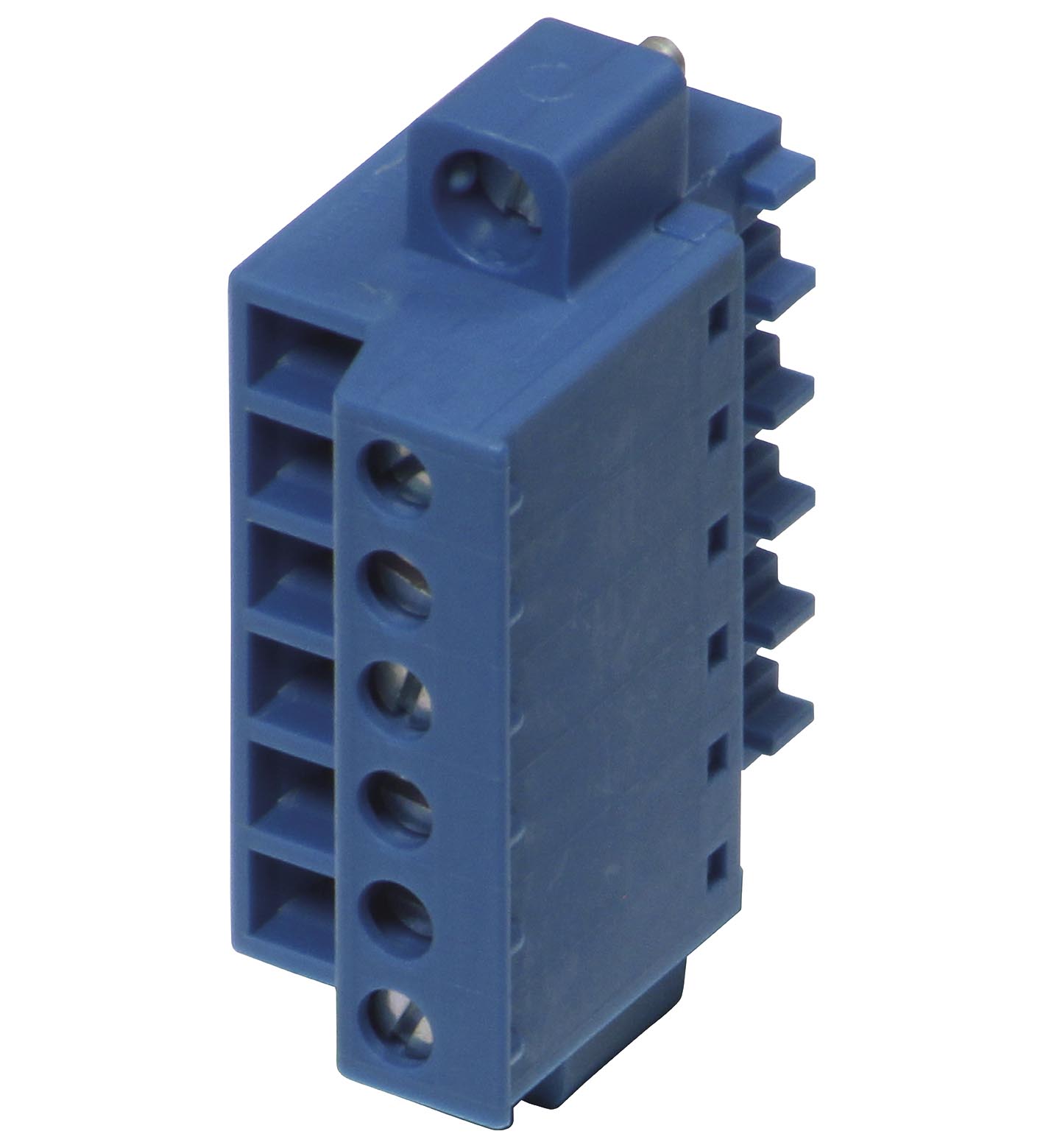

LB9117A Terminal Block

订货号: 542055
产品分类: FB系列

Terminal Block

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Number of pins	6
Labeling	1 ... 6
Rated voltage	160 V
Rated current	8 A
Core cross section	0.14 ... 1.5 mm2
Housing	blue
Mass	approx. 5 g

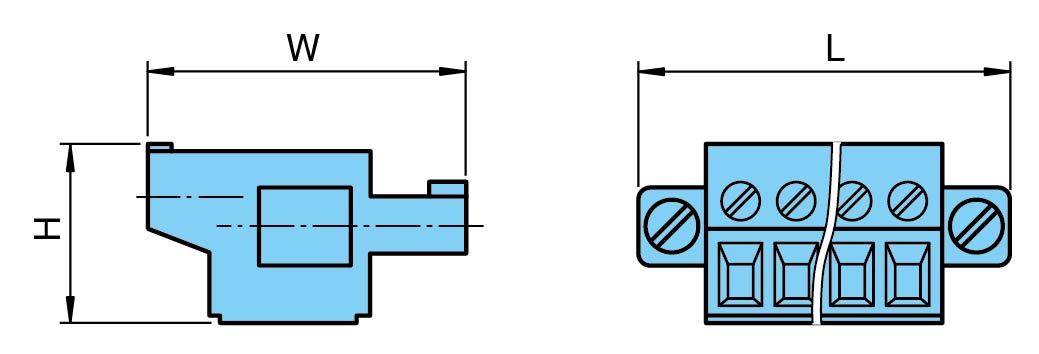

Dimensions	Dimensions
H12.3 mmW21.7 mmL33.3 mmHeight12.3 mmWidth21.7 mmLength33.3 mm	H12.3 mmW21.7 mmL33.3 mmHeight12.3 mmWidth21.7 mmLength33.3 mm
Construction type	front screw terminal
H	12.3 mm
W	21.7 mm
L	33.3 mm
Height	12.3 mm
Width	21.7 mm
Length	33.3 mm
