倍加福

LB9118A

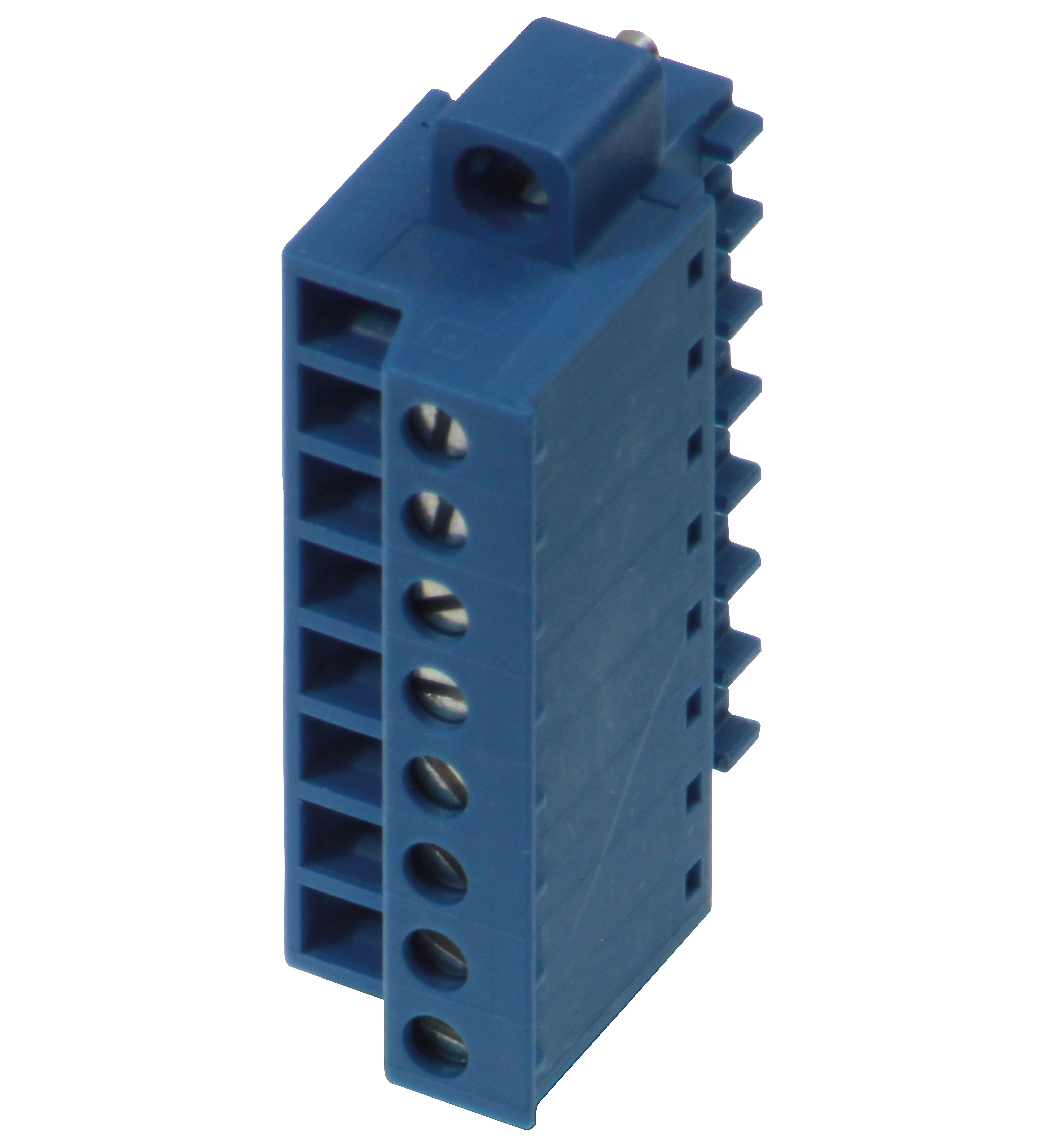

LB9118A Terminal Block

订货号: 542056
产品分类: FB系列

Terminal Block

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Number of pins	8
Labeling	1 ... 8
Rated voltage	160 V
Rated current	8 A
Core cross section	0.14 ... 1.5 mm2
Housing	blue
Mass	approx. 5 g

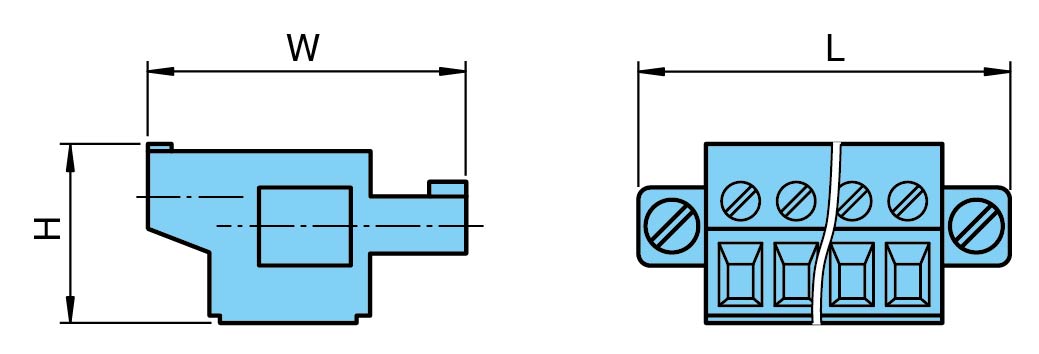

Dimensions	Dimensions
H12.3 mmW21.7 mmL40.9 mmHeight12.3 mmWidth21.7 mmLength40.9 mm	H12.3 mmW21.7 mmL40.9 mmHeight12.3 mmWidth21.7 mmLength40.9 mm
Construction type	front screw terminal
H	12.3 mm
W	21.7 mm
L	40.9 mm
Height	12.3 mm
Width	21.7 mm
Length	40.9 mm

DOCUMENTS & DOWNLOADS

资料与附件

产品数据表 Datasheet

语言：en

已就绪 · 可下载下载文件

STP 三维图纸 3-D

已就绪 · 可下载下载文件
