倍加福

LB9124A

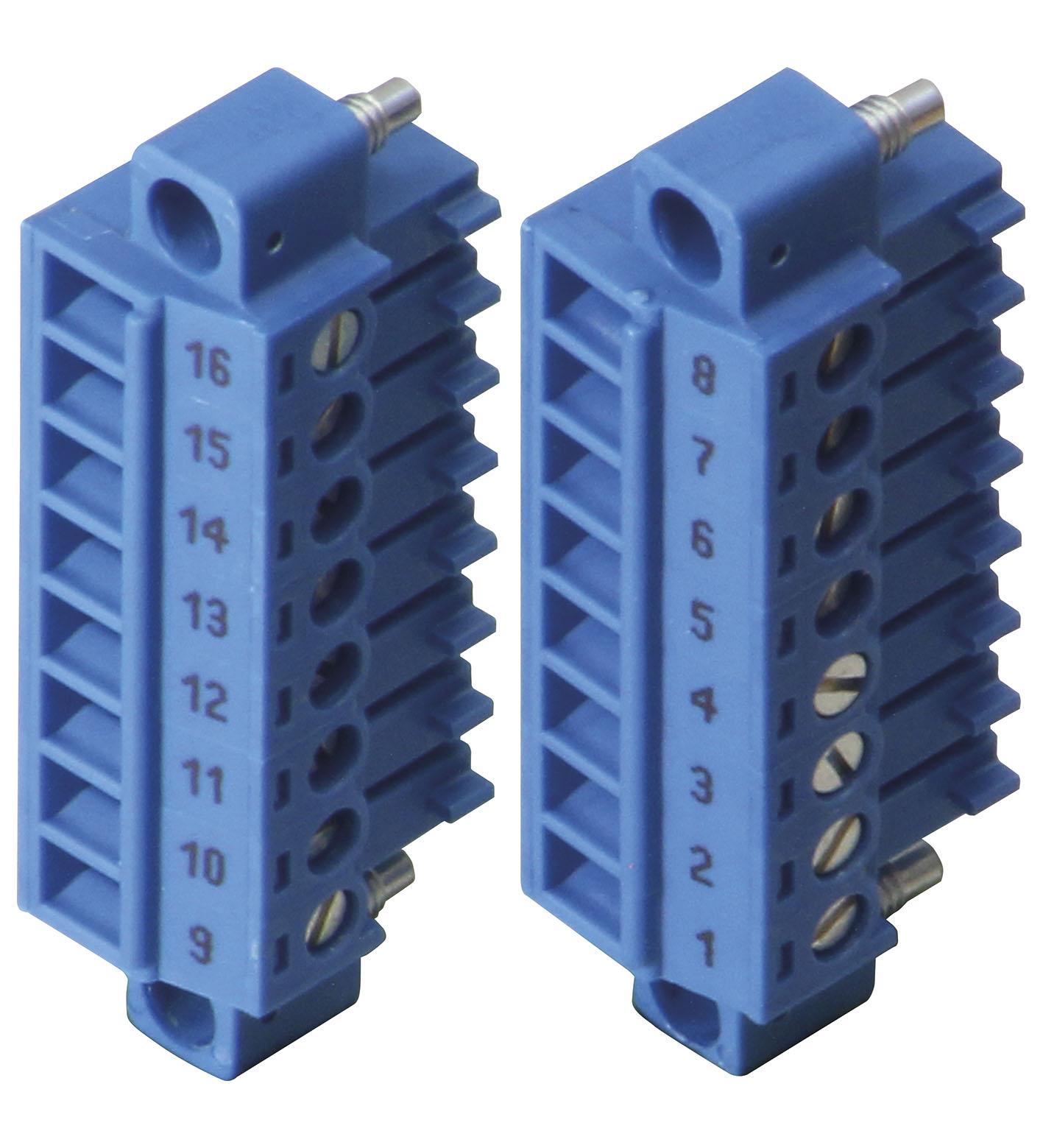

LB9124A Terminal Block

订货号: 542061
产品分类: FB系列

Terminal Block

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Number of pins	2 x 8
Labeling	1 ... 8 & 9 ... 16
Rated voltage	160 V
Rated current	8 A
Core cross section	0.14 ... 1.5 mm2
Housing	blue
Mass	approx. 5 g

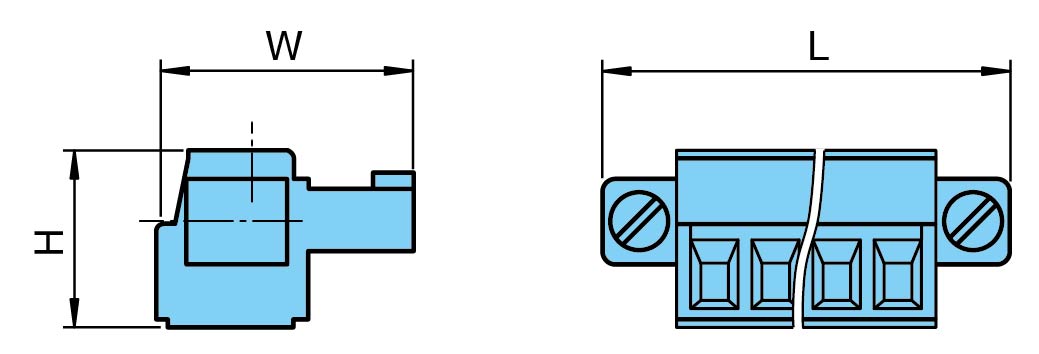

Dimensions	Dimensions
H11.1 mmW15.3 mmL40.9 mmHeight11.1 mmWidth15.3 mmLength40.9 mm	H11.1 mmW15.3 mmL40.9 mmHeight11.1 mmWidth15.3 mmLength40.9 mm
Construction type	screw terminal
H	11.1 mm
W	15.3 mm
L	40.9 mm
Height	11.1 mm
Width	15.3 mm
Length	40.9 mm

DOCUMENTS & DOWNLOADS

资料与附件

产品数据表 Datasheet

语言：en

已就绪 · 可下载下载文件

STP 三维图纸 3-D

已就绪 · 可下载下载文件
