产品数据表
Datasheet
可下载打开资料
TECHNICAL DATA
规格参数
General specifications

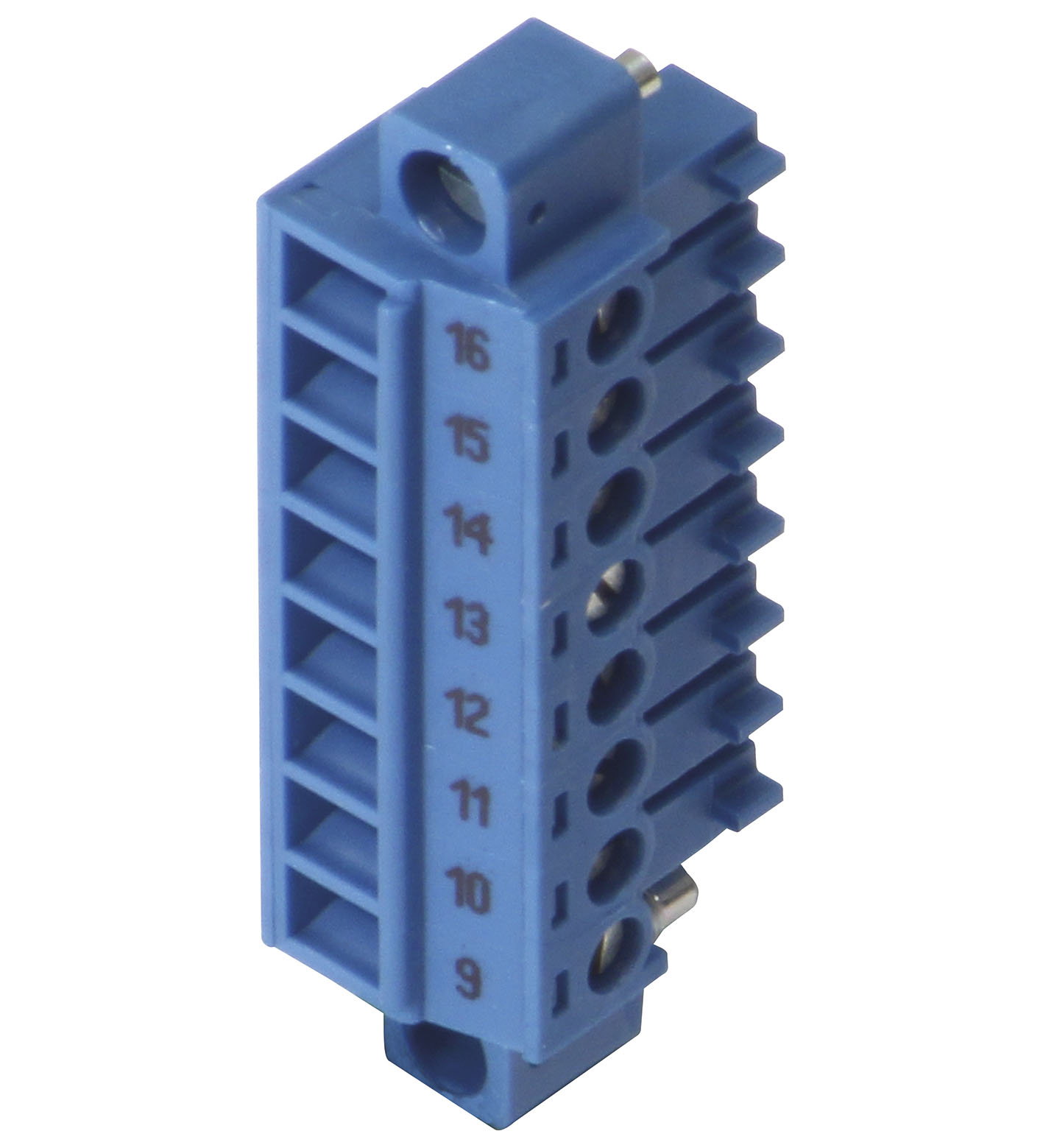

| Number of pins | 8 |
|---|---|
| Labeling | 9 ... 16 |
| Rated voltage | 160 V |
| Rated current | 8 A |
| Core cross section | 0.14 ... 1.5 mm2 |
| Housing | blue |
| Mass | approx. 5 g |

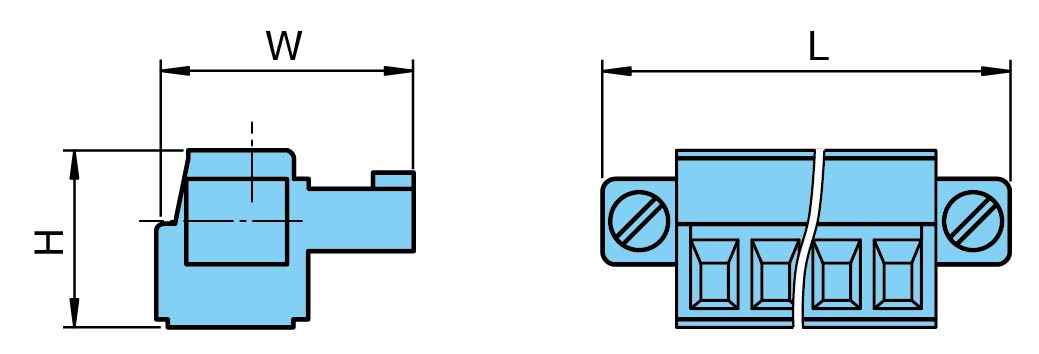

| Dimensions | Dimensions |
| H11.1 mmW15.3 mmL40.9 mmHeight11.1 mmWidth15.3 mmLength40.9 mm | H11.1 mmW15.3 mmL40.9 mmHeight11.1 mmWidth15.3 mmLength40.9 mm |
| Construction type | screw terminal |
| H | 11.1 mm |
| W | 15.3 mm |
| L | 40.9 mm |
| Height | 11.1 mm |
| Width | 15.3 mm |
| Length | 40.9 mm |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
