产品数据表
Datasheet
已就绪 · 可下载下载文件
TECHNICAL DATA
规格参数

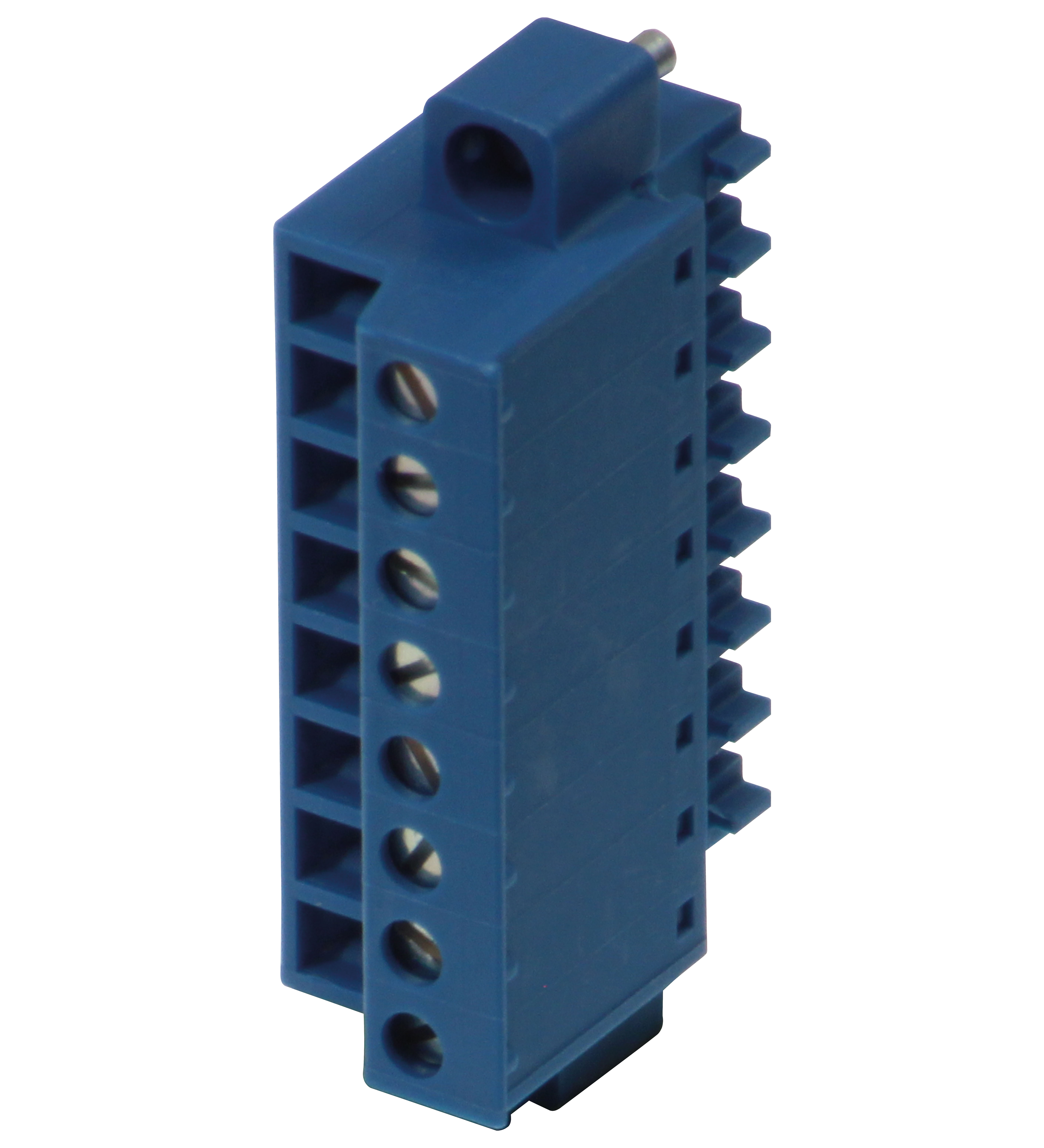

General specifications
| Number of pins | 8 |
|---|---|
| Labeling | 9 ... 16 |
| Rated voltage | 160 V |
| Rated current | 8 A |
| Core cross section | 0.14 ... 1.5 mm2 |
| Housing | blue |
| Mass | approx. 5 g |

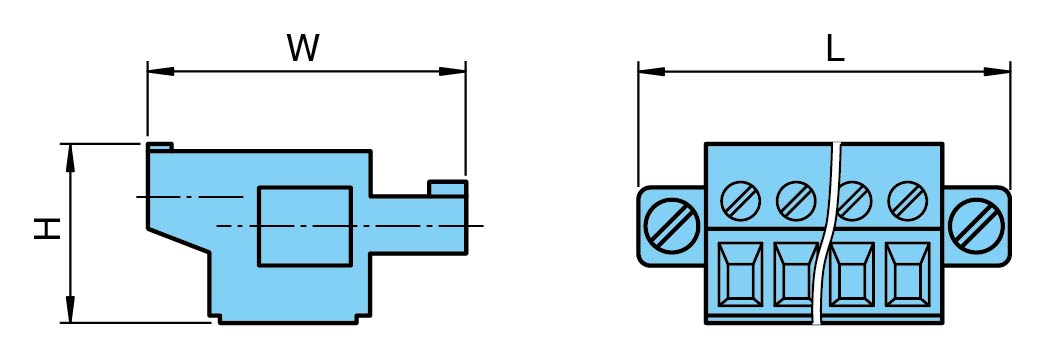

| Dimensions | Dimensions |
| H12.3 mmW21.7 mmL40.9 mmHeight12.3 mmWidth21.7 mmLength40.9 mm | H12.3 mmW21.7 mmL40.9 mmHeight12.3 mmWidth21.7 mmLength40.9 mm |
| Construction type | front screw terminal |
| H | 12.3 mm |
| W | 21.7 mm |
| L | 40.9 mm |
| Height | 12.3 mm |
| Width | 21.7 mm |
| Length | 40.9 mm |
DOCUMENTS & DOWNLOADS
资料与附件
暂无 STP 图纸。
