TECHNICAL DATA
规格参数
General specifications
| Number of pins | 8 |
|---|---|
| Labeling | none |
| Rated voltage | 160 V |
| Rated current | 4 A |
| Core cross section | 0.14 ... 0.5 mm2 |
| Housing | green |
| Mass | approx. 4.6 g |

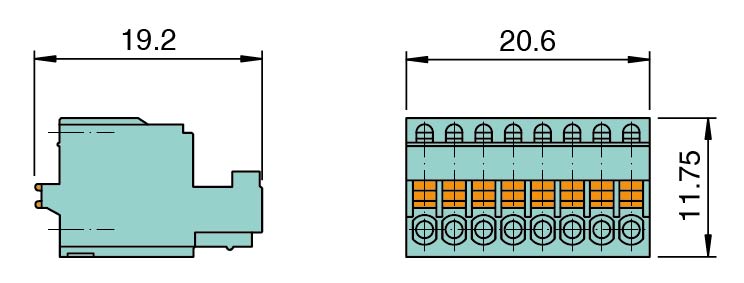

| Dimensions | (W x H x D) 20.6 mm x 11.75 mm x 19.2 mm |
| Height11.75 mmWidth20.6 mmDepth19.2 mm | Height11.75 mmWidth20.6 mmDepth19.2 mm |
| Construction type | spring terminal |
| Coding | Coding profile CP-MC 0,5Phoenix Contact order code: 1881435 |
| Height | 11.75 mm |
| Width | 20.6 mm |
| Depth | 19.2 mm |
| Packing unit | 2 item(s) |
