TECHNICAL DATA
规格参数
Electrical specifications
| Rated voltage | max. 30 V |
|---|---|
| Rated current | max. 1.5 A |
| Lead resistance | < 150 mΩ / m |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) , fixed installation |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

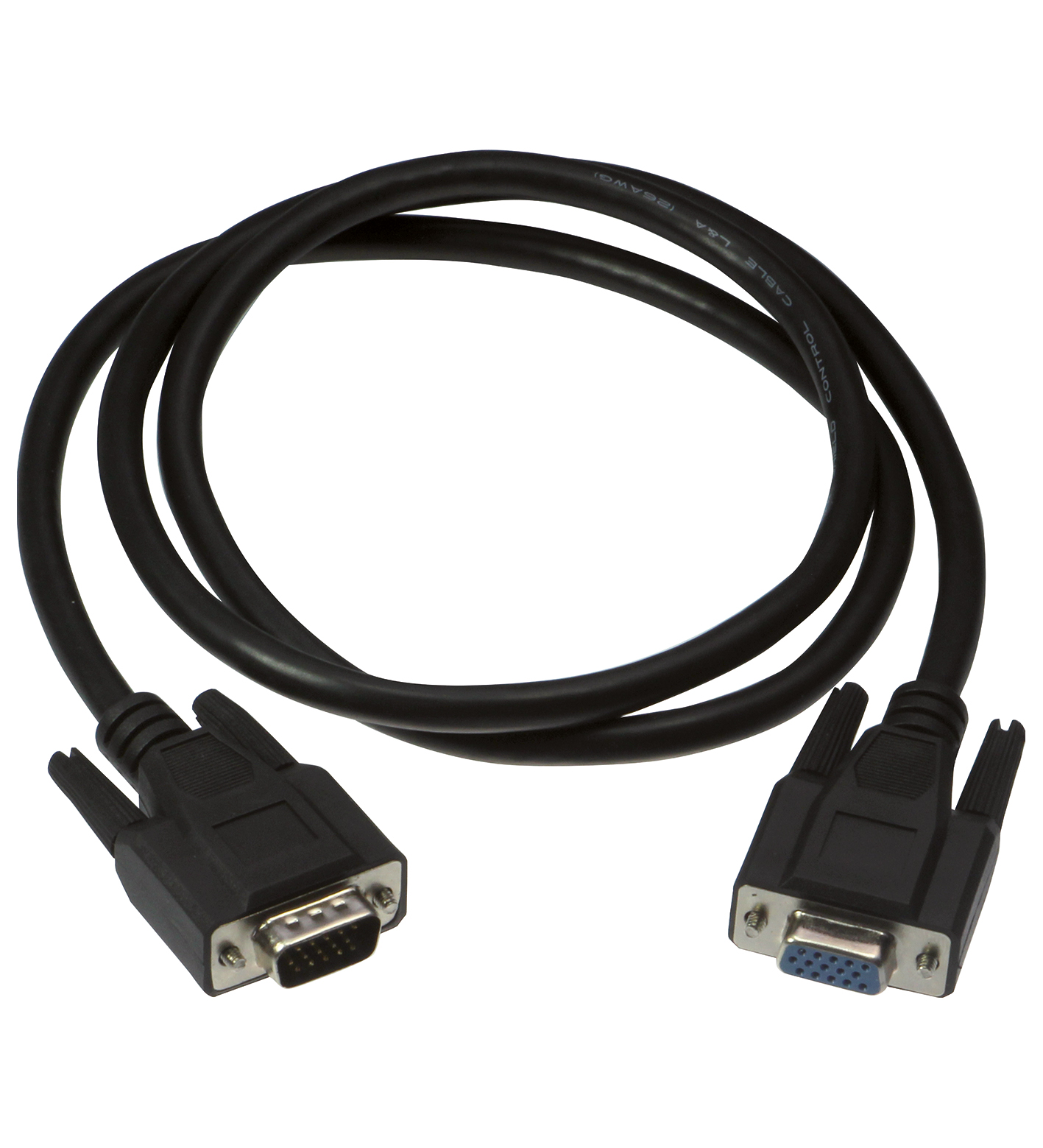

| Connection | 15-pin sub-D connector (plug) , black 15-pin sub-D connector (socket) , black |
| Material | Material |
| ConnectorSub-D connector (plug) : PVC Sub-D connector (socket) : PVCSheathingPVCCore insulationPVC | ConnectorSub-D connector (plug) : PVC Sub-D connector (socket) : PVCSheathingPVCCore insulationPVC |
| Cable | LiYCY |
| Diameter7.7 mmBending radiusmin. 6 x external diameter, fixed installationColorblackCores8P x 26 AWG , twisted pairsConductor constructionstranded wire , fine-strandShieldtinned copper braidingLengthL100 cm | Diameter7.7 mmBending radiusmin. 6 x external diameter, fixed installationColorblackCores8P x 26 AWG , twisted pairsConductor constructionstranded wire , fine-strandShieldtinned copper braidingLengthL100 cm |
| Mass | 135 g |
| Flammability | according to VW-1 |
| Connector | Sub-D connector (plug) : PVC Sub-D connector (socket) : PVC |
| Sheathing | PVC |
| Core insulation | PVC |
| Diameter | 7.7 mm |
| Bending radius | min. 6 x external diameter, fixed installation |
| Color | black |
| Cores | 8P x 26 AWG , twisted pairs |
| Conductor construction | stranded wire , fine-strand |
| Shield | tinned copper braiding |

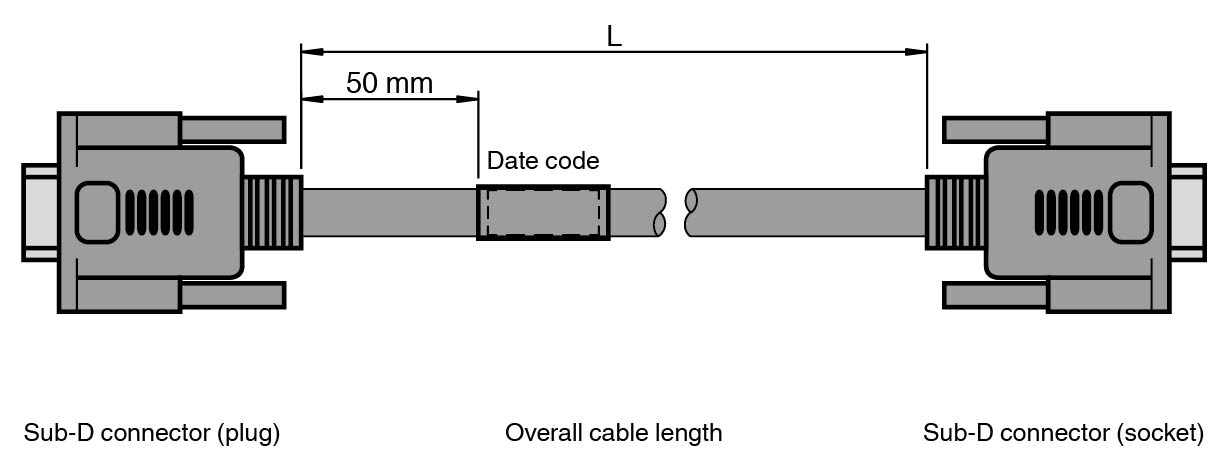

| Length | 100 cm |
