TECHNICAL DATA
规格参数
General specifications

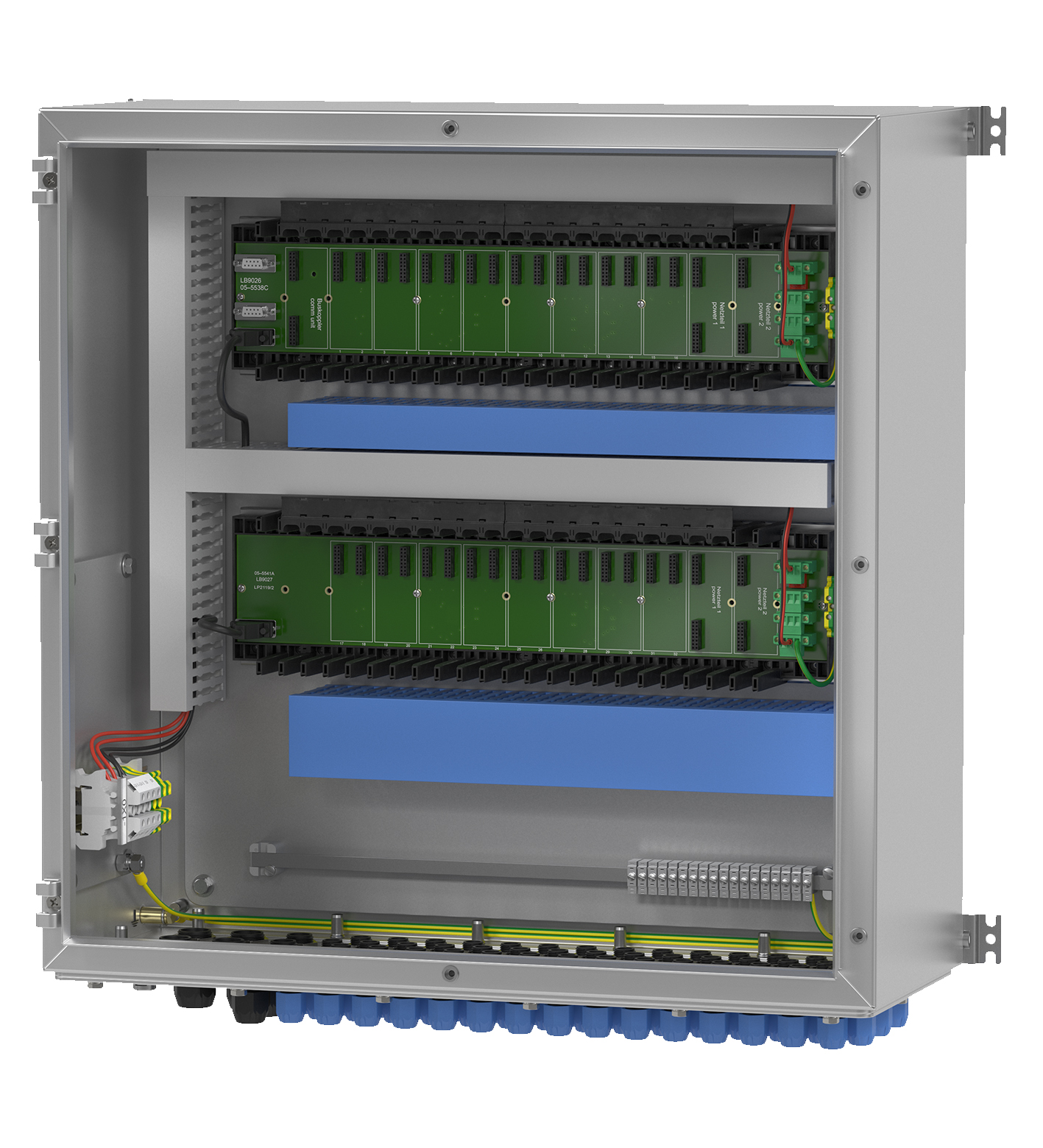

| Installed components | backplane LB9023A |
|---|---|
| Bus coupler | 1 |
| Supply | 1 |
| I/O modules (single width) | max. 8 |
| I/O modules (dual width) | max. 4 |
| Connection | screw terminals, max. 10 mm2 |
| Rated voltage | 24 V DC |
| Redundancy | no |
| Fieldbus type | PROFIBUS DP/DP-V1, PROFINET or MODBUS RTU , depends on bus coupler |
| Connection | 9-pin Sub-D connector (not included with delivery) |
| Redundancy | no |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61439-1:2012 (J.9.2.2 b) , EN 61439-2:2012 | Directive 2014/30/EUEN 61439-1:2012 (J.9.2.2 b) , EN 61439-2:2012 |
| Directive 2014/30/EU | EN 61439-1:2012 (J.9.2.2 b) , EN 61439-2:2012 |
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
| Ambient temperature | -20 ... 40 °C (-4 ... 104 °F) further on request |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Relative humidity | < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Impact resistance | 7J |
| Enclosure cover | hinged door with quarter-turn key locks |
| Cover seal | foamed silicone |
| Degree of protection | IP66 |
| Cable entry face B | Cable entry face B |
| M16 quantity30M16 seriesCable Glands, PlasticM16 typeCG.PIDS1.M16.*M16 clamping range4 ... 8 mmM16 infofield signalsM20 quantity4M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 ... 12 mmM20 infoFieldbusM25 quantity2M25 seriesCable Glands, PlasticM25 typeCG.PEDS1.M25.*M25 clamping range10 ... 18 mmM25 infoPower Supply | M16 quantity30M16 seriesCable Glands, PlasticM16 typeCG.PIDS1.M16.*M16 clamping range4 ... 8 mmM16 infofield signalsM20 quantity4M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 ... 12 mmM20 infoFieldbusM25 quantity2M25 seriesCable Glands, PlasticM25 typeCG.PEDS1.M25.*M25 clamping range10 ... 18 mmM25 infoPower Supply |
| Material | Material |
| Cable glandPolyamide (PA)Sealhousing: foamed silicone cable gland: chloroprene | Cable glandPolyamide (PA)Sealhousing: foamed silicone cable gland: chloroprene |
| Mass | approx. 25 kg , without modules |

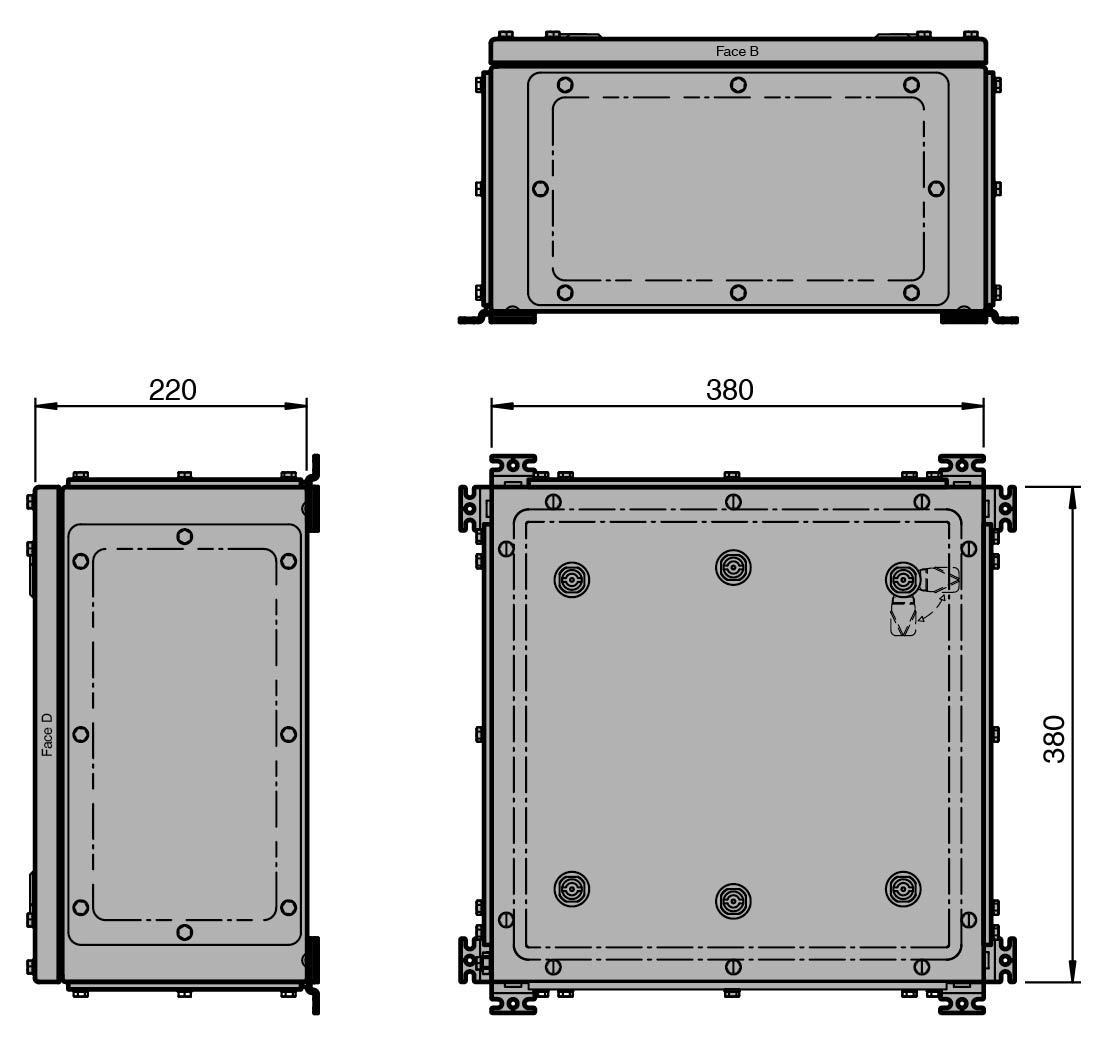

| Dimensions | Dimensions |
| External dimension (A)380 mmExternal dimension (B)380 mmExternal dimension (C)220 mm | External dimension (A)380 mmExternal dimension (B)380 mmExternal dimension (C)220 mm |
| Mounting | 4 Mounting bracket for wall mounting included in the scope of delivery |
| Grounding | M8 internal/external brass nickel-plated grounding bolt |
| M16 quantity | 30 |
| M16 series | Cable Glands, Plastic |
| M16 type | CG.PIDS1.M16.* |
| M16 clamping range | 4 ... 8 mm |
| M16 info | field signals |
| M20 quantity | 4 |
| M20 series | Cable Glands, Plastic |
| M20 type | CG.PEDS1.M20.* |
| M20 clamping range | 6 ... 12 mm |
| M20 info | Fieldbus |
| M25 quantity | 2 |
| M25 series | Cable Glands, Plastic |
| M25 type | CG.PEDS1.M25.* |
| M25 clamping range | 10 ... 18 mm |
| M25 info | Power Supply |
| Cable gland | Polyamide (PA) |
| Seal | housing: foamed silicone cable gland: chloroprene |
| External dimension (A) | 380 mm |
| External dimension (B) | 380 mm |
| External dimension (C) | 220 mm |
| EU-type examination certificate | EU-type examination certificate |
| Marking II 3(1/2)G Ex eb nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tb [ia Da/ib Db/ic] IIIC T130°C Dc | Marking II 3(1/2)G Ex eb nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tb [ia Da/ib Db/ic] IIIC T130°C Dc |
| Certificate | PF 16 CERT 1267 X |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2018 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 | Directive 2014/34/EUEN 60079-0:2018 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
| Marking | II 3(1/2)G Ex eb nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tb [ia Da/ib Db/ic] IIIC T130°C Dc |
| Directive 2014/34/EU | EN 60079-0:2018 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
