TECHNICAL DATA
规格参数
General specifications

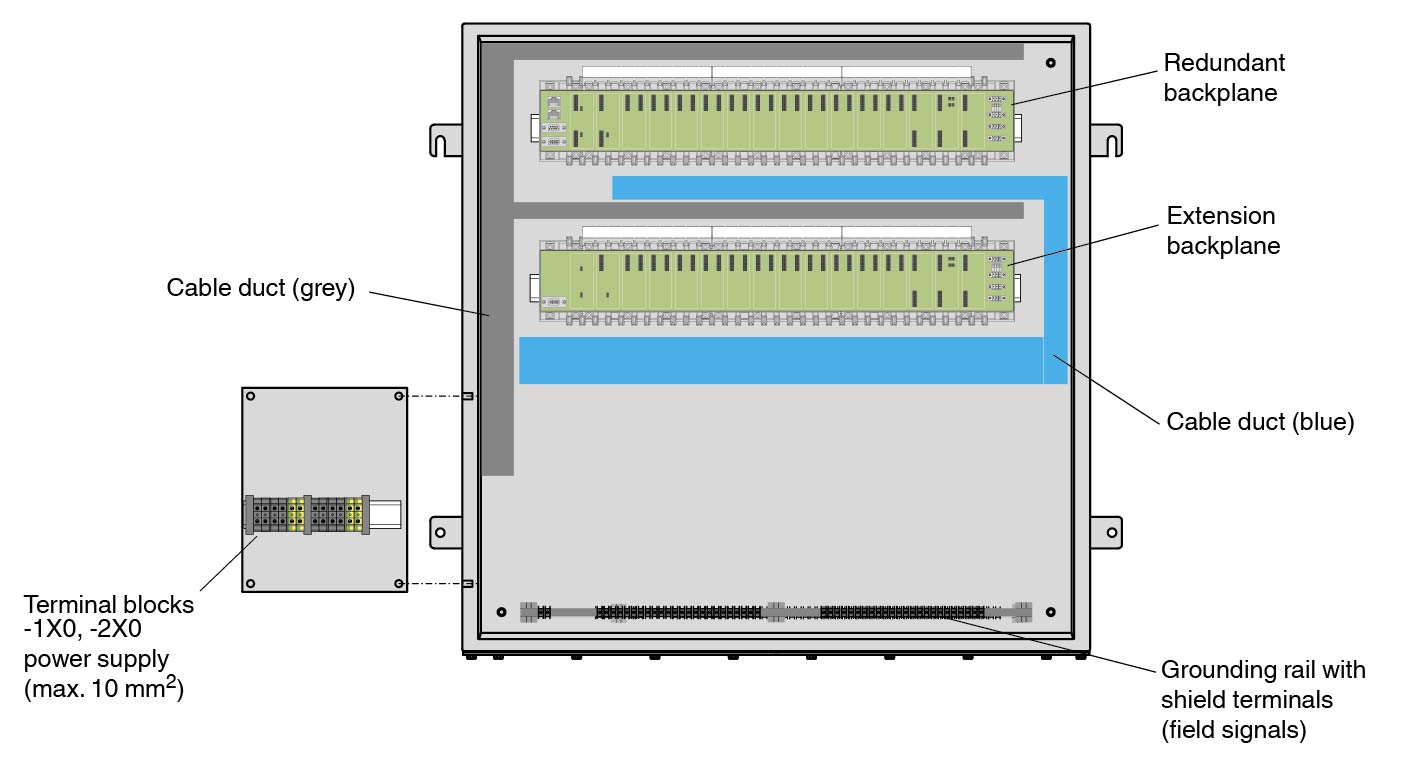

| Installed components | backplane LB9022E , backplane LB9024A |
|---|---|
| Bus coupler | 2 |
| Supply | 6 |
| I/O modules (single width) | max. 46 |
| I/O modules (dual width) | max. 23 |
| Connection | screw terminals, max. 10 mm2 |
| Rated voltage | 24 V DC |
| Maximum safe voltage Um | 60 V |
| Redundancy | yes |
| Fieldbus type | MODBUS TCP |
| Connection | RJ-45 connector (not included with delivery) |
| Redundancy | yes |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1 | Directive 2014/30/EUEN 61326-1 |
| Directive 2014/30/EU | EN 61326-1 |
| Degree of protection | EN 60529 |
| Impact resistance | EN 60079-0 |
| Ambient temperature | -20 ... 40 °C (-4 ... 104 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Relative humidity | < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation |
| Shock resistance | shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18 |
| Vibration resistance | frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance |
| Impact resistance | 7J |
| Enclosure cover | hinged door with cam lock and double-bit insert |
| Degree of protection | IP66, NEMA 4X |
| Cable entry | power supply (Ex e): 2 x M25 and 2 x stopping plugs bus (Ex e): 6 x M20 field signals (Ex i): 184 x M16 and 8 x stopping plugs |
| Material | Material |
| HousingStainless steel 1.4404 / AISI 316LSurfaceelectropolishedCable glandPolyamide (PA)SealNeoprene, fire-resistant, one pieceMaterial thicknessenclosure body: 1.2 mmenclosure cover: 1.5 mmmounting plate, gland plate: 3 mm | HousingStainless steel 1.4404 / AISI 316LSurfaceelectropolishedCable glandPolyamide (PA)SealNeoprene, fire-resistant, one pieceMaterial thicknessenclosure body: 1.2 mmenclosure cover: 1.5 mmmounting plate, gland plate: 3 mm |
| Mass | approx. 35 kg , without modules |
| Dimensions | (W x H x D) 800 x 800 x 300 mm (31.5 x 31.5 x 11.8 inch) |
| Height800 mmWidth800 mmDepth300 mm | Height800 mmWidth800 mmDepth300 mm |
| Mounting | thru-holes Ø11 mm |
| Grounding | grounding bolt M10 , brass |
| Housing | Stainless steel 1.4404 / AISI 316L |
| Surface | electropolished |
| Cable gland | Polyamide (PA) |
| Seal | Neoprene, fire-resistant, one piece |
| Material thickness | enclosure body: 1.2 mmenclosure cover: 1.5 mmmounting plate, gland plate: 3 mm |
| Height | 800 mm |
| Width | 800 mm |
| Depth | 300 mm |
| Certificate | PF 16 CERT 1267 X |
| Marking II 3(1/2)G Ex e nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tc [ia Da/ib Db/ic] IIIC T135 °C Dc | Marking II 3(1/2)G Ex e nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tc [ia Da/ib Db/ic] IIIC T135 °C Dc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012 , EN 60079-15:2010 , EN 60079-31:2014 | Directive 2014/34/EUEN 60079-0:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
| Marking | II 3(1/2)G Ex e nA [ia Ga/ib Gb/ic] IIC T4 Gc [exsign] II 3(1/2)D Ex tc [ia Da/ib Db/ic] IIIC T135 °C Dc |
| Directive 2014/34/EU | EN 60079-0:2012 , EN 60079-15:2010 , EN 60079-31:2014 |
| Marine approval | Marine approval |
| Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UN | Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UN |
| Lloyd Register | 15/20021 |
| DNV GL Marine | TAA0000034 |
| American Bureau of Shipping | T1450280/UN |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
