TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 250 V max. |
|---|---|
| Operating current | 16 A max. |
| Terminal capacity | 2.5 mm2 |

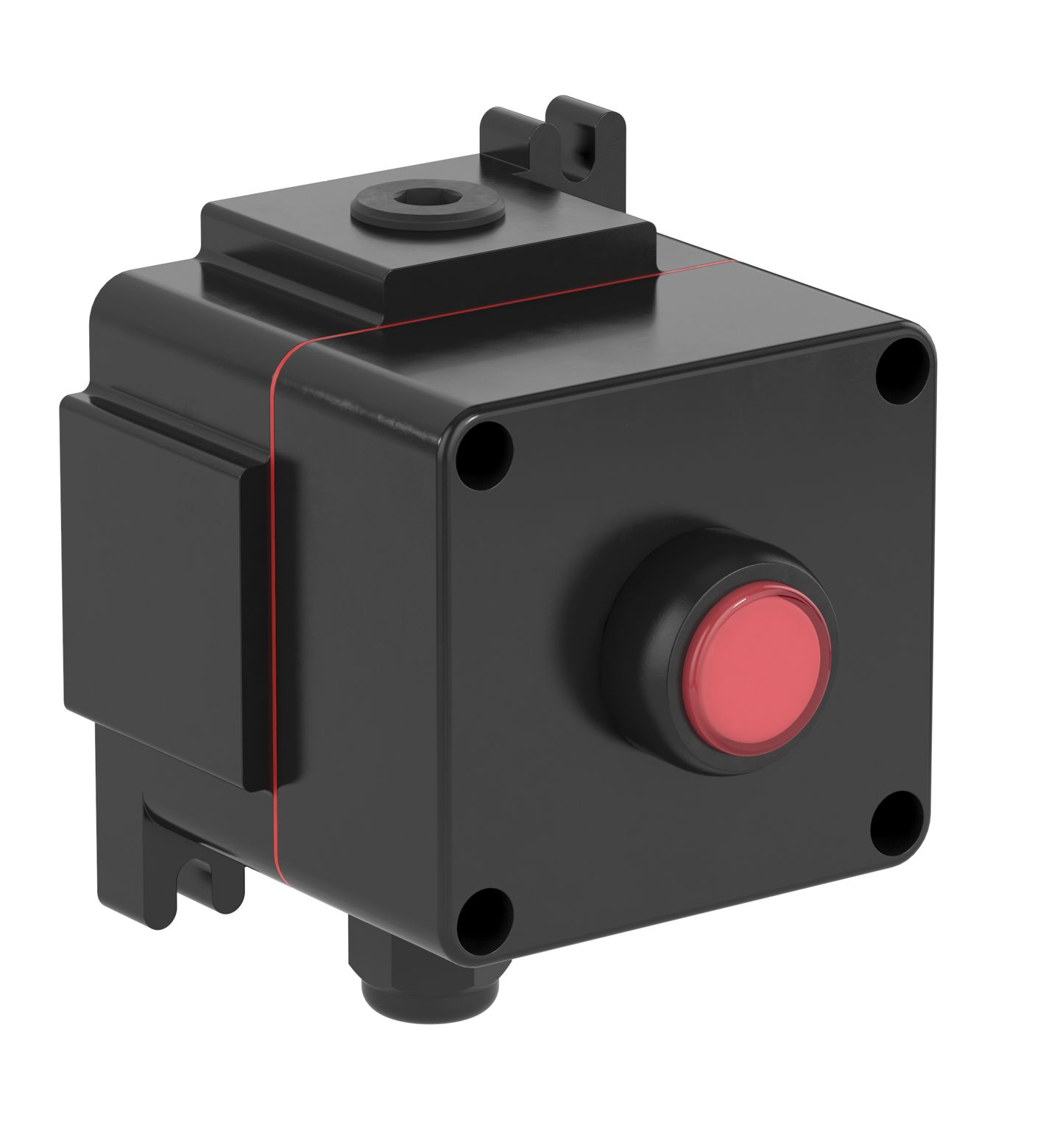

| Function | LED indicator |
| ColorredRated operating voltage20 ... 250 V AC | ColorredRated operating voltage20 ... 250 V AC |
| Color | red |
| Rated operating voltage | 20 ... 250 V AC |
| Enclosure range | LCP |
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel socket cap head screws |
| ScrewsM6Number4Tightening torque2 Nm | ScrewsM6Number4Tightening torque2 Nm |
| Degree of protection | IP66 |
| Cable entry face A | Cable entry face A |
| M20 quantity1M20 seriesStopping Plugs, PlasticM20 typeSP.PE.M20.* | M20 quantity1M20 seriesStopping Plugs, PlasticM20 typeSP.PE.M20.* |
| Cable entry face B | Cable entry face B |
| M20 quantity1M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 ... 12 mm | M20 quantity1M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 ... 12 mm |
| Defined entry area | face A and face B |
| Material | Material |
| Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackSealone piece closed cell silicone | Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackSealone piece closed cell silicone |
| Mass | 1.5 kg |
| Dimensions | Dimensions |
| Height (A)110 mmWidth (B)110 mmDepth (C)101 mmExternal dimension with operating element (C1)123 mmMounting holes distance (G)110 mmMounting holes distance (H)78 mmMounting holes diameter (J)7 mmMaximum external dimension (K)125 mm | Height (A)110 mmWidth (B)110 mmDepth (C)101 mmExternal dimension with operating element (C1)123 mmMounting holes distance (G)110 mmMounting holes distance (H)78 mmMounting holes diameter (J)7 mmMaximum external dimension (K)125 mm |
| Tightening torque | Tightening torque |
| Nut torque at enclosure (SW1)see datasheets of cable glands | Nut torque at enclosure (SW1)see datasheets of cable glands |
| Grounding | 2.5 mm2 grounding terminal |
| Screws | M6 |
| Number | 4 |
| Tightening torque | 2 Nm |
| M20 quantity | 1 |
| M20 series | Stopping Plugs, Plastic |
| M20 type | SP.PE.M20.* |
| M20 quantity | 1 |
| M20 series | Cable Glands, Plastic |
| M20 type | CG.PEDS1.M20.* |
| M20 clamping range | 6 ... 12 mm |
| Enclosure | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) |
| Finish | inherent color black |
| Seal | one piece closed cell silicone |
| Height (A) | 110 mm |
| Width (B) | 110 mm |
| Depth (C) | 101 mm |
| External dimension with operating element (C1) | 123 mm |
| Mounting holes distance (G) | 110 mm |
| Mounting holes distance (H) | 78 mm |
| Mounting holes diameter (J) | 7 mm |
| Maximum external dimension (K) | 125 mm |
| Nut torque at enclosure (SW1) | see datasheets of cable glands |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) @ T4 -40 ... 40 °C (-40 ... 104 °F) @ T6 |
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking II 2 GD Ex db eb mb IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T4/T130 °C @ Ta +55 °C | Marking II 2 GD Ex db eb mb IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T4/T130 °C @ Ta +55 °C |
| Marking | II 2 GD Ex db eb mb IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T4/T130 °C @ Ta +55 °C |
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| Further approvals | on request: CCC, ECAS, IA |
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label |
