TECHNICAL DATA
规格参数
General specifications
| Description | Headband |
|---|---|
| Microphone | Dynamic (MT73) |
| Two-way radio | Two-way radio |
| Frequency range403 ... 470 MHzOperating modeSimplexChannels70 programmable channelsChannel grid12,5 kHz and 25 kHzModulationAnalog: 2,5 kHz (FM) and 5 kHz (FM)Digital: 2,5 kHz (4-level FSK)Sensitivity (Receiver)Typical -120 dBmSelective squelchProgrammable (supports CTCSS and DCS)Power Output200 / 20 / 10 mW ERDetection rangeOutdoors up to 2 km depending on conditions | Frequency range403 ... 470 MHzOperating modeSimplexChannels70 programmable channelsChannel grid12,5 kHz and 25 kHzModulationAnalog: 2,5 kHz (FM) and 5 kHz (FM)Digital: 2,5 kHz (4-level FSK)Sensitivity (Receiver)Typical -120 dBmSelective squelchProgrammable (supports CTCSS and DCS)Power Output200 / 20 / 10 mW ERDetection rangeOutdoors up to 2 km depending on conditions |
| Frequency range | 403 ... 470 MHz |
| Operating mode | Simplex |
| Channels | 70 programmable channels |
| Channel grid | 12,5 kHz and 25 kHz |
| Modulation | Analog: 2,5 kHz (FM) and 5 kHz (FM)Digital: 2,5 kHz (4-level FSK) |
| Sensitivity (Receiver) | Typical -120 dBm |
| Selective squelch | Programmable (supports CTCSS and DCS) |
| Power Output | 200 / 20 / 10 mW ER |
| Detection range | Outdoors up to 2 km depending on conditions |
| Battery type | Li-ion 3.7 V , 1350 mAh , 5 Wh |
| Charging time | approx. 12 h |
| Operating duration | 8 h * (90 stby / 5 tx / 5 rx)* can be increased up to 12 hours with the power save feature |
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -20 ... 55 °C (-4 ... 131 °F) < 90 % Humidity |
| Mass | 521 g |
| ATEX approval | ATEX approval |
| ATEX certificatePresafe 16ATEX8960XATEX markingI M1 Ex ia I Ma -20°C ≤ Ta: ≤ +50°CII 1G Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +50°C GaII 1D Ex ia IIIC T130°C Da -20°C ≤ Ta ≤ +50°C | ATEX certificatePresafe 16ATEX8960XATEX markingI M1 Ex ia I Ma -20°C ≤ Ta: ≤ +50°CII 1G Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +50°C GaII 1D Ex ia IIIC T130°C Da -20°C ≤ Ta ≤ +50°C |
| ATEX certificate | Presafe 16ATEX8960X |
| ATEX marking | I M1 Ex ia I Ma -20°C ≤ Ta: ≤ +50°CII 1G Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +50°C GaII 1D Ex ia IIIC T130°C Da -20°C ≤ Ta ≤ +50°C |
| IECEx approval | IECEx approval |
| IECEx certificatePresafe 16.0086XIECEx markingEx ia I Ma -20°C ≤ Ta: ≤ +50°CEx ia IIC T4 Ga -20°C ≤ Ta ≤ +50°CEx ia IIIC T130°C Da -20°C ≤ Ta ≤ +50°C | IECEx certificatePresafe 16.0086XIECEx markingEx ia I Ma -20°C ≤ Ta: ≤ +50°CEx ia IIC T4 Ga -20°C ≤ Ta ≤ +50°CEx ia IIIC T130°C Da -20°C ≤ Ta ≤ +50°C |
| IECEx certificate | Presafe 16.0086X |
| IECEx marking | Ex ia I Ma -20°C ≤ Ta: ≤ +50°CEx ia IIC T4 Ga -20°C ≤ Ta ≤ +50°CEx ia IIIC T130°C Da -20°C ≤ Ta ≤ +50°C |

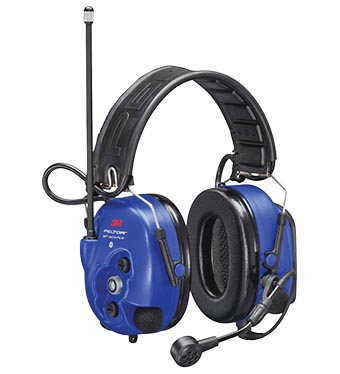

| Scope of delivery | 3M™ PELTOR™ WS™ LiteCom Pro III Ex headset. Battery ACK082 Hygiene kit HY83 Documentation |
