TECHNICAL DATA
规格参数
General specifications
| Bulb | High performance LED |
|---|---|
| Luminous intensity | 3000 Lux (1 m distance) |
| Luminous flux | 64 lumen |
| Battery type | 3x LR03 / AAA (type-tested) |
| Operating duration | approx. 55 h (continuous operation) |
| CE conformity | CE 0102 |
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -30 ... 60 °C (-22 ... 140 °F) (without batteries) |
| Degree of protection | IP65IP67 following EN/IEC 60529 (industrial standard) |
| Mass | approx. 180 g (with head band) |
| Dimensions | 60 mm x 87 mm x 69 mm |
| EU-type examination certificate | EPS 16 ATEX 1 170 X |
| Marking II 1G Ex ia IIC T4 Ga IP65 [exsign] II 1D Ex ia IIIC T130°C Da IP65 | Marking II 1G Ex ia IIC T4 Ga IP65 [exsign] II 1D Ex ia IIIC T130°C Da IP65 |
| Marking | II 1G Ex ia IIC T4 Ga IP65 [exsign] II 1D Ex ia IIIC T130°C Da IP65 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx EPS 16.0074XIECEx markingEx ia IIC T4 Ga IP65 Ex ia IIIC T130°C Da IP65 | IECEx certificateIECEx EPS 16.0074XIECEx markingEx ia IIC T4 Ga IP65 Ex ia IIIC T130°C Da IP65 |
| IECEx certificate | IECEx EPS 16.0074X |
| IECEx marking | Ex ia IIC T4 Ga IP65 Ex ia IIIC T130°C Da IP65 |

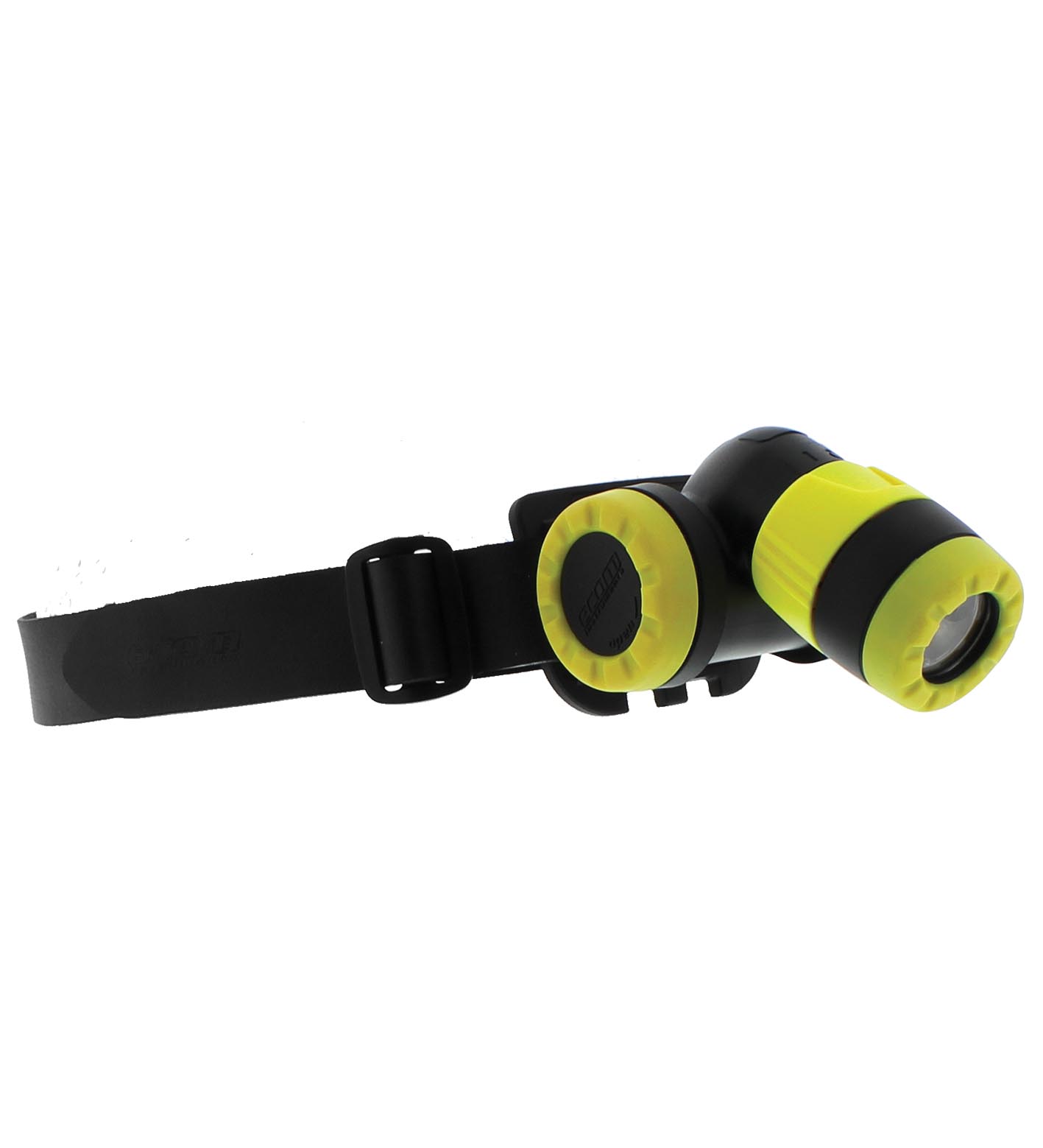

| Scope of delivery | Lite-Ex® PL 10e H Batteries Headband Documentation |
