General specifications

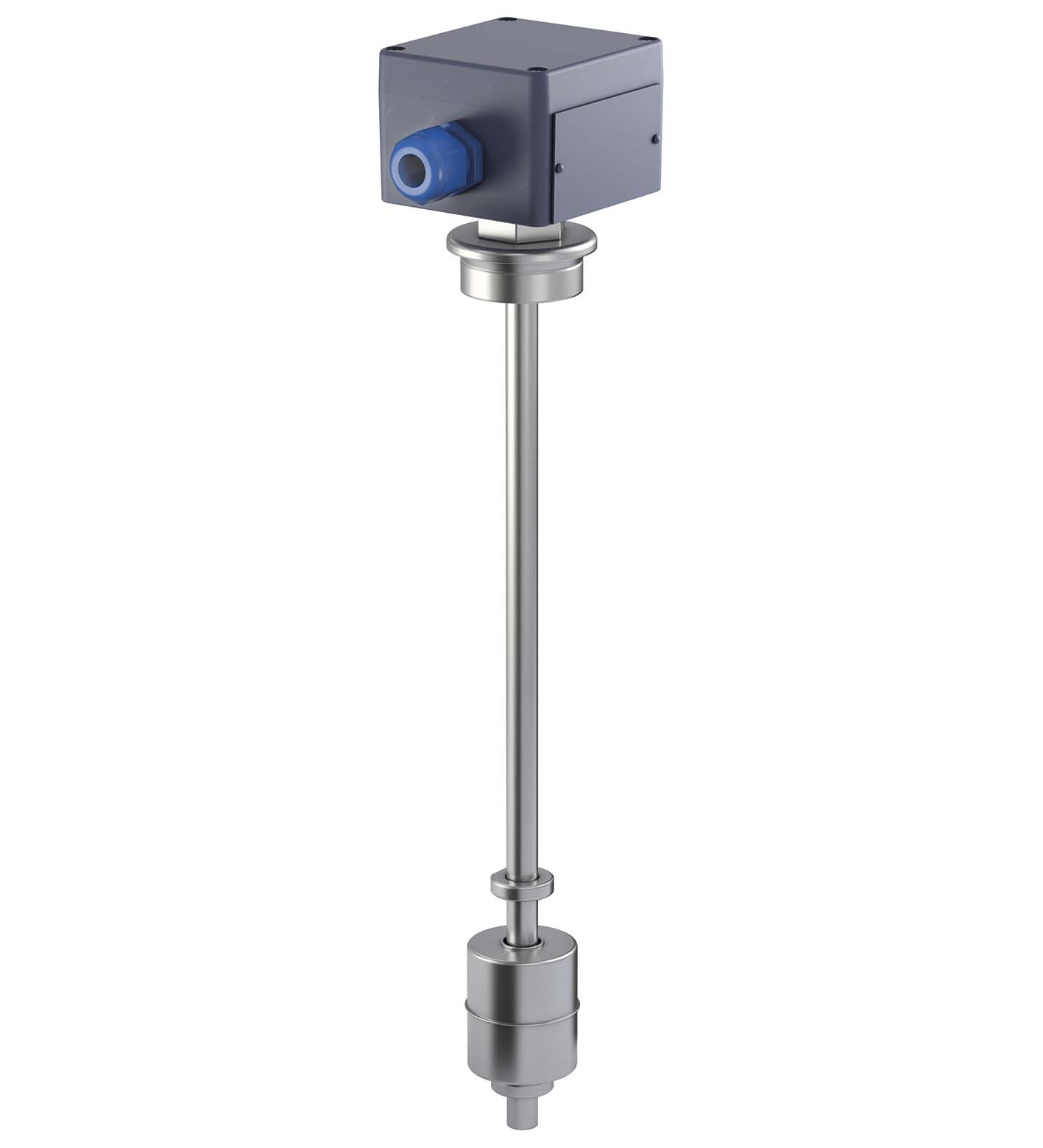

| Equipment architecture | A measuring system consists of a magnet-operated immersion probe LMC****-G6*-O4 and a signal converter S1SD-1TI-1U. |
|---|---|
| Series | LMC-P |
| Versions | LMC10P6-G6P-O4LMC10D5-G6D-O4 |
| Connection | 3-wire, potentiometer connection approx. 40 kΩ |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 , EN 61326-2-3:2013 | Directive 2014/30/EUEN 61326-1:2013 , EN 61326-2-3:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 , EN 61326-2-3:2013 |
| Degree of protection | IEC 60529:2000 |
| Accuracy | resolution: 10 mm |
| Process conditions | Process conditions |
| Process temperatureversion PP: -10 ... 80 °C (14 ... 176 °F)version PVDF: -10 ... 100 °C (14 ... 212 °F)Process pressure (static pressure)≤ 3 bar (43.5 psi)Density≥ 0.8 g/cm3 | Process temperatureversion PP: -10 ... 80 °C (14 ... 176 °F)version PVDF: -10 ... 100 °C (14 ... 212 °F)Process pressure (static pressure)≤ 3 bar (43.5 psi)Density≥ 0.8 g/cm3 |
| Process temperature | version PP: -10 ... 80 °C (14 ... 176 °F)version PVDF: -10 ... 100 °C (14 ... 212 °F) |
| Process pressure (static pressure) | ≤ 3 bar (43.5 psi) |
| Density | ≥ 0.8 g/cm3 |
| Ambient temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Degree of protection | IP66 / IP68 |
| Connection | terminal box, 3 terminals , max. 2.5 mm2 |
| Material | float, guide tube, process connection:- version PP: PP (Polypropylene)- version PVDF: PVDF (Polyvinylidenfluoride)terminal box: Polyester |

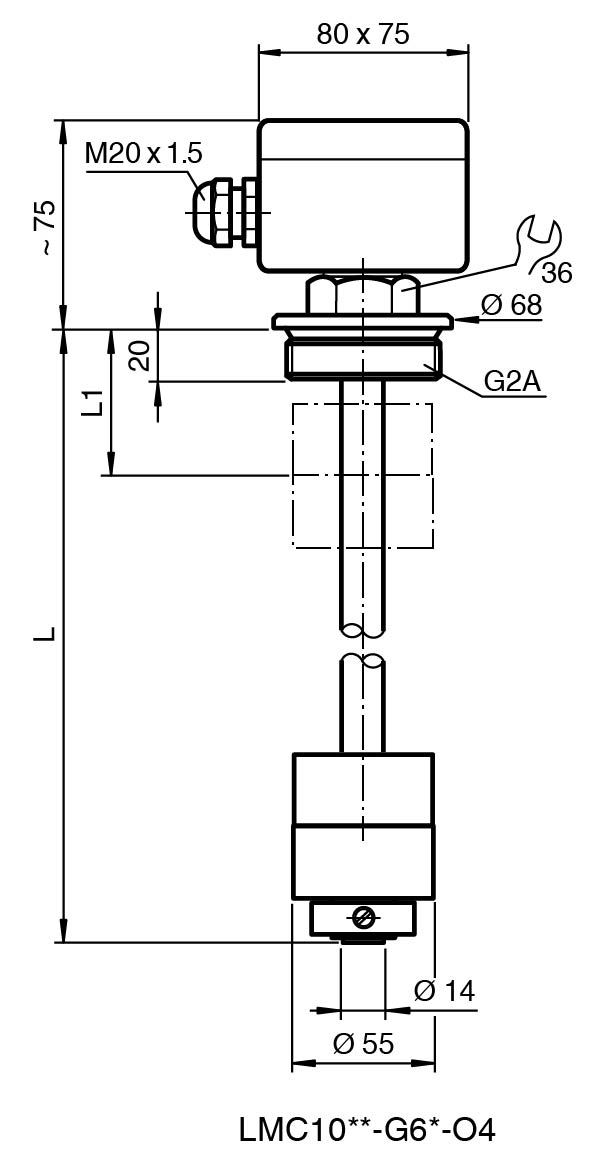

| Dimensions | float:- version PP: cylinder ∅55 mm x 54 mm- version PVDF: cylinder ∅55 mm x 70 mmguide tube: ∅14 mm, max. length 3000 mmterminal box: 80 x 75 x 55 mm |
| Process connection | thread G2A to DIN/ISO 228/1 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
| Designation | - LML-FD5 float, cylinder, Ø55 mm x 70 mm, PVDF- LML-FP6 float, cylinder, Ø55 mm x 54 mm, PP |
