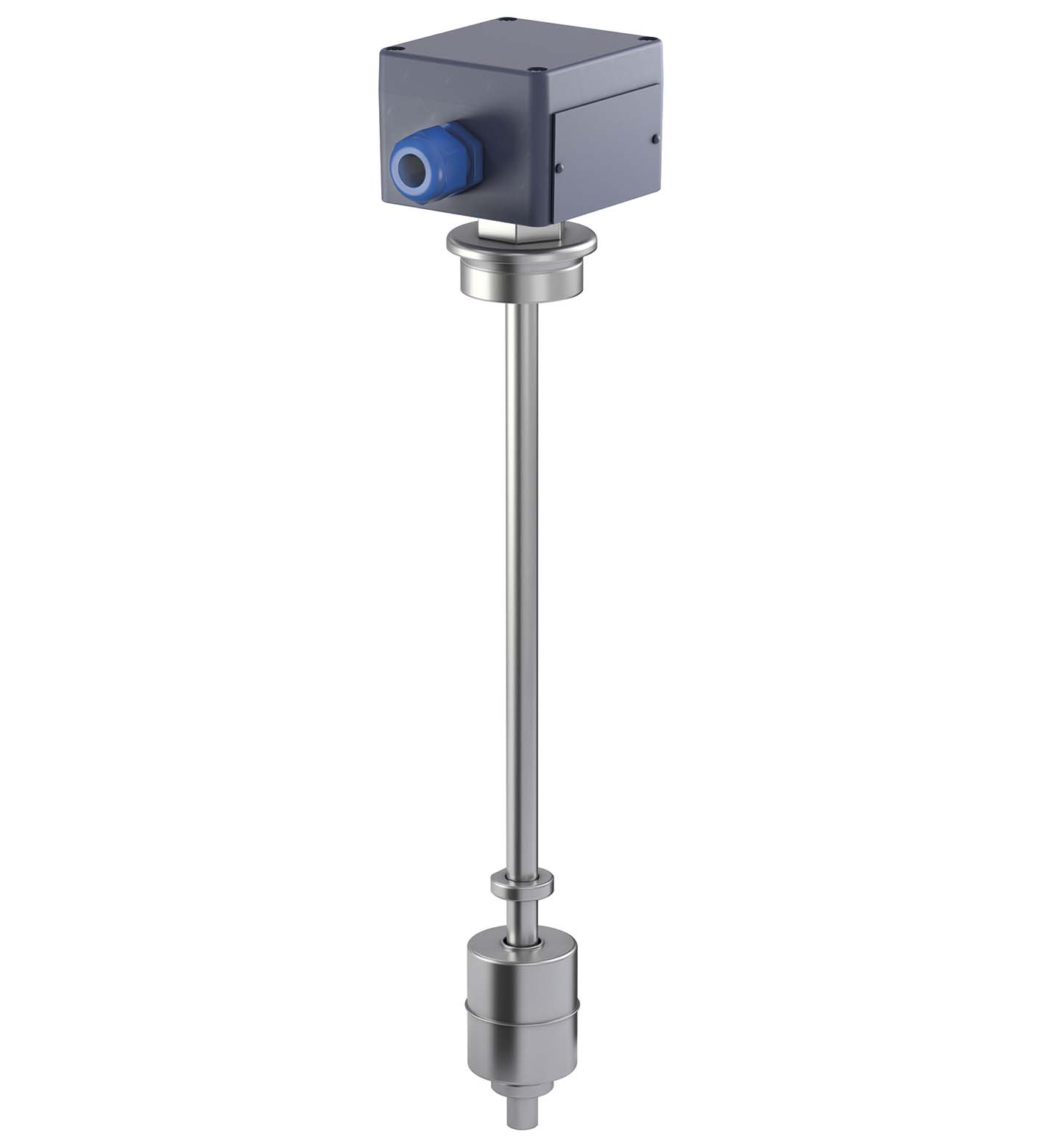

TECHNICAL DATA
规格参数
General specifications
| Function principle | ring magnet as switching element in the float, reed contact, change-over contactnumber of contacts:- version LML1: 1 contact- version LML2: 2 contacts- version LML3: 3 contacts |
|---|---|
| Series | LML-P |
| Rated voltage | 250 V AC/DC |
| Current consumption | 1 A |
| Power consumption | 40 VA |
| Connection | This device may be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements. |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1:2010 | Directive 2014/35/EUEN 61010-1:2010 |
| Directive 2014/35/EU | EN 61010-1:2010 |
| Degree of protection | IEC 60529:2000 |
| Installation conditions | Installation conditions |
| Switching pointposition according to specification | Switching pointposition according to specification |
| Process conditions | Process conditions |
| Process temperatureversion PP: -10 ... 80 °C (14 ... 176 °F)version PVDF: -10 ... 100 °C (14 ... 212 °F)Process pressure (static pressure)≤ 3 bar (43.5 psi)Density≥ 0.8 g/cm3 | Process temperatureversion PP: -10 ... 80 °C (14 ... 176 °F)version PVDF: -10 ... 100 °C (14 ... 212 °F)Process pressure (static pressure)≤ 3 bar (43.5 psi)Density≥ 0.8 g/cm3 |
| Switching point | position according to specification |
| Process temperature | version PP: -10 ... 80 °C (14 ... 176 °F)version PVDF: -10 ... 100 °C (14 ... 212 °F) |
| Process pressure (static pressure) | ≤ 3 bar (43.5 psi) |
| Density | ≥ 0.8 g/cm3 |
| Ambient temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Degree of protection | IP66 / IP68 |
| Connection | version LML: terminal box, max. 9 terminalsversion LML-PVC1: connection cable 1 m (3.3 ft), 0.75 mm2 |
| Material | float, guide tube, process connection:- version PP: PP (Polypropylene)- version PVDF: PVDF (Polyvinylidenfluoride)connection cable: PVCterminal box: Polyester |

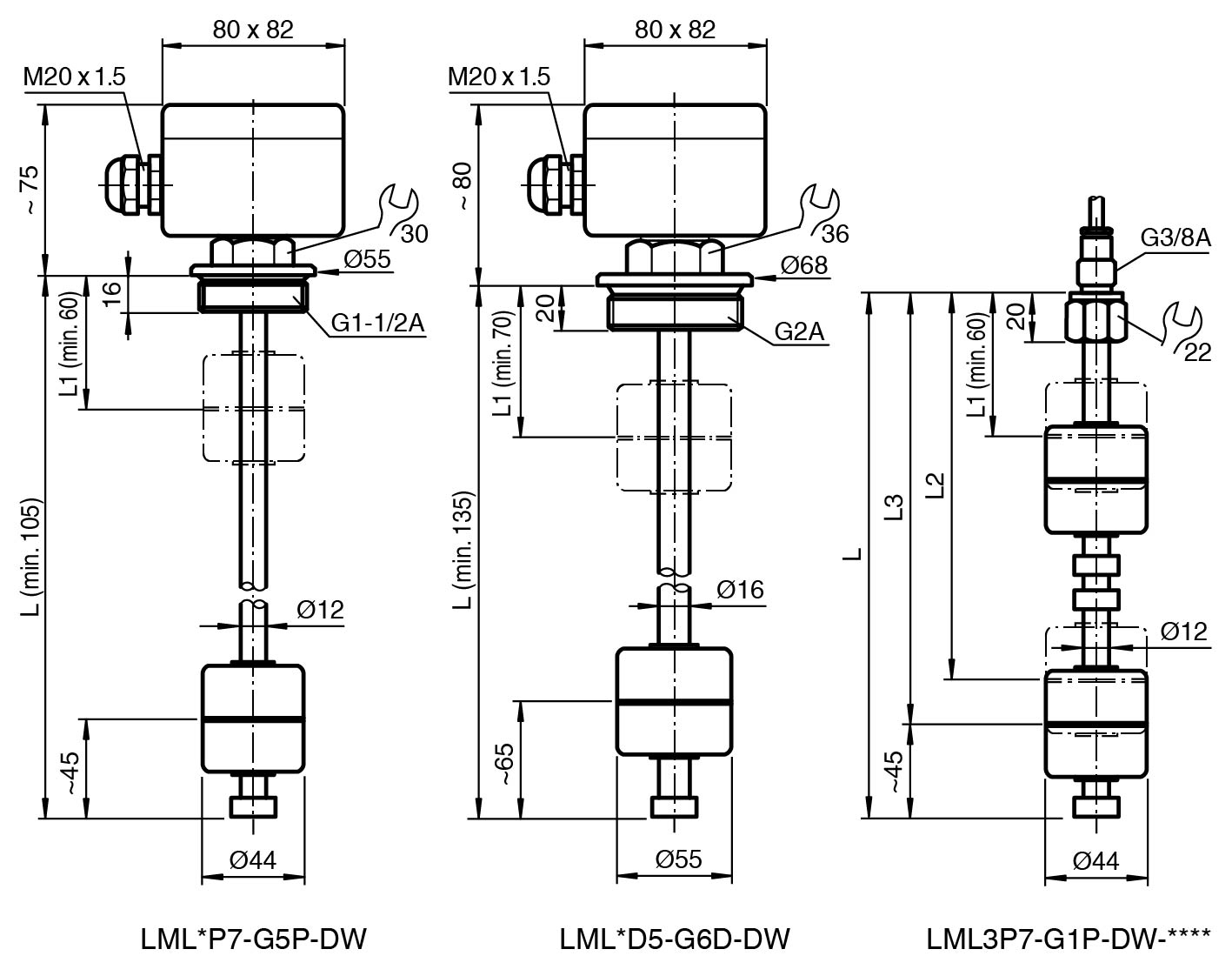

| Dimensions | float:- version PP: cylinder ∅44 mm x 44 mm- version PVDF: cylinder ∅55 mm x 70 mmguide tube:- version D: ∅12 mm, max. length 1000 mm- version P: ∅16 mm, max. length 1000 mm- other lengths on requestterminal box: 80 x 82 x 55 mm |
| Process connection | thread G3/8A, G1-1/2A, G2A to DIN/ISO 228/1 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
| Designation | - LML-Z21 set collar, PP- LML-Z22 set collar, PVDF - LML-FD5 float, cylinder, Ø55 mm x 70 mm, PVDF- LML-FP7 float, cylinder, Ø44 mm x 44 mm, PP |
