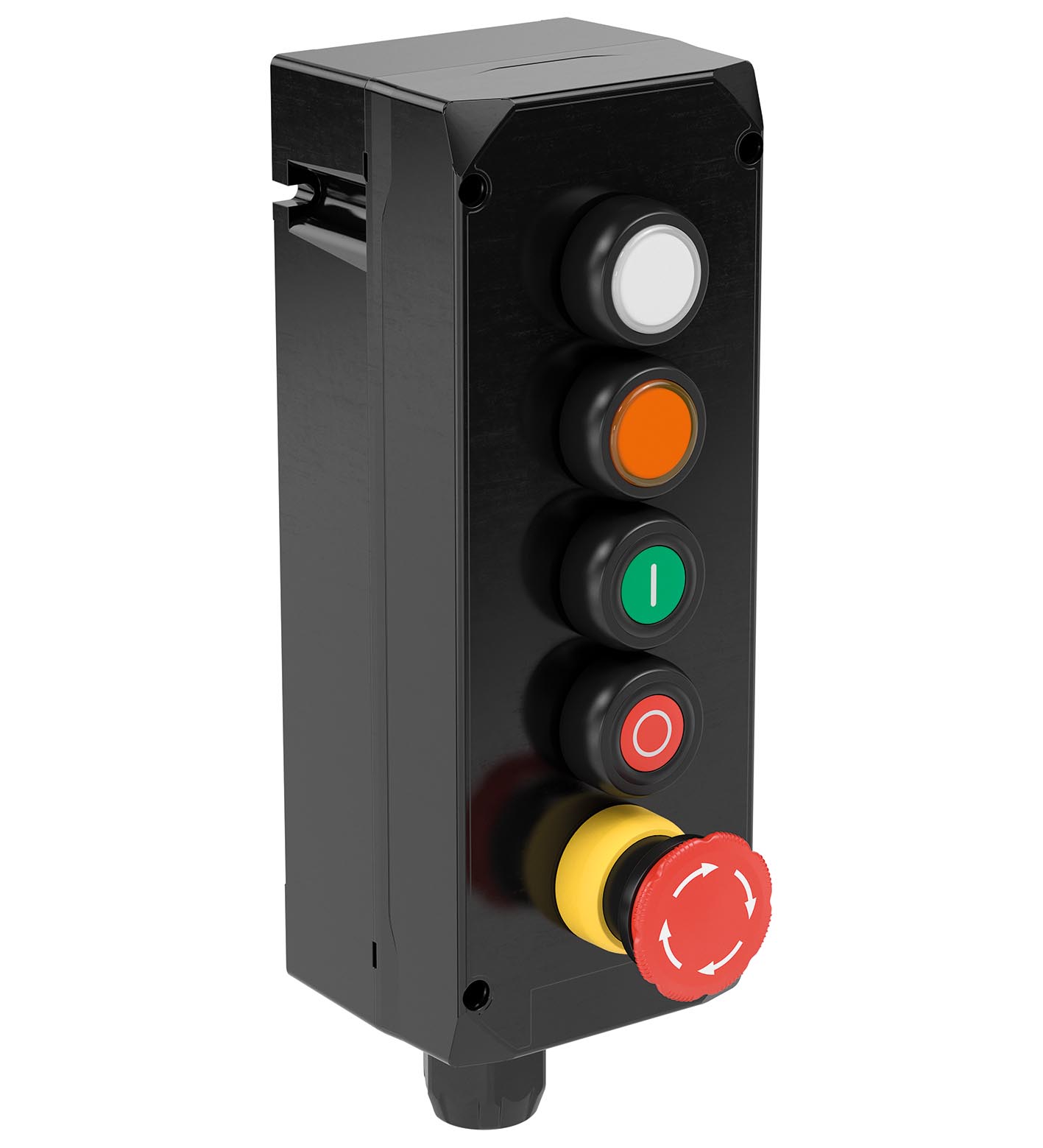

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 400 V max. |
|---|---|
| Operating current | 16 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |
| Function | see data table |
| Terminal torque | 0.8 Nm |
| Enclosure range | LRP |
| Enclosure cover | fully detachable |
| Cover fixing | Stainless steel A4 (V4A) combination pozi driv and slotted screw |
| ScrewsM4 stainless steel combination Phillips and slotted screwNumber4Tightening torque1.5 Nm | ScrewsM4 stainless steel combination Phillips and slotted screwNumber4Tightening torque1.5 Nm |
| Degree of protection | IP66 |
| Cable entry | cable glands as per specification |
| Number of cable entriessee data table | Number of cable entriessee data table |
| Defined entry area | face A and face B |
| Material | Material |
| EnclosurePolyamide (PA)Finishinherent color blackSealone piece closed cell silicone | EnclosurePolyamide (PA)Finishinherent color blackSealone piece closed cell silicone |
| Mass | see data table |
| Dimensions | see data table |
| Tightening torque | Tightening torque |
| Nut torque at enclosure (SW1)see datasheets of cable glands | Nut torque at enclosure (SW1)see datasheets of cable glands |
| Mounting | see data table |
| Grounding | 2x 2.5mm² grounding terminal |
| Screws | M4 stainless steel combination Phillips and slotted screw |
| Number | 4 |
| Tightening torque | 1.5 Nm |
| Number of cable entries | see data table |
| Enclosure | Polyamide (PA) |
| Finish | inherent color black |
| Seal | one piece closed cell silicone |
| Nut torque at enclosure (SW1) | see datasheets of cable glands |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) -50 °C (-58 °F) on request |
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking II 2 GD Ex db eb ib mb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C T6/T80 °C @ Ta +40 °C on request | Marking II 2 GD Ex db eb ib mb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C T6/T80 °C @ Ta +40 °C on request |
| Marking | II 2 GD Ex db eb ib mb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C T6/T80 °C @ Ta +40 °C on request |
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| ECAS approval | 24-11-132356/E24-11-137186/NB0002 |
| IA approval | MASC S/22-8362X |
| CCC approval | 2020322304002545 |
| Degree of protection | EN 60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 2829 |
| Order information | For standard configured units please see pdf datasheet. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label |
| Control elements | small footprint max. 5 see data table all NC contacts have a direct opening action for emergency stop functions |
