TECHNICAL DATA
规格参数
Electrical specifications

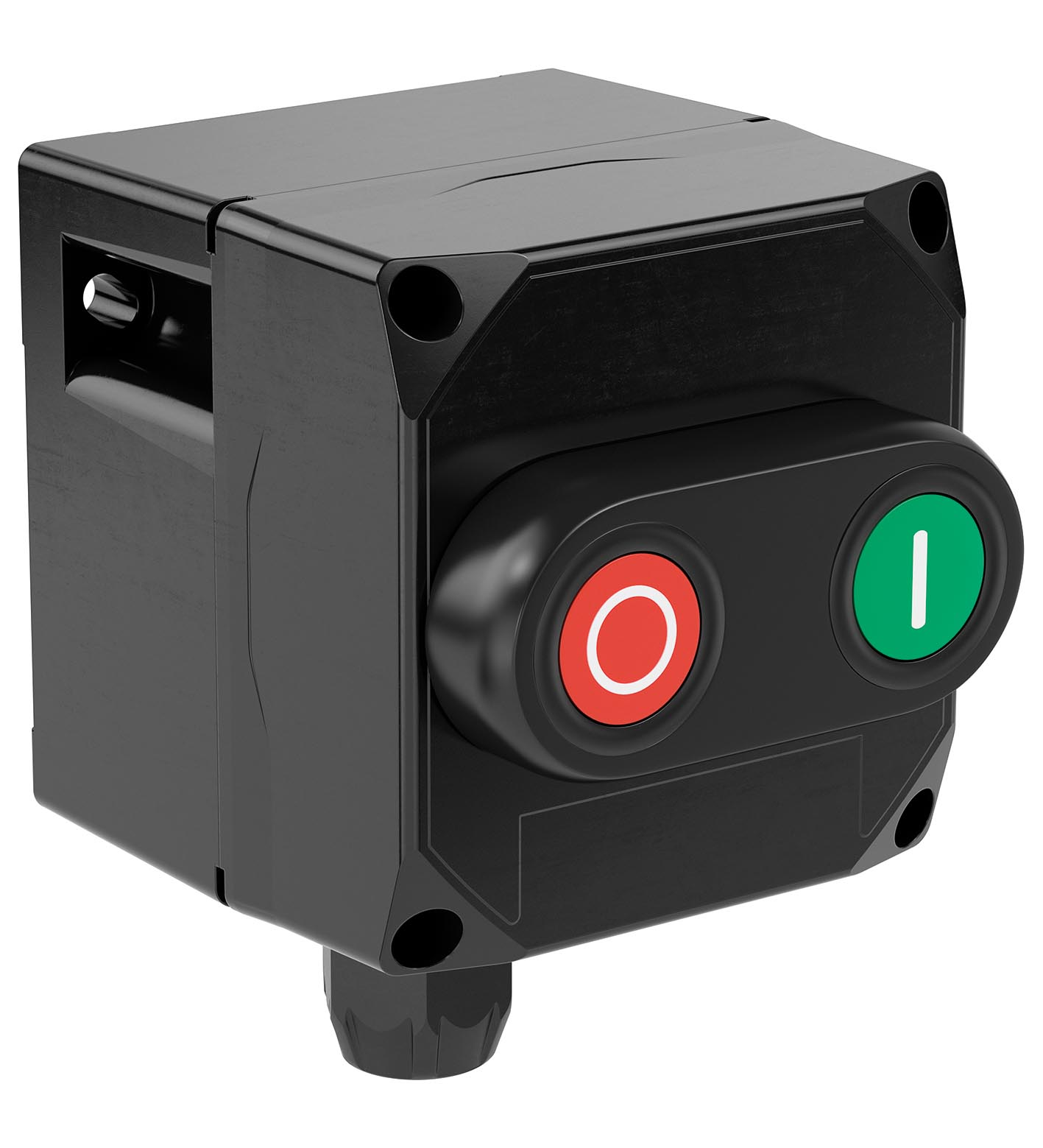

| Operating voltage | 250 V max. |
|---|---|
| Operating current | 13 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |
| Function | double pushbutton |
| Colorred / greenContact configuration1x NO / 1x NCUsage categoryAC12 - 12 … 250 V AC - 13 AAC15 - 12 … 250 V AC - 10 ADC13 - 12 … 110 V DC - 1 ANumber of poles2Operator actionspring returnLabeling0 - INotespare pushbutton inserts included: red 'STOP', red 'OFF', green 'START', green 'ON', black 'I", black 'II', 2x black 'arrow up' | Colorred / greenContact configuration1x NO / 1x NCUsage categoryAC12 - 12 … 250 V AC - 13 AAC15 - 12 … 250 V AC - 10 ADC13 - 12 … 110 V DC - 1 ANumber of poles2Operator actionspring returnLabeling0 - INotespare pushbutton inserts included: red 'STOP', red 'OFF', green 'START', green 'ON', black 'I", black 'II', 2x black 'arrow up' |
| Terminal torque | 0.8 Nm |
| Color | red / green |
| Contact configuration | 1x NO / 1x NC |
| Usage category | AC12 - 12 … 250 V AC - 13 AAC15 - 12 … 250 V AC - 10 ADC13 - 12 … 110 V DC - 1 A |
| Number of poles | 2 |
| Operator action | spring return |
| Labeling | 0 - I |
| Note | spare pushbutton inserts included: red 'STOP', red 'OFF', green 'START', green 'ON', black 'I", black 'II', 2x black 'arrow up' |
| Enclosure range | LRP |
| Enclosure cover | fully detachable |
| Cover fixing | Cover fixing |
| ScrewsM4 stainless steel combination Phillips and slotted screwNumber4Tightening torque1.5 Nm | ScrewsM4 stainless steel combination Phillips and slotted screwNumber4Tightening torque1.5 Nm |
| Degree of protection | IP66 |
| Cable entry | thru-holes direct through body |
| Cable entry face B | Cable entry face B |
| M20 quantity1M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 ... 12 mm | M20 quantity1M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 ... 12 mm |
| Defined entry area | face B |
| Material | Material |
| EnclosurePolyamide (PA)Finishinherent color blackSealone piece closed cell silicone | EnclosurePolyamide (PA)Finishinherent color blackSealone piece closed cell silicone |
| Mass | approx. 0.44 kg |
| Dimensions | Dimensions |

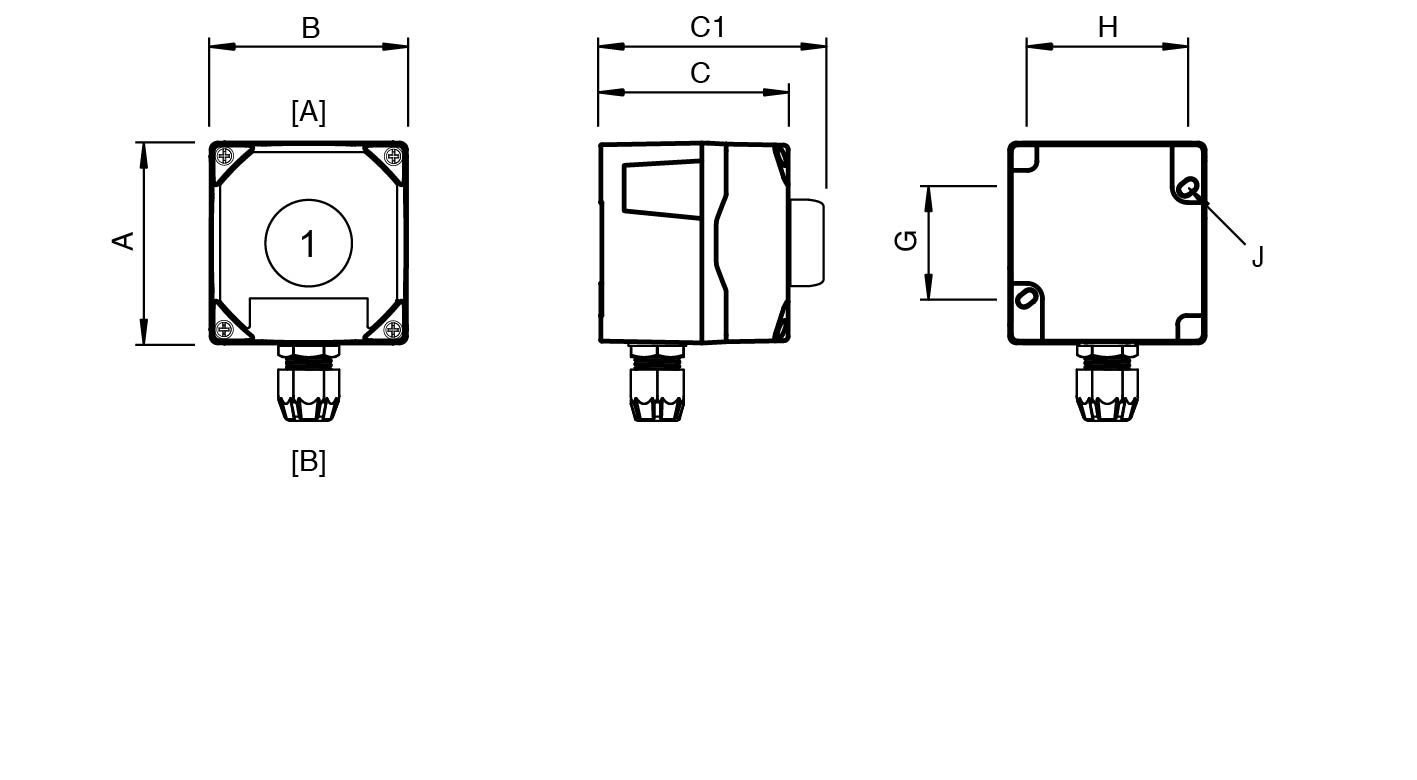

| External dimension (A)90 mmExternal dimension (B)88 mmExternal dimension (C)85 mmExternal dimension with operating element (C1)100.5 mmMounting holes distance (G)50 mmMounting holes distance (H)72.5 mmMounting holes diameter (J)5.6 mm | External dimension (A)90 mmExternal dimension (B)88 mmExternal dimension (C)85 mmExternal dimension with operating element (C1)100.5 mmMounting holes distance (G)50 mmMounting holes distance (H)72.5 mmMounting holes diameter (J)5.6 mm |
| Tightening torque | Tightening torque |
| Nut torque at enclosure (SW1)see datasheets of cable glands | Nut torque at enclosure (SW1)see datasheets of cable glands |
| Mounting | 2 screws |
| Grounding | 2x 2.5mm² grounding terminal |
| Screws | M4 stainless steel combination Phillips and slotted screw |
| Number | 4 |
| Tightening torque | 1.5 Nm |
| M20 quantity | 1 |
| M20 series | Cable Glands, Plastic |
| M20 type | CG.PEDS1.M20.* |
| M20 clamping range | 6 ... 12 mm |
| Enclosure | Polyamide (PA) |
| Finish | inherent color black |
| Seal | one piece closed cell silicone |
| External dimension (A) | 90 mm |
| External dimension (B) | 88 mm |
| External dimension (C) | 85 mm |
| External dimension with operating element (C1) | 100.5 mm |
| Mounting holes distance (G) | 50 mm |
| Mounting holes distance (H) | 72.5 mm |
| Mounting holes diameter (J) | 5.6 mm |
| Nut torque at enclosure (SW1) | see datasheets of cable glands |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) @ T4 -40 ... 40 °C (-40 ... 104 °F) @ T6 |
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ) | Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ) |
| Marking | II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ) |
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| Further approvals | further on request |
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label |
