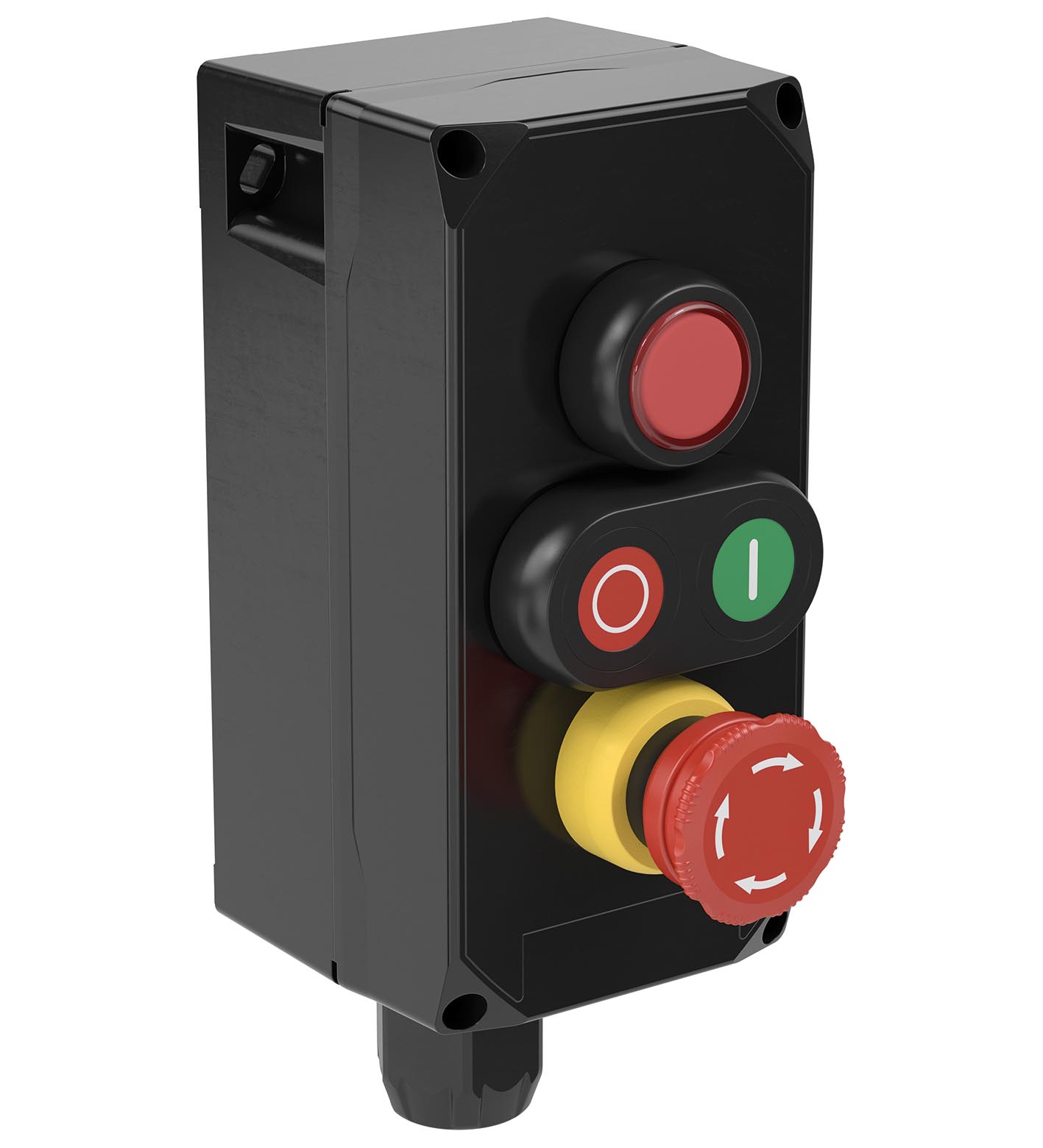

TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 250 V max. |
|---|---|
| Operating current | 6 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |
| Function | LED |
| ColorredRated operating voltage30 ... 250 V AC / 20 ... 24 V DC | ColorredRated operating voltage30 ... 250 V AC / 20 ... 24 V DC |
| Function 2 | double pushbutton |
| Colorred / greenContact configuration1x NO / 1x NCUsage categoryAC12 - 12 … 250 V AC - 6 AAC15 - 12 … 250 V AC - 6 ADC13 - 12 … 110 V DC - 1 ANumber of poles2Operator actionspring returnLabeling0 - lNotespare pushbutton inserts included: red '0', green 'I', black '0', black 'I', black 'II', black 'arrow up', black 'arrow down' | Colorred / greenContact configuration1x NO / 1x NCUsage categoryAC12 - 12 … 250 V AC - 6 AAC15 - 12 … 250 V AC - 6 ADC13 - 12 … 110 V DC - 1 ANumber of poles2Operator actionspring returnLabeling0 - lNotespare pushbutton inserts included: red '0', green 'I', black '0', black 'I', black 'II', black 'arrow up', black 'arrow down' |
| Function 3 | mushroom button |
| ColorredContact configuration1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12 - 12 … 250 V AC - 6 AAC15 - 12 … 250 V AC - 6 ADC13 - 12 … 110 V DC - 1 ANumber of poles2Operator actionlatching , twist to release | ColorredContact configuration1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12 - 12 … 250 V AC - 6 AAC15 - 12 … 250 V AC - 6 ADC13 - 12 … 110 V DC - 1 ANumber of poles2Operator actionlatching , twist to release |
| Terminal torque | 0.8 Nm |
| Color | red |
| Rated operating voltage | 30 ... 250 V AC / 20 ... 24 V DC |
| Color | red / green |
| Contact configuration | 1x NO / 1x NC |
| Usage category | AC12 - 12 … 250 V AC - 6 AAC15 - 12 … 250 V AC - 6 ADC13 - 12 … 110 V DC - 1 A |
| Number of poles | 2 |
| Operator action | spring return |
| Labeling | 0 - l |
| Note | spare pushbutton inserts included: red '0', green 'I', black '0', black 'I', black 'II', black 'arrow up', black 'arrow down' |
| Color | red |
| Contact configuration | 1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functions |
| Usage category | AC12 - 12 … 250 V AC - 6 AAC15 - 12 … 250 V AC - 6 ADC13 - 12 … 110 V DC - 1 A |
| Number of poles | 2 |
| Operator action | latching , twist to release |
| Enclosure range | LRP |
| Enclosure cover | fully detachable |
| Cover fixing | Cover fixing |
| ScrewsM4 stainless steel combination Phillips and slotted screwNumber4Tightening torque1.5 Nm | ScrewsM4 stainless steel combination Phillips and slotted screwNumber4Tightening torque1.5 Nm |
| Degree of protection | IP66 |
| Cable entry | thru-holes |
| Cable entry face A | Cable entry face A |
| M25 quantity1M25 seriesStopping PlugM25 typeSP.PE.M25.* | M25 quantity1M25 seriesStopping PlugM25 typeSP.PE.M25.* |
| Cable entry face B | Cable entry face B |
| M25 quantity1M25 seriesCable Glands, PlasticM25 typeCG.PEDS1.M25.*M25 clamping range9 ... 17 mm | M25 quantity1M25 seriesCable Glands, PlasticM25 typeCG.PEDS1.M25.*M25 clamping range9 ... 17 mm |
| Defined entry area | face A and face B |
| Material | Material |
| EnclosurePolyamide (PA)Finishinherent color blackSealone piece closed cell silicone | EnclosurePolyamide (PA)Finishinherent color blackSealone piece closed cell silicone |
| Mass | approx. 0.9 kg |

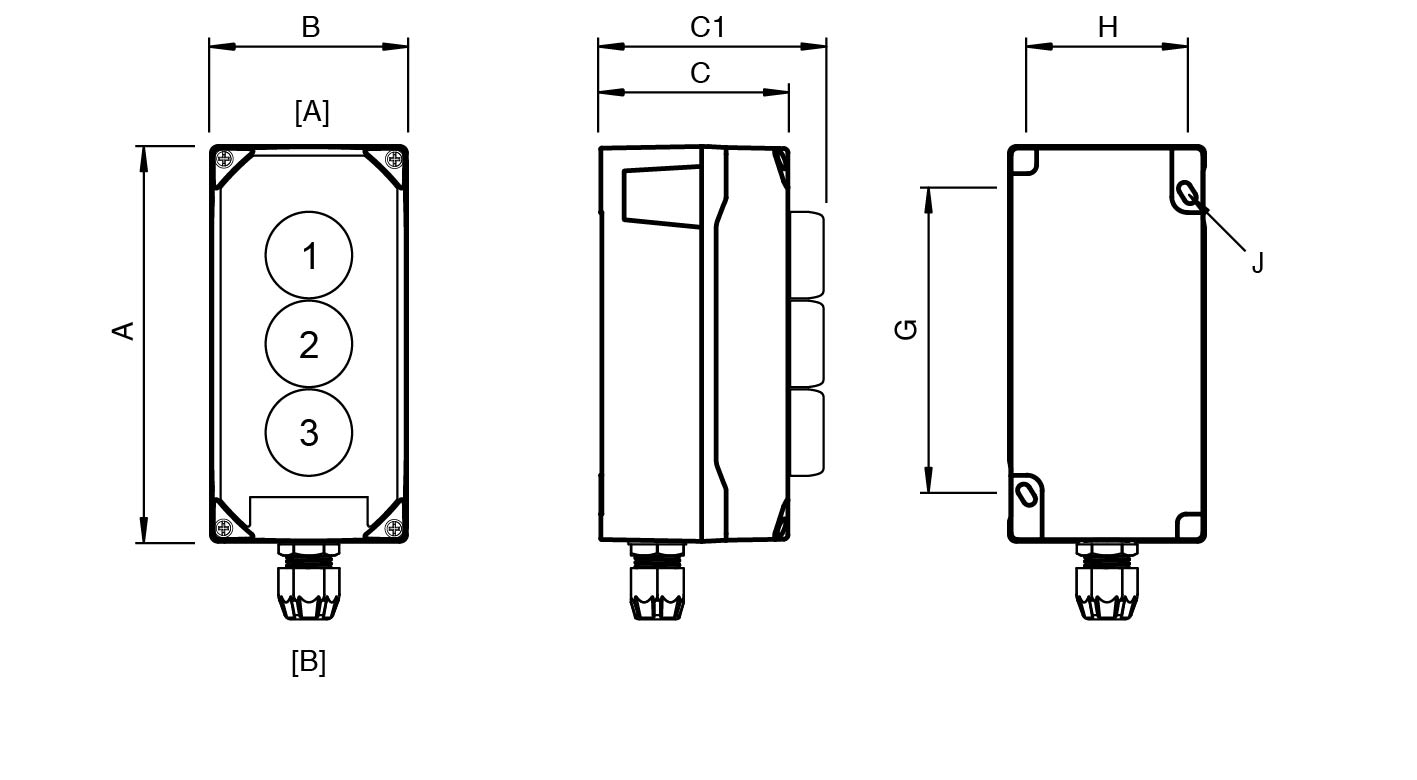

| Dimensions | Dimensions |
| External dimension (A)178 mmExternal dimension (B)88 mmExternal dimension (C)85 mmExternal dimension with operating element (C1)125.4 mmMounting holes distance (G)136 mmMounting holes distance (H)72.5 mmMounting holes diameter (J)5.6 mm | External dimension (A)178 mmExternal dimension (B)88 mmExternal dimension (C)85 mmExternal dimension with operating element (C1)125.4 mmMounting holes distance (G)136 mmMounting holes distance (H)72.5 mmMounting holes diameter (J)5.6 mm |
| Tightening torque | Tightening torque |
| Nut torque at enclosure (SW1)see datasheets of cable glands | Nut torque at enclosure (SW1)see datasheets of cable glands |
| Mounting | 2 screws |
| Grounding | 2x 2.5mm² grounding terminal |
| Screws | M4 stainless steel combination Phillips and slotted screw |
| Number | 4 |
| Tightening torque | 1.5 Nm |
| M25 quantity | 1 |
| M25 series | Stopping Plug |
| M25 type | SP.PE.M25.* |
| M25 quantity | 1 |
| M25 series | Cable Glands, Plastic |
| M25 type | CG.PEDS1.M25.* |
| M25 clamping range | 9 ... 17 mm |
| Enclosure | Polyamide (PA) |
| Finish | inherent color black |
| Seal | one piece closed cell silicone |
| External dimension (A) | 178 mm |
| External dimension (B) | 88 mm |
| External dimension (C) | 85 mm |
| External dimension with operating element (C1) | 125.4 mm |
| Mounting holes distance (G) | 136 mm |
| Mounting holes distance (H) | 72.5 mm |
| Mounting holes diameter (J) | 5.6 mm |
| Nut torque at enclosure (SW1) | see datasheets of cable glands |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) @ T4 -40 ... 40 °C (-40 ... 104 °F) @ T6 |
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ) | Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ) |
| Marking | II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ) |
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| Further approvals | further on request |
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label |
