TECHNICAL DATA
规格参数
Electrical specifications
| Operating voltage | 250 V max. |
|---|---|
| Operating current | 13 A max. |
| Terminal capacity | 2.5 mm2 |
| Terminal torque0.8 Nm | Terminal torque0.8 Nm |

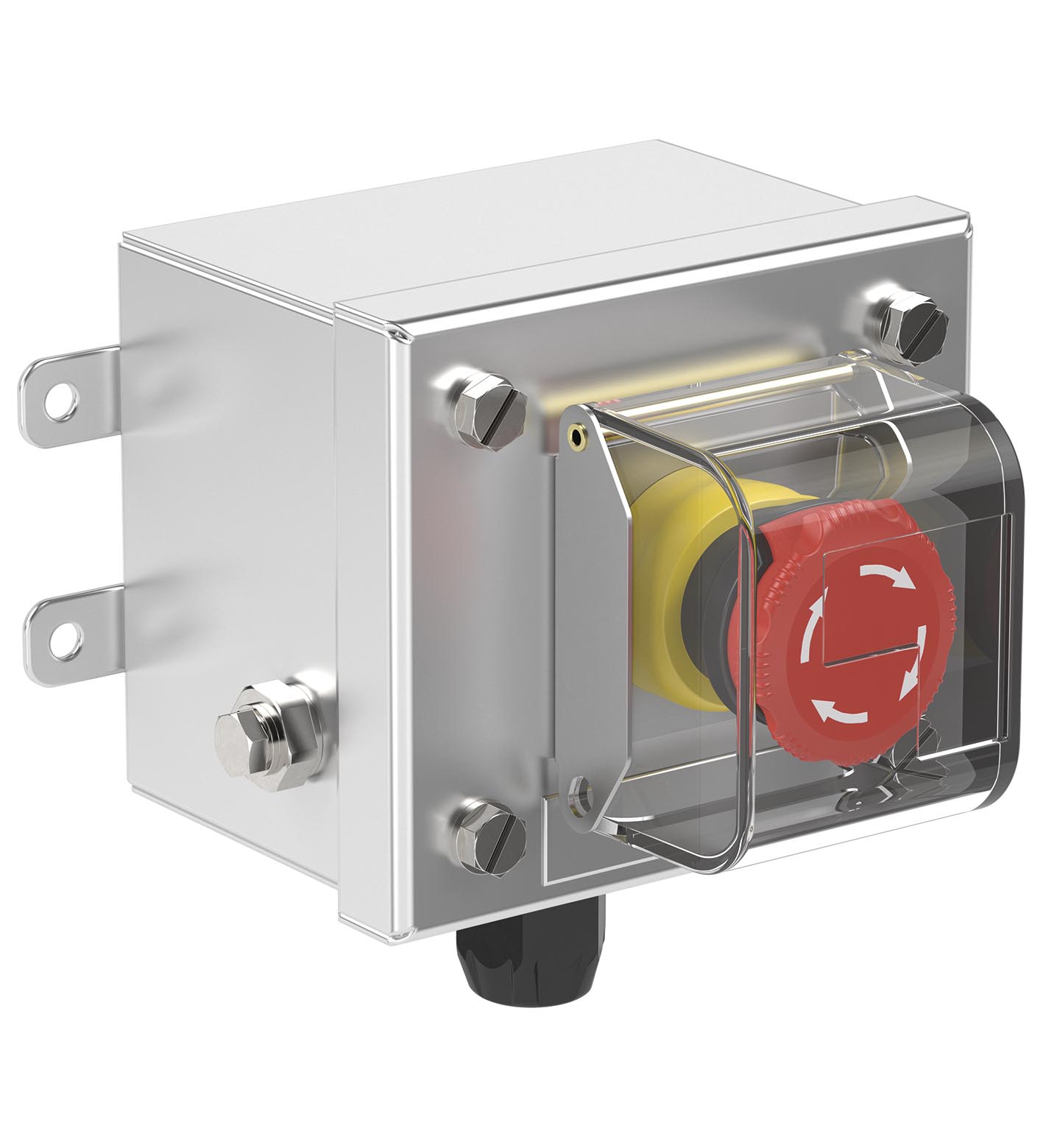

| Function | mushroom button |
| ColorredShroudplastic lidContact configuration1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12 - 12 … 250 V AC - 13 AAC15 - 12 … 250 V AC - 10 ADC13 - 12 … 110 V DC - 1 ANumber of poles2Operator actionlatching , twist to releaseLabelingnone as standard | ColorredShroudplastic lidContact configuration1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functionsUsage categoryAC12 - 12 … 250 V AC - 13 AAC15 - 12 … 250 V AC - 10 ADC13 - 12 … 110 V DC - 1 ANumber of poles2Operator actionlatching , twist to releaseLabelingnone as standard |
| Terminal torque | 0.8 Nm |
| Color | red |
| Shroud | plastic lid |
| Contact configuration | 1x NO / 1x NC all NC contacts have a direct opening action for emergency stop functions |
| Usage category | AC12 - 12 … 250 V AC - 13 AAC15 - 12 … 250 V AC - 10 ADC13 - 12 … 110 V DC - 1 A |
| Number of poles | 2 |
| Operator action | latching , twist to release |
| Labeling | none as standard |
| Enclosure range | SR |
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel A4 (V4A) hexagonal head screws |
| ScrewsM6Number4Tightening torque3 Nm - 3.5 Nm | ScrewsM6Number4Tightening torque3 Nm - 3.5 Nm |
| Degree of protection | IP66 |
| Cable entry | thru-holes direct through body |
| Cable entry face B | Cable entry face B |
| M20 quantity1M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 ... 12 mm | M20 quantity1M20 seriesCable Glands, PlasticM20 typeCG.PEDS1.M20.*M20 clamping range6 ... 12 mm |
| Defined entry area | face B |
| Material | Material |
| Enclosure1.5 mm AISI 316L, (1.4404) stainless steelFinishbrushedSealone piece closed cell silicone | Enclosure1.5 mm AISI 316L, (1.4404) stainless steelFinishbrushedSealone piece closed cell silicone |
| Mass | approx. 0.7 kg |

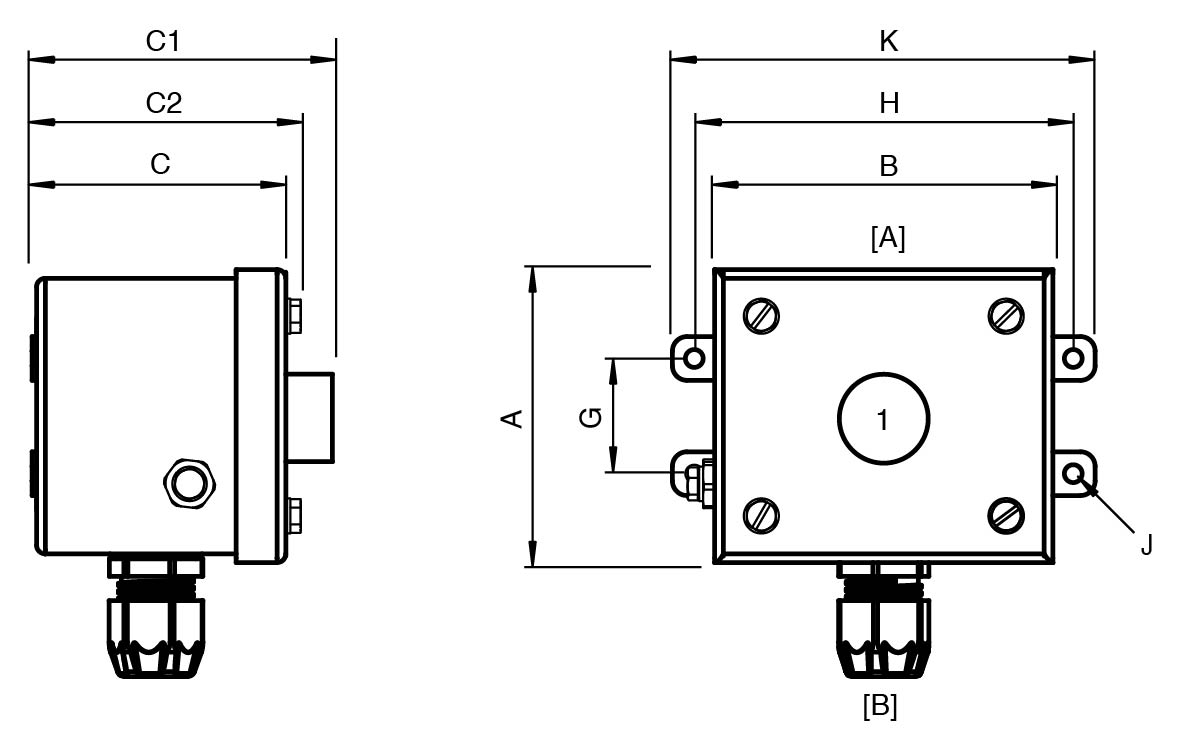

| Dimensions | Dimensions |
| External dimension (A)102 mmExternal dimension (B)116 mmExternal dimension (C)87 mmExternal dimension with operating element (C1)137 mmExternal dimension with screws (C2)92 mmMounting holes distance (G)41 mmMounting holes distance (G1)Mounting holes distance (G2)Mounting holes distance (H)130 mmMounting holes diameter (J)6.1 mmThickness of mounting brackets (N)1.5 mmMaximum external dimension (K)145 mm | External dimension (A)102 mmExternal dimension (B)116 mmExternal dimension (C)87 mmExternal dimension with operating element (C1)137 mmExternal dimension with screws (C2)92 mmMounting holes distance (G)41 mmMounting holes distance (G1)Mounting holes distance (G2)Mounting holes distance (H)130 mmMounting holes diameter (J)6.1 mmThickness of mounting brackets (N)1.5 mmMaximum external dimension (K)145 mm |
| Tightening torque | Tightening torque |
| Nut torque at enclosure (SW1)see datasheets of cable glands | Nut torque at enclosure (SW1)see datasheets of cable glands |
| Mounting | 4 screws |
| Grounding | M6 internal/external brass nickel-plated grounding bolt |
| Screws | M6 |
| Number | 4 |
| Tightening torque | 3 Nm - 3.5 Nm |
| M20 quantity | 1 |
| M20 series | Cable Glands, Plastic |
| M20 type | CG.PEDS1.M20.* |
| M20 clamping range | 6 ... 12 mm |
| Enclosure | 1.5 mm AISI 316L, (1.4404) stainless steel |
| Finish | brushed |
| Seal | one piece closed cell silicone |
| External dimension (A) | 102 mm |
| External dimension (B) | 116 mm |
| External dimension (C) | 87 mm |
| External dimension with operating element (C1) | 137 mm |
| External dimension with screws (C2) | 92 mm |
| Mounting holes distance (G) | 41 mm |
| Mounting holes distance (G1) | Mounting holes distance (G1) |
| Mounting holes distance (G2) | Mounting holes distance (G2) |
| Mounting holes distance (H) | 130 mm |
| Mounting holes diameter (J) | 6.1 mm |
| Thickness of mounting brackets (N) | 1.5 mm |
| Maximum external dimension (K) | 145 mm |
| Nut torque at enclosure (SW1) | see datasheets of cable glands |
| Ambient temperature | -40 ... 55 °C (-40 ... 131 °F) @ T4 -40 ... 40 °C (-40 ... 104 °F) @ T6 |
| EU-type examination certificate | CML 16 ATEX 3009X |
| Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ) | Marking II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ) |
| Marking | II 2 GD Ex db eb IIC T* Gb Ex tb IIIC T** °C Db T4/T130 °C @ Ta +55 °C ( T6/T80 °C @ Ta +40 °C on request ) |
| IECEx approval | IECEx CML 16.0008X |
| UKCA approval | CML 22 UKEX 2550X |
| Further approvals | further on request |
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0080 or 0102, see type label |
| Order information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
| Optional accessories | engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label M6 internal/external stainless steel grounding bolt |
