M-LB-2.150.T3.M

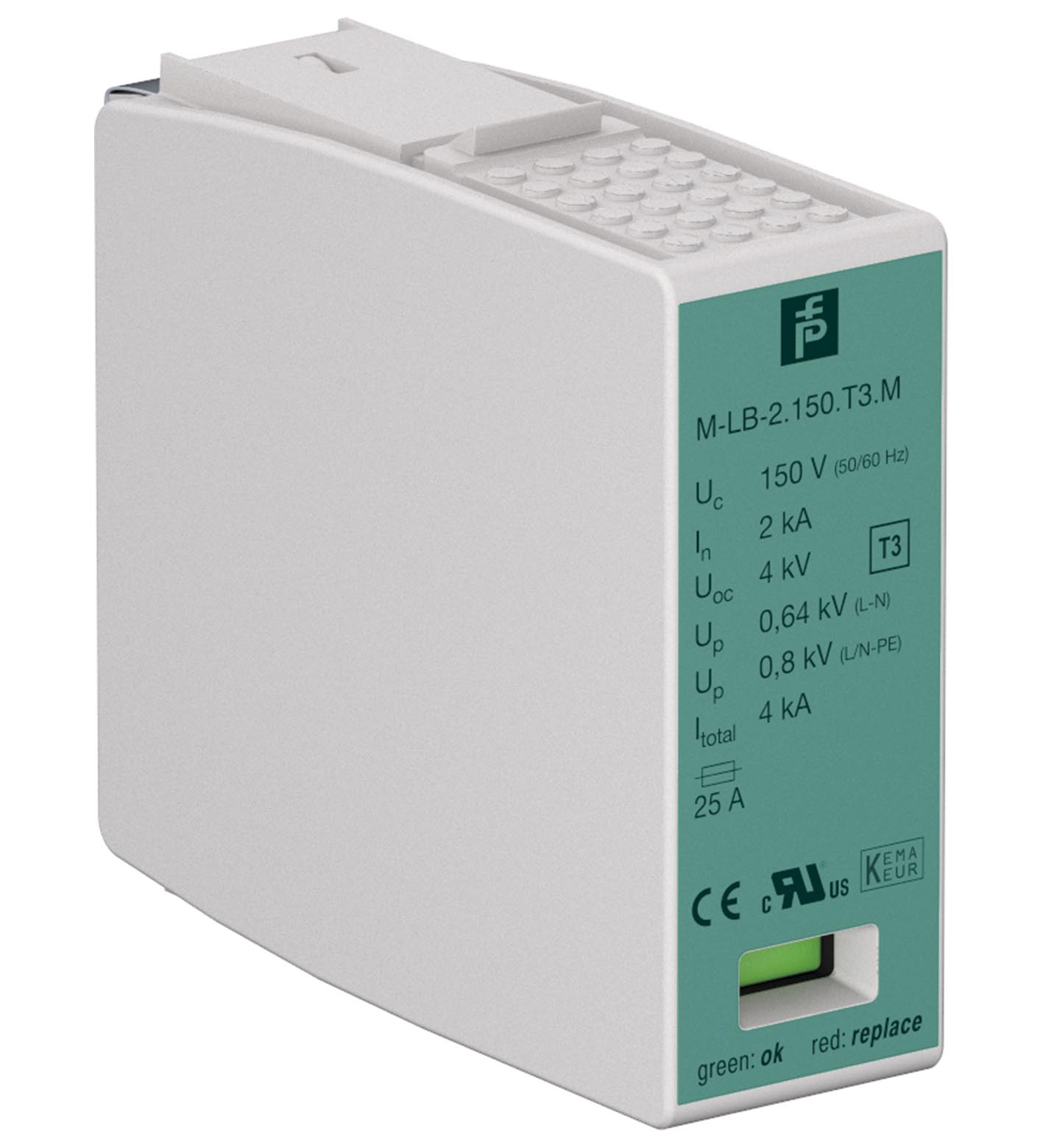

M-LB-2.150.T3.M Protection Module for Surge Protection Barrier

Protection Module for Surge Protection Barrier

TECHNICAL DATA

规格参数

General specifications

Device type	Type 3 acc. to EN 61643-11 Class III acc. to IEC 61643-11
Number of protected supply lines	1
Maximum continuous operating voltage	150 V AC 150 V DC
Nominal load current	25 A
Nominal discharge current (8/20 µs)	2 kA
Max. surge current (8/20 µs)	4 kA
Display elements	status display operating state (green)fault indication (red)
Low voltage	Low voltage
Directive 2014/35/EUEN 61643-11:2012	Directive 2014/35/EUEN 61643-11:2012
Directive 2014/35/EU	EN 61643-11:2012
Degree of protection	IEC 60529:2013
Shock resistance	EN 60068-2:2010
Vibration resistance	EN 60068-2:2010
Ambient temperature	-40 ... 80 °C (-40 ... 176 °F)
Degree of protection	IP20
Material	Material
Housingthermoplastic, color grey , UL 94 V-0	Housingthermoplastic, color grey , UL 94 V-0
Mass	approx. 50 g

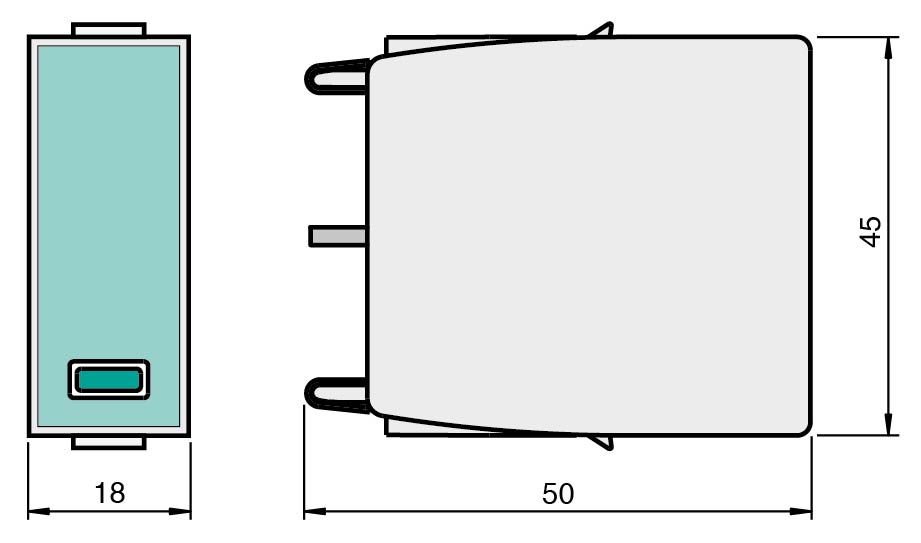

Dimensions	18 x 45 x 50 mm (0.7 x 1.8 x 2 inch) (W x H x D) , 1 TE acc. to DIN 43880
Mounting	in the surge protection barrier M-LB-.**.
Housing	thermoplastic, color grey , UL 94 V-0
UL approval	E346845
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
