TECHNICAL DATA
规格参数
General specifications
| Device type | Type 3 acc. to EN 61643-11 Class III acc. to IEC 61643-11 |
|---|---|
| Number of protected supply lines | 1 |
| Maximum continuous operating voltage | 30 V AC 30 V DC |
| Nominal load current | 25 A |
| Nominal discharge current (8/20 µs) | 1 kA |
| Max. surge current (8/20 µs) | 2 kA |
| Display elements | status display operating state (green)fault indication (red) |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61643-11:2012 | Directive 2014/35/EUEN 61643-11:2012 |
| Directive 2014/35/EU | EN 61643-11:2012 |
| Degree of protection | IEC 60529:2013 |
| Shock resistance | EN 60068-2:2010 |
| Vibration resistance | EN 60068-2:2010 |
| Ambient temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Degree of protection | IP20 |
| Material | Material |
| Housingthermoplastic, color grey , UL 94 V-0 | Housingthermoplastic, color grey , UL 94 V-0 |
| Mass | approx. 50 g |

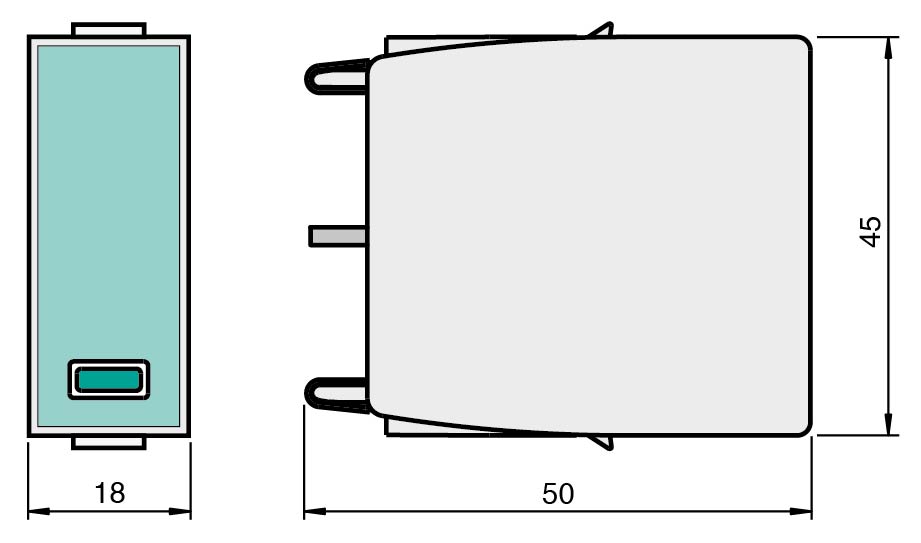

| Dimensions | 18 x 45 x 50 mm (0.7 x 1.8 x 2 inch) (W x H x D) , 1 TE acc. to DIN 43880 |
| Mounting | in the surge protection barrier M-LB-*.****.* |
| Housing | thermoplastic, color grey , UL 94 V-0 |
| UL approval | E346845 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
